70 hp / 52kW
Pezzolato PTH 40.70
Meet the Machine

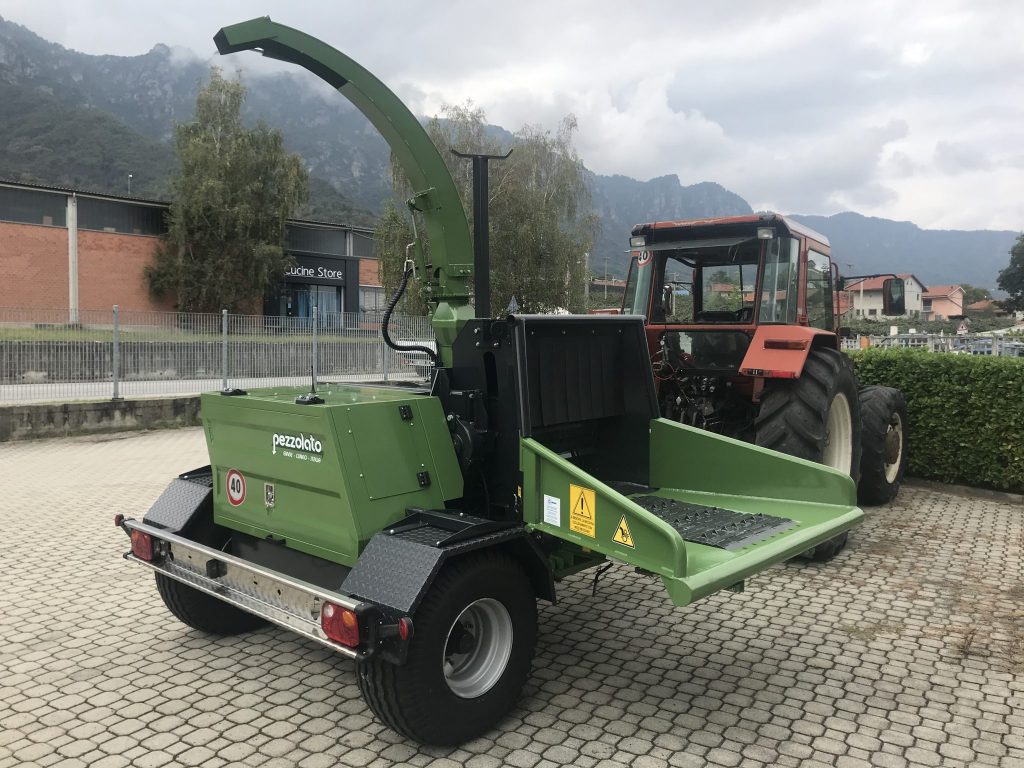

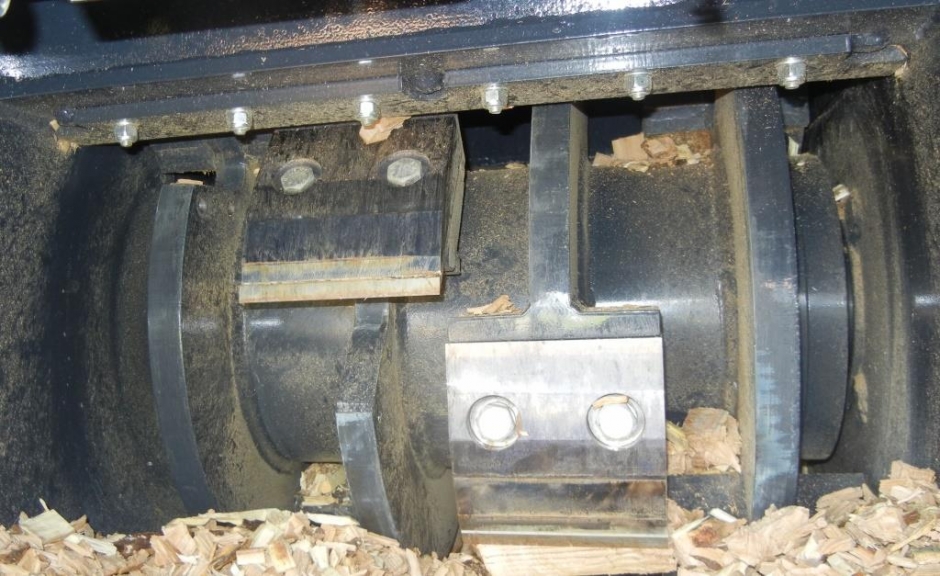

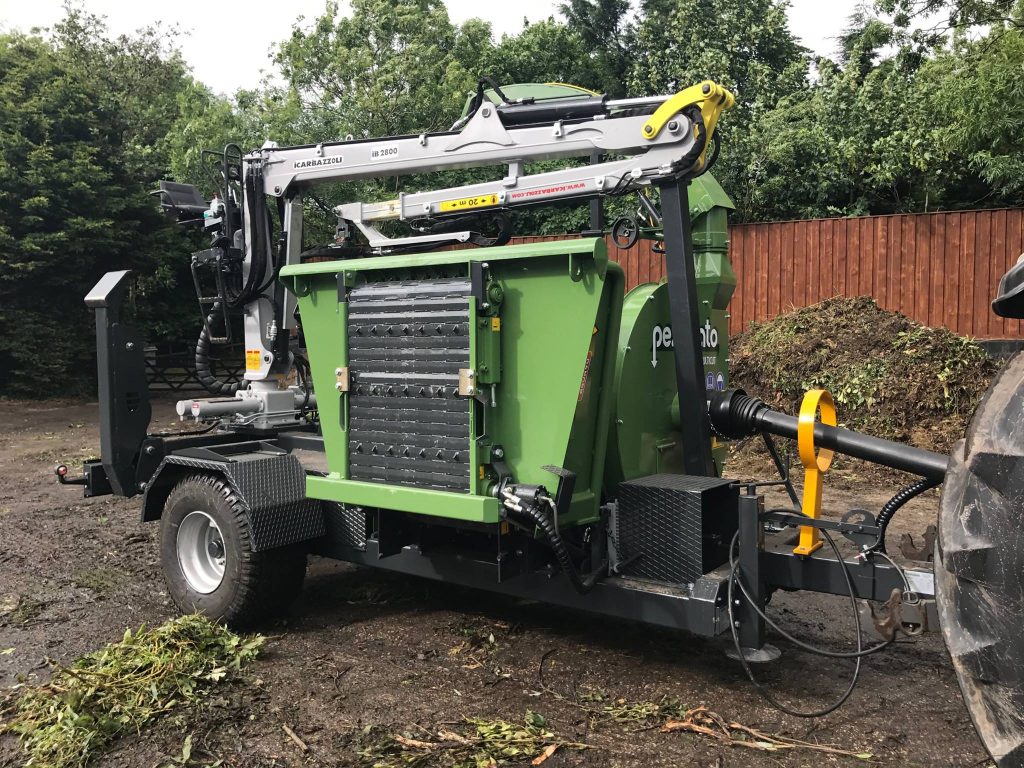

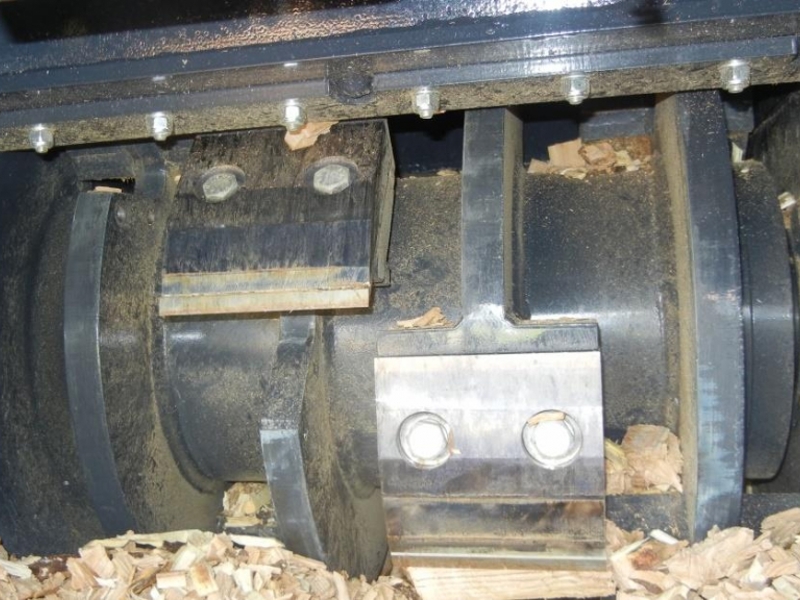

A chipper with an open or closed drum depending on the need. The machine has the sturdy structure of Pezzolato chippers, guaranteeing reliability and excellent performance.

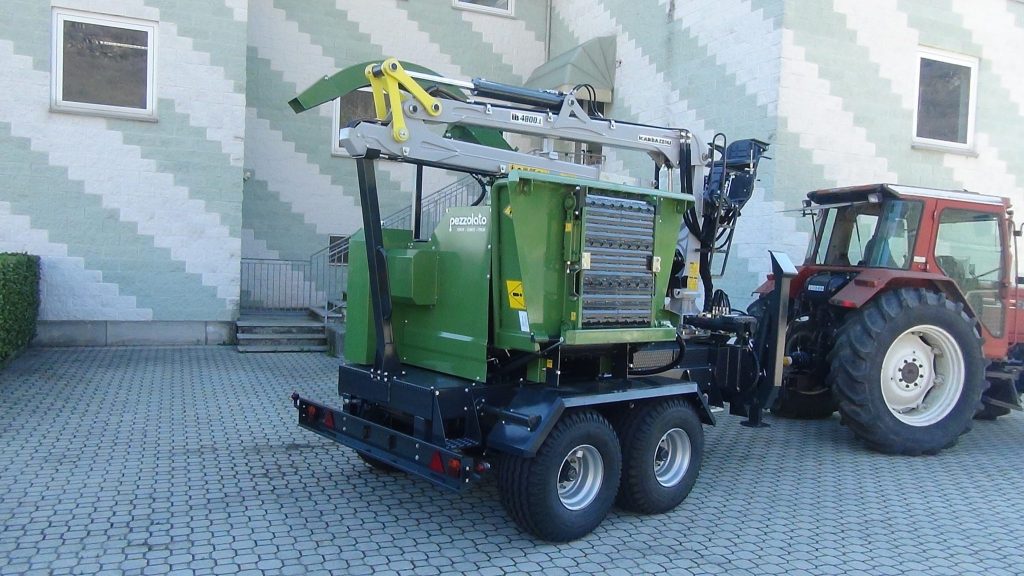

It can be can be driven by tractor’s PTO or by autonomous engine.

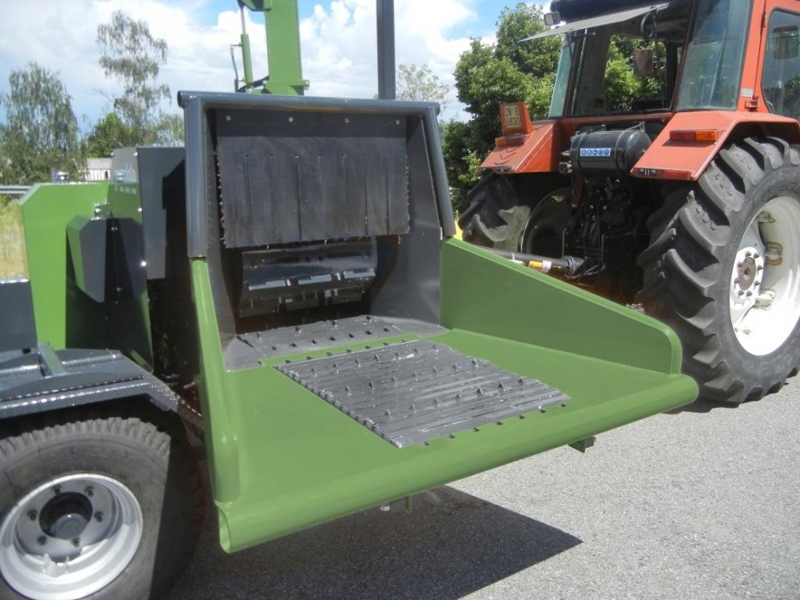

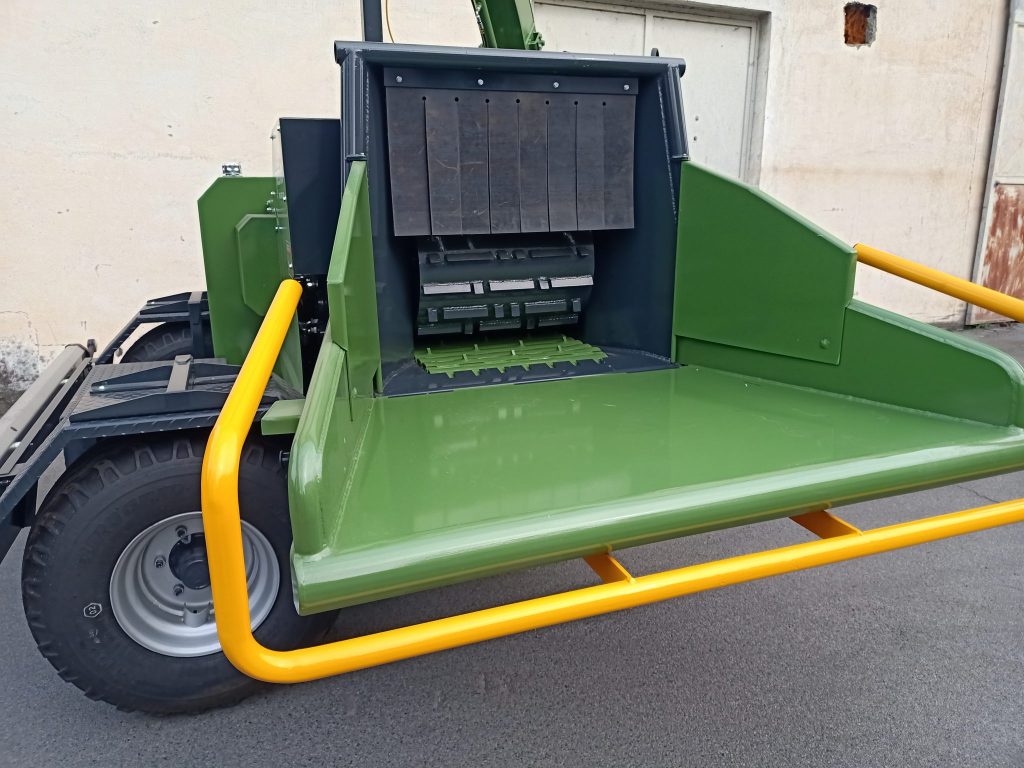

The width of the loading chute allows to easily feed large volumes of material, also when using mechanical means (the opening is 640 x 400mm). For manual feeding the chipper is equipped with a sturdy safety bar that keeps the operator safe during use
Description

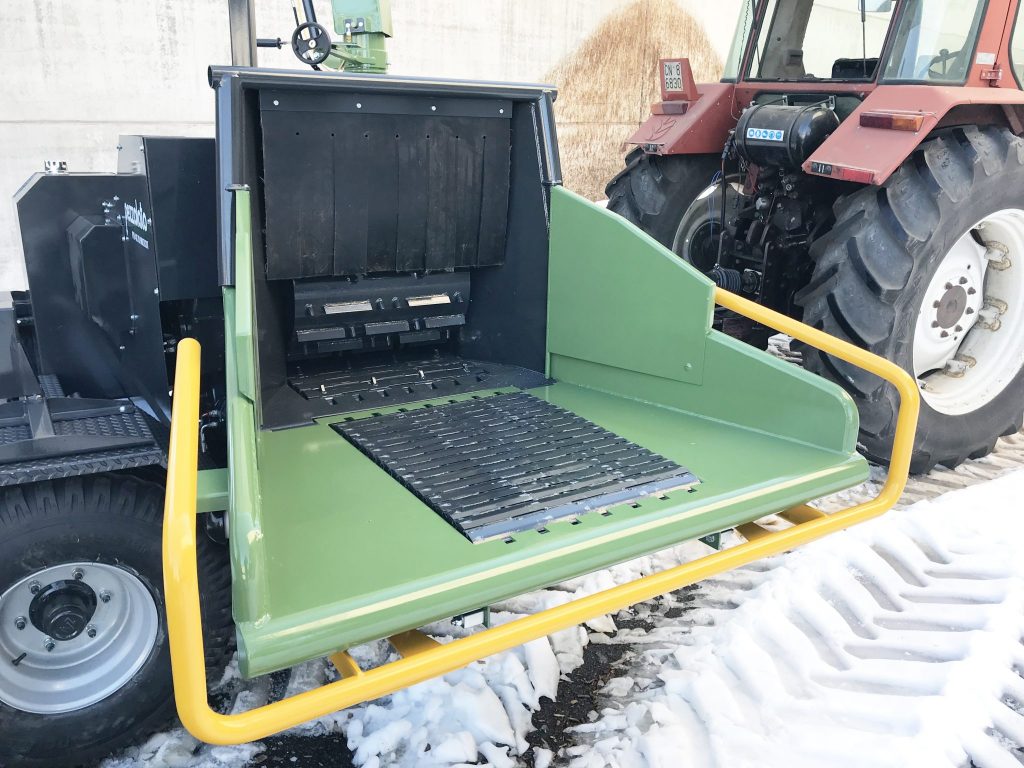

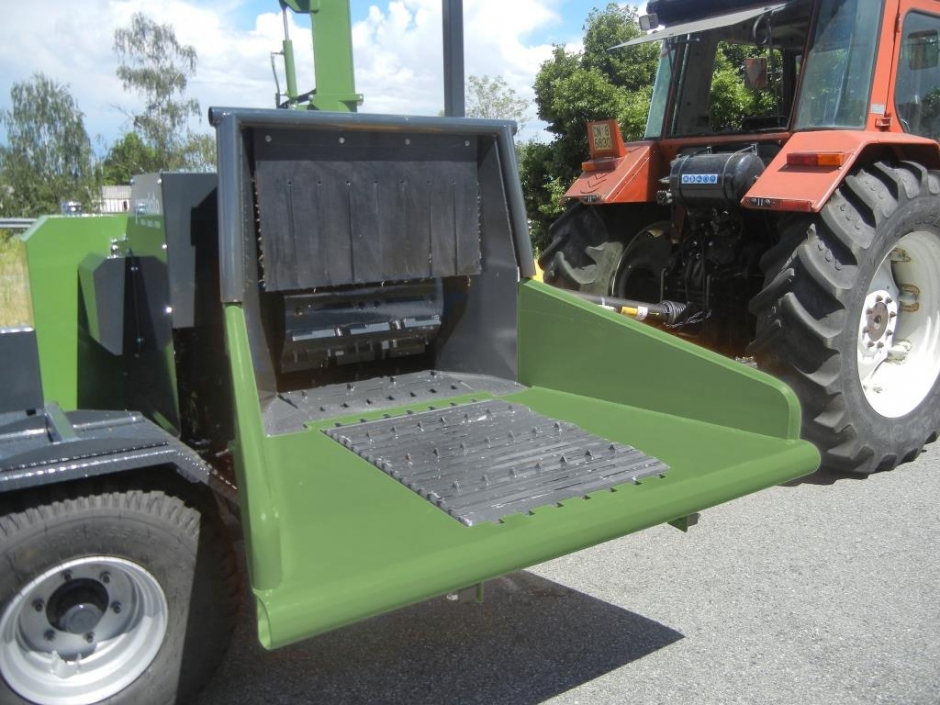

A large horizontal roller with hooks, aided by a feed conveyor inside the hopper (on request a second feed conveyor can be supplied for the hopper tipper), allows material to be easily fed into the machine. The interchangeable calibration grid allows the option to choose the dimensions of the chips and ensures that they are uniform and even.

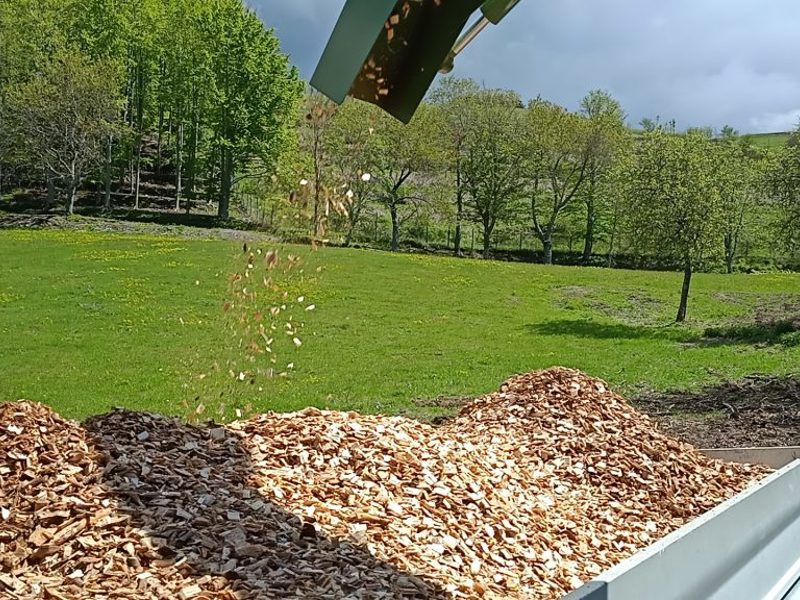

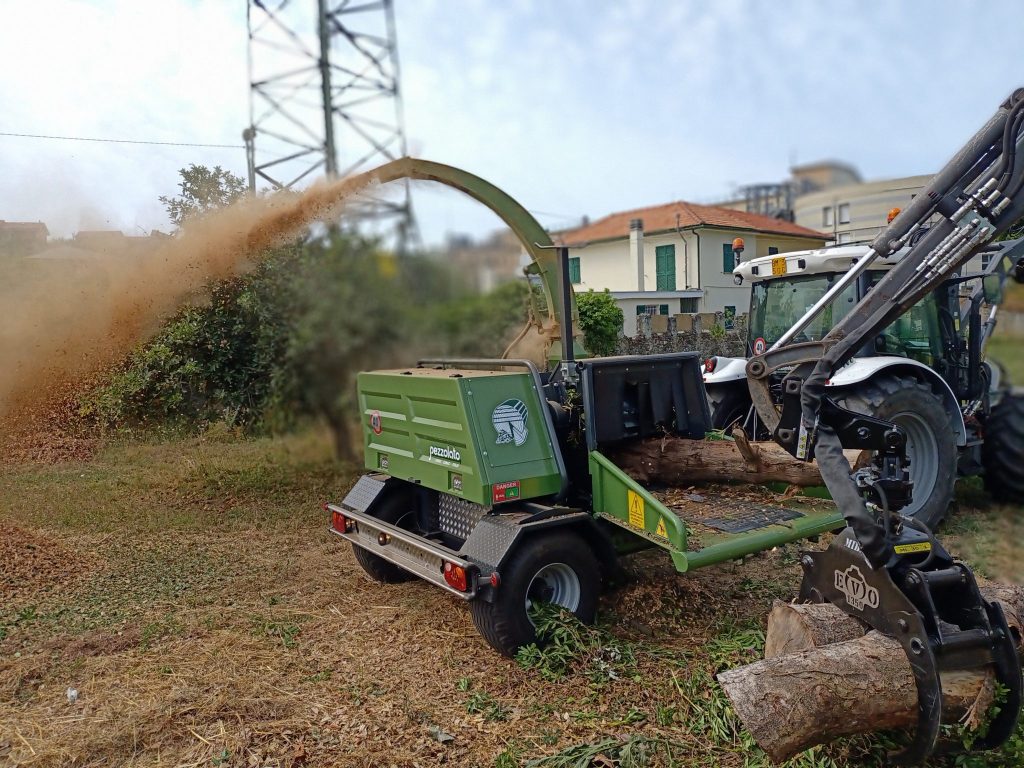

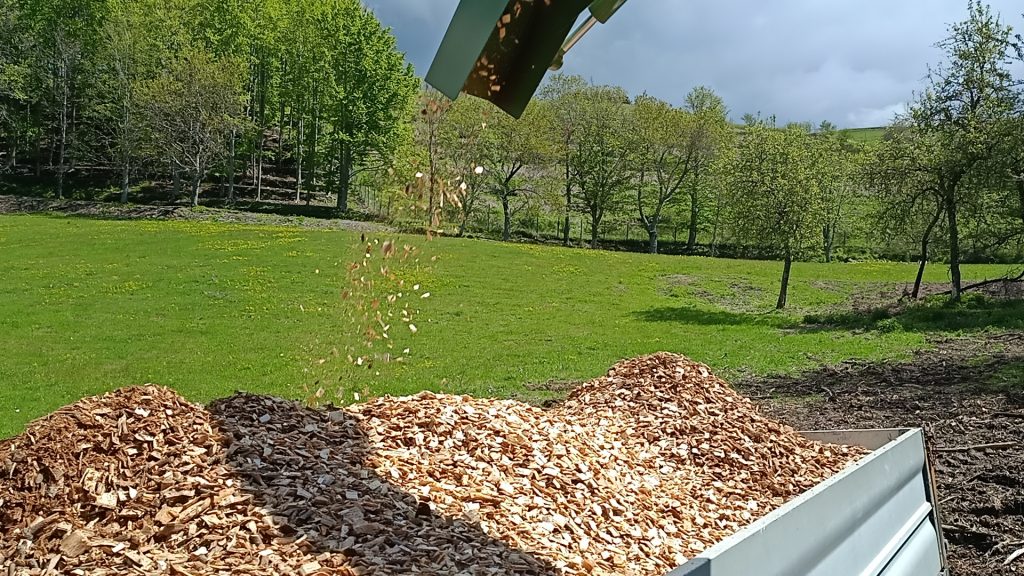

The discharge fan, with interchangeable volutes, allows the wood chips to be expelled smoothly through the discharge pipe, which is equipped with an adjustable deflector at the end.

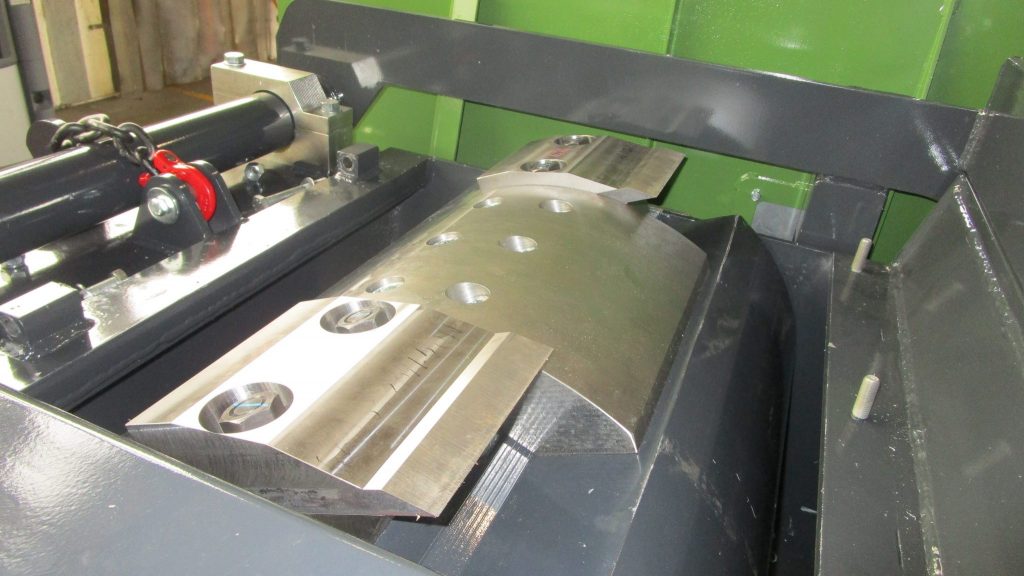

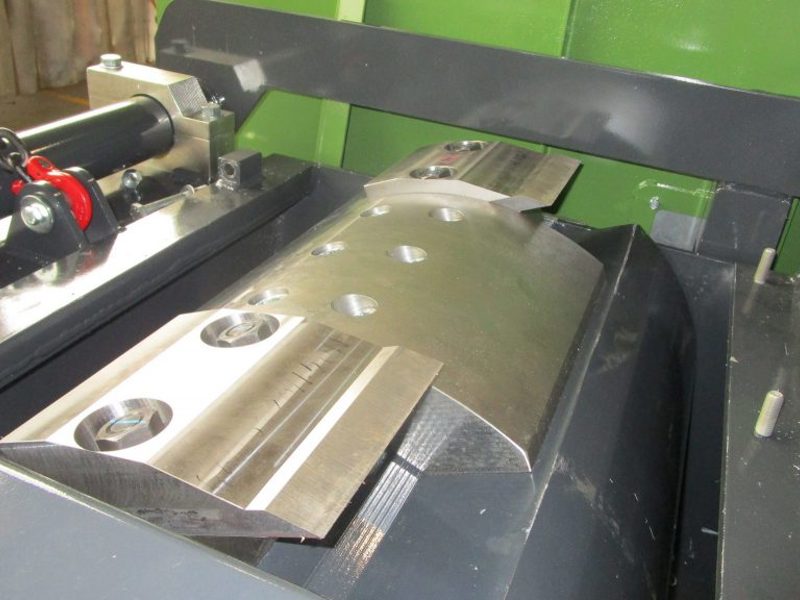

The main wearing parts are specially designed for easy replacement, as well as having a low cost.
Maximum chipping diameter: 300 mm
Maximum inlet passage : 500x300 mm
Minimum required tractor power: 60hp
