Minimum tractor power |
250/149 |
hp/kW |
|
Maximum power of the tractor |
600/388 |
hp/kW |
|
Max chipping diameter soft wood |
800 mm / 31.50'' |
mm/in |
|
Max chipping diameter hard wood |
550 mm / 21.65'' |
mm/in |
|
Maximum inlet passage |
1000 x 1100 mm / 3' 3.37'' x 3' 7.31'' |
mm/ft |
|
Knives |
4 |
n° |
|
Hourly throughput |
until 220 |
m³/h |
|
Drum diameter |
1000 mm / 3' 3.37'' |
mm/ft |
|
Drum width |
1000 mm / 3' 3.37'' |
mm/ft |
|
Hooked steel feeding conveyor width |
1000 mm / 3' 3.37'' |
mm/ft |
|
Hooked steel feeding conveyor length |
2200 mm / 7' 2.61'' |
mm/ft |
|
Weight |
16500 kg / 36376 lbs |
kg/lbs |
|
Hopper length |
1800 |
mm |

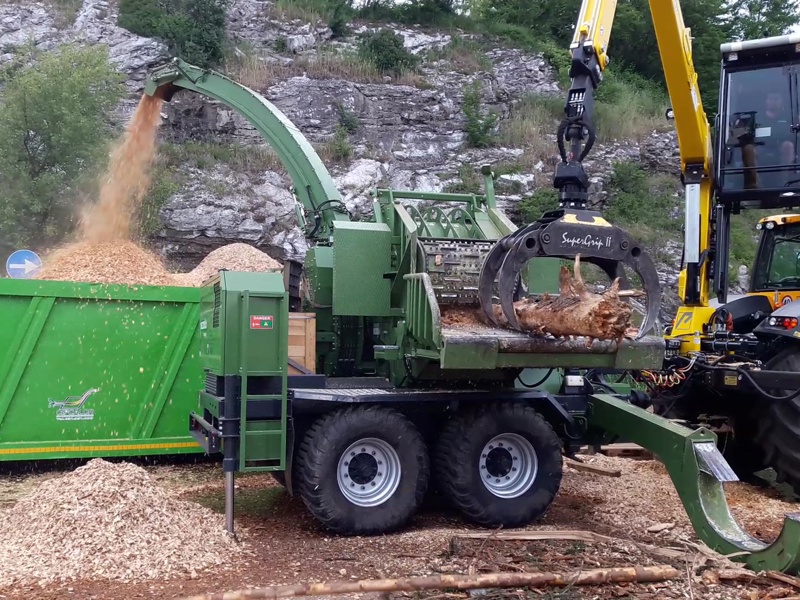

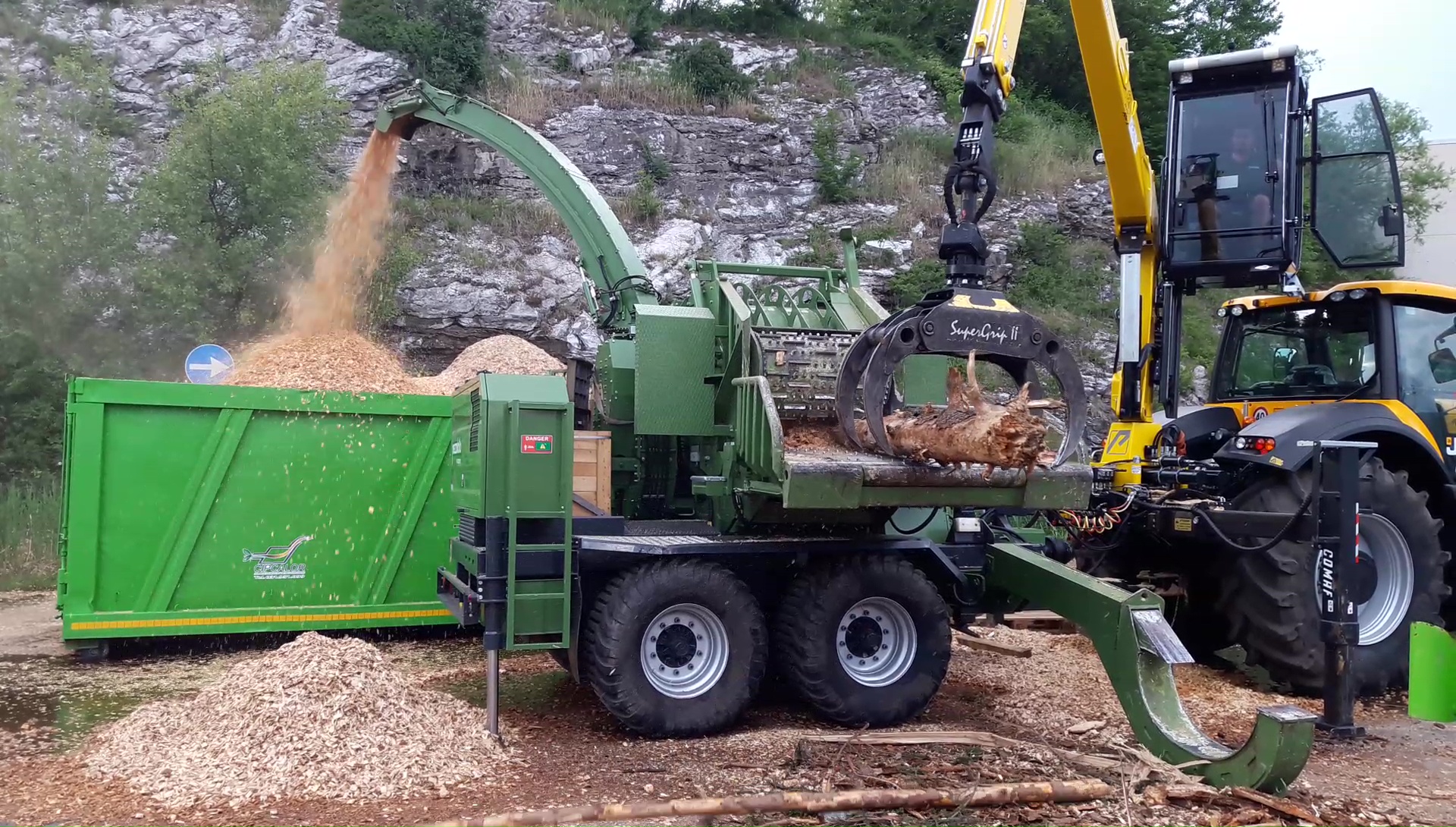

Pezzolato PTH 1000/1000
PTH 1000/1000 is one of the heavy duty machines to chip big diameter logs within Pezzolato drum chippers, whose drum diameter measures 1000 mm (3′ 3.37”).
Its feeding mouth is 1000 mm (3′ 3.37”) wide.
Able to produce up to 220 m3 chips per hour, it guarantees high throughput.

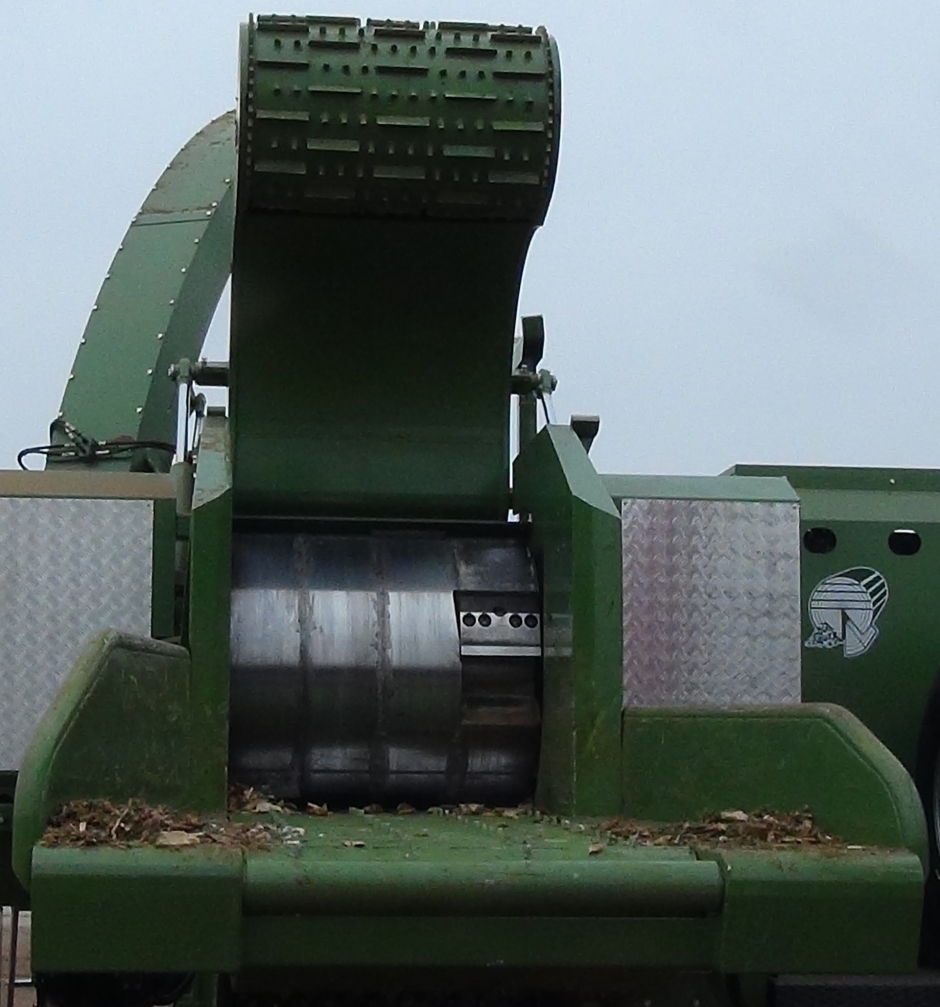

The Pezzolato solid drum, well-known for reliability, wear-resistance and no maintenance, has been designed to guarantee the best quality wood chips, either small or big dimensions. It is staggered section type in order to distribute the machine’s effort equally, reducing vibrations, noise and consumption.
The sharp cut through the blades and the large drum’s inertia reduce the machine’s efforts and stress, thus confirming the well-known solidity of Pezzolato drum chippers.
The wear spare parts of all machines are cost effective and simple to replace in short maintenance times and cheap.
The integrated computer suggests any ordinary and extraordinary maintenance operations to be performed according to the manufacturer’s maintenance plan.
Maximum chipping diameter: 500 mm
Maximum inlet passage: 1200 x 600 mm
Minimum required tractor power: 150 Hp
