Minimum tractor power |
200/149 |
hp/kW |
|
Maximum power of the tractor |
330/246 |
hp/kW |
|
Max chipping diameter soft wood |
600 mm / 23.62'' |
mm/in |
|
Max chipping diameter hard wood |
450 mm / 17.72'' |
mm/in |
|
Maximum inlet passage |
1000 x 900 mm / 3' 3.37'' x 35.43'' |
mm/in |
|
Knives |
4 |
n° |
|
Hourly throughoutput |
until 150 |
m³/h |
|
Drum diameter |
820 mm / 32.28'' |
mm/in |
|
Drum width |
1000 mm / 3' 3.37'' |
mm/ft |
|
Hooked steel feeding conveyor width |
1000 mm / 3' 3.37'' |
mm/ft |
|
Hooked steel feeding conveyor lenght |
2200 mm / 7' 2.61'' |
mm/ft |
|
Weight |
11300 kg / 24912 lbs |
kg/lbs |
|
Hopper width |
1800 |
mm |

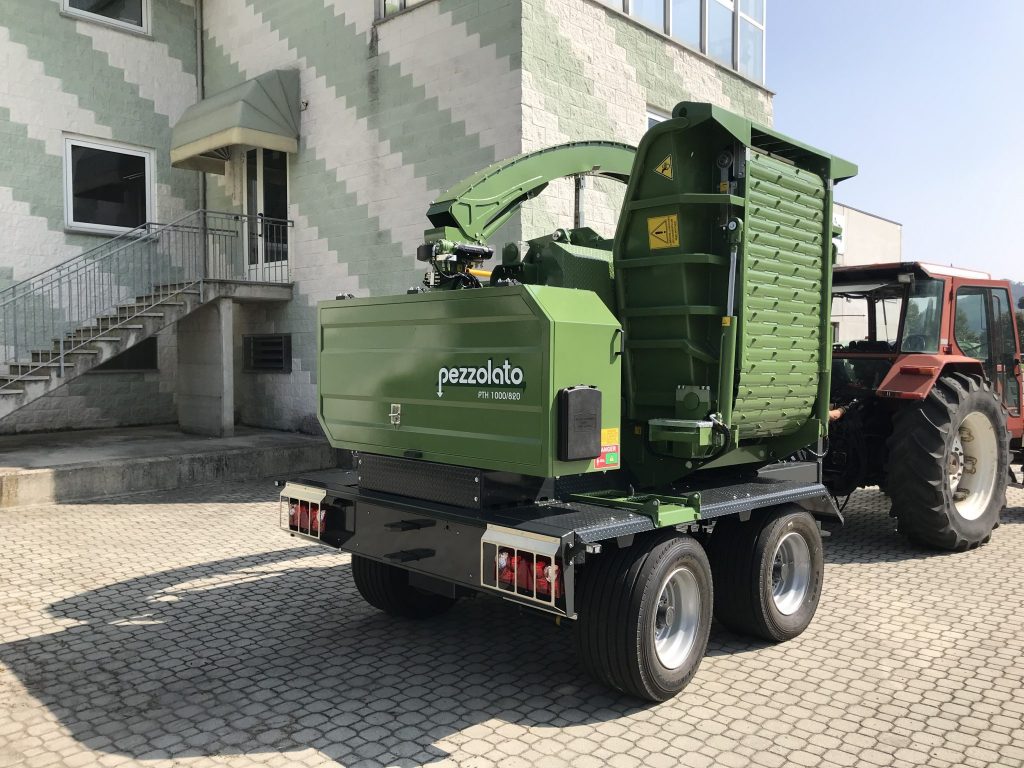

Pezzolato PTH 1000/820
Medium-heavy-duty machines within the Pezzolato line of drum chippers, their drum diameter measures 820 mm.
Able to produce up to 150 m³/h of wood chips, with high yield guaranteed. The feeding mouth and the drum width distinguish the two models.
The Pezzolato solid drum, well-known for reliability, wear-resistance and no maintenance, has been designed to guarantee the best quality wood chips, either small or big dimensions. It is staggered section type in order to distribute the machine’s effort equally, reducing vibrations, noise and consumption.
Description
The sharp cut through the blades and the large drum’s inertia reduce the machine’s efforts and stress, thus confirming the well-known solidity of Pezzolato drum chippers.
The wear spare parts of all machines are cost effective and simple to replace in short maintenance times and cheap.
The integrated computer suggests any ordinary and extraordinary maintenance operations to be performed according to the manufacturer’s maintenance plan.
Maximum chipping diameter: 500 mm
Maximum inlet passage : 950 x 600 mm
Minimum required tractor power: 140 Hp
