Electric motor power |
55 kW / 74 hp |
kW/hp |
|
Max chipping diameter soft wood |
250 mm / 9.84'' |
mm/in |
|
Max chipping diameter hard wood |
180 mm / 7.09'' |
mm/in |
|
Drum width |
370 mm / 14.57'' |
mm/in |
|
Drum diameter |
500 mm / 19.69'' |
mm/in |
|
Maximum inlet passage |
370 x 250 mm / 14.57'' x 9.84'' |
mm/in |
|
Knives |
3 |
n° |
|
Hourly throughput |
15 ÷ 30 |
m³/h |

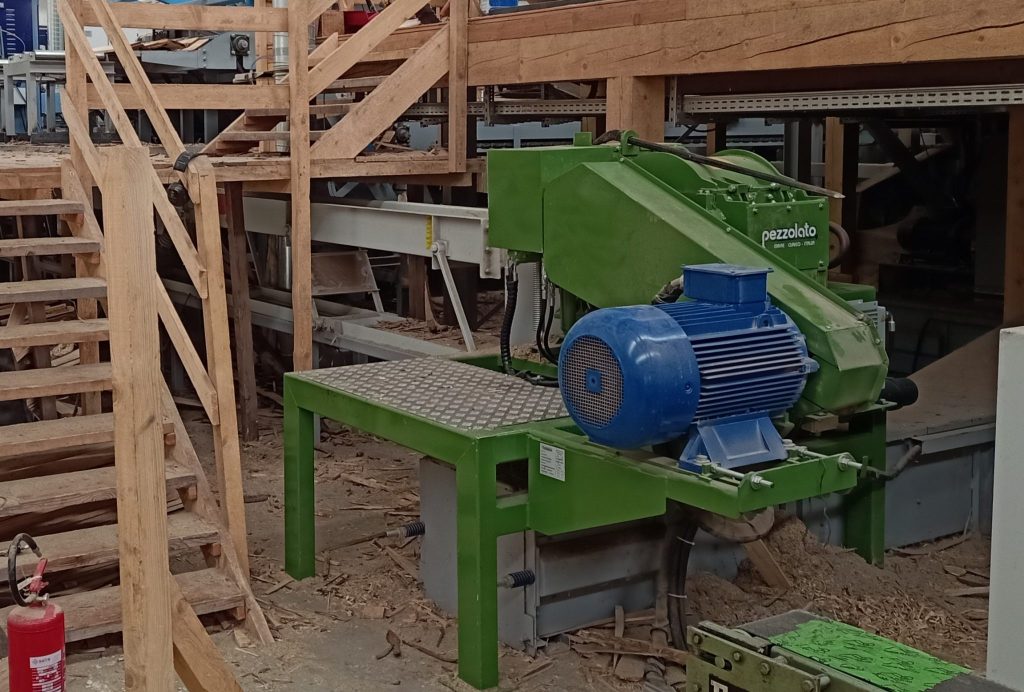

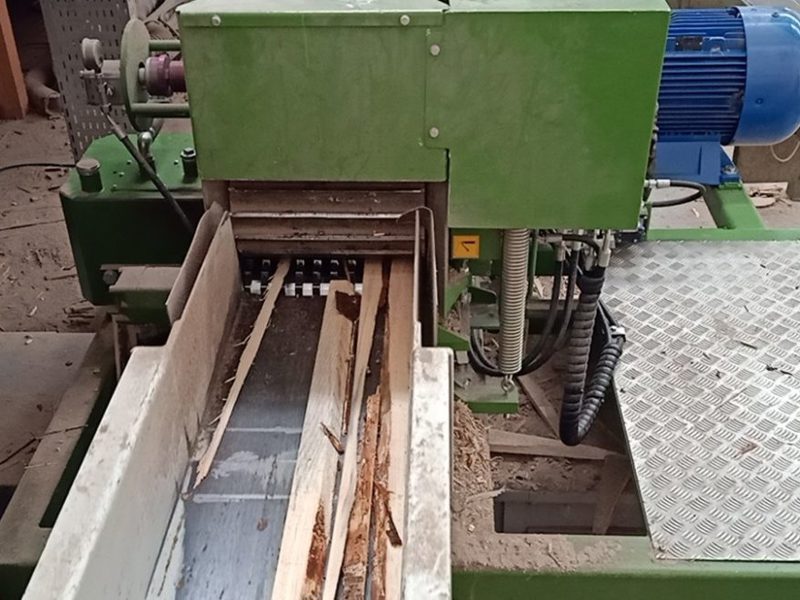

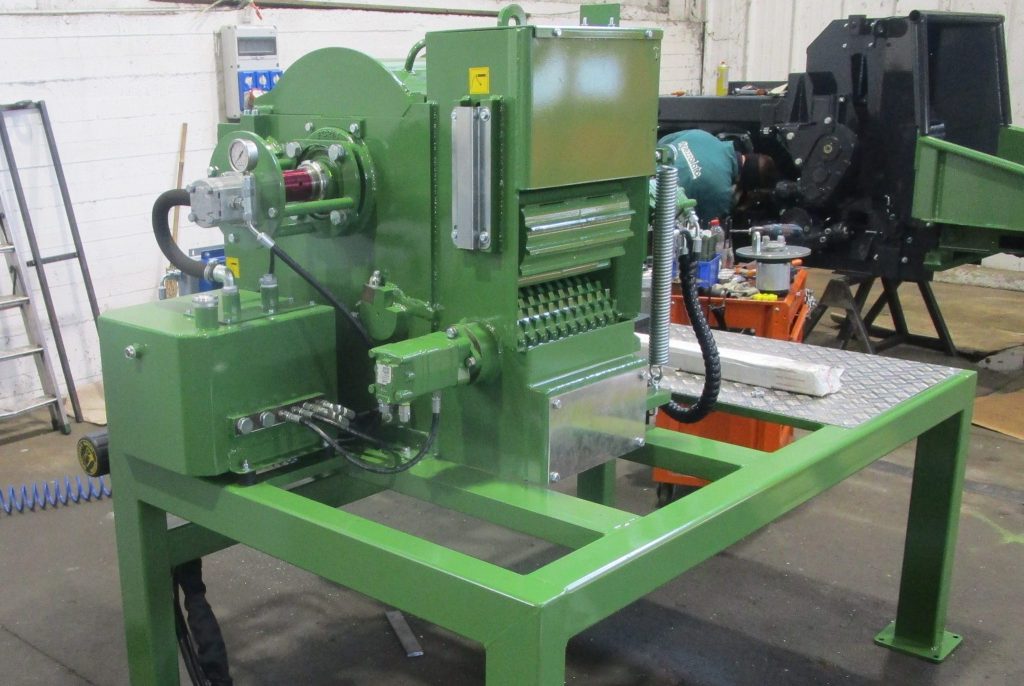

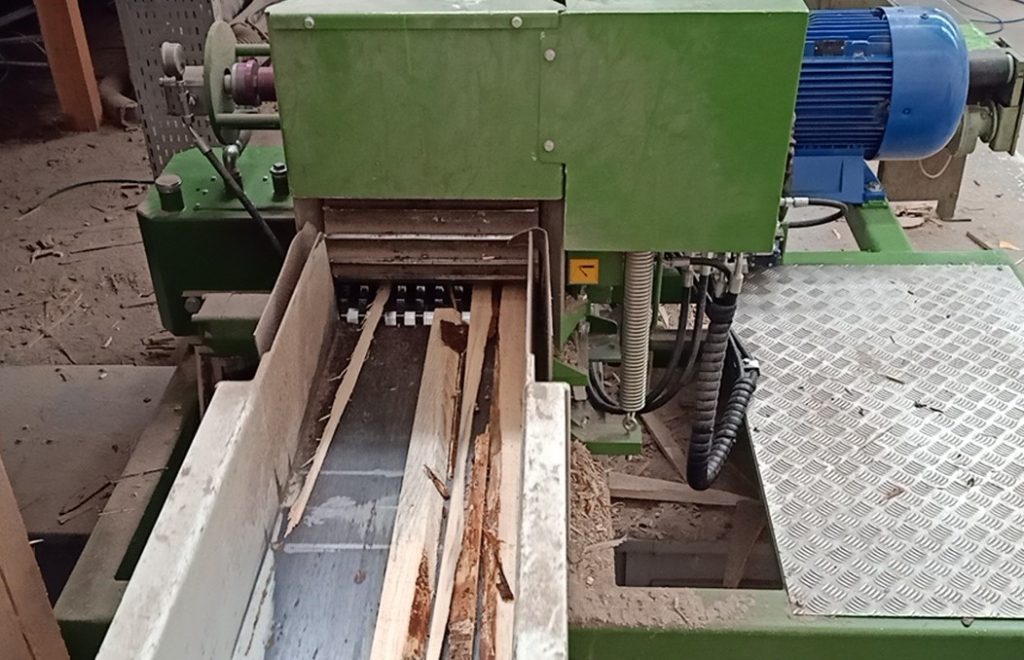

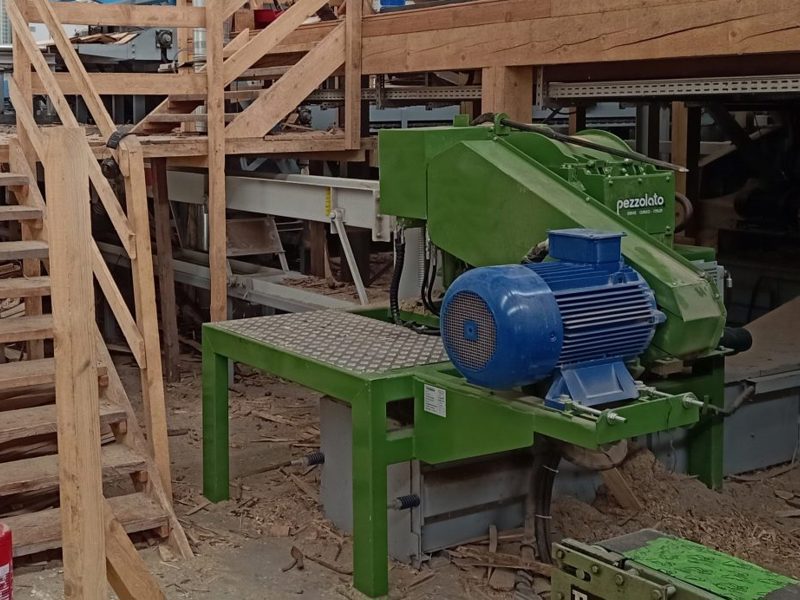

Pezzolato PTH 250.500E
This chipper is specially designed and dedicated to woodchip gasification plants.
Unlike traditional medium-small size chippers on the market, the PTH 250 ENERGY is able to produce larger wood chips than the standard using a particular and innovative cutting system which also limits the production of particulate matter.
It is operated by 55 kW electric motor.
The expulsion of the chips takes place via the discharge belt with a rubber band, 3 metres long, able to evacuate material up to 2.10 meters in height.
Chipping dimeter and declared production are variable according to the available power, wood type and chips size.
Maximum chipping diameter: 250 mm
Maximum inlet passage: 500 x 400 mm
Electric motor power: from 55 kW
