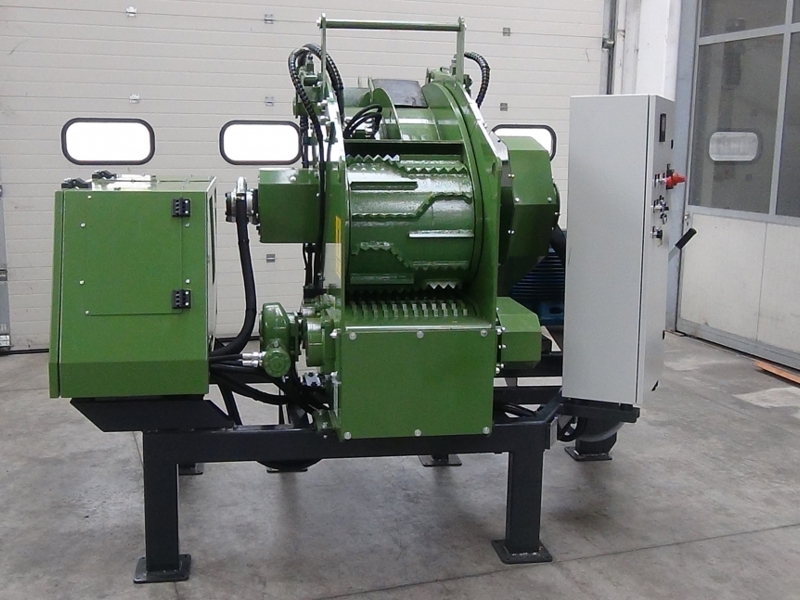

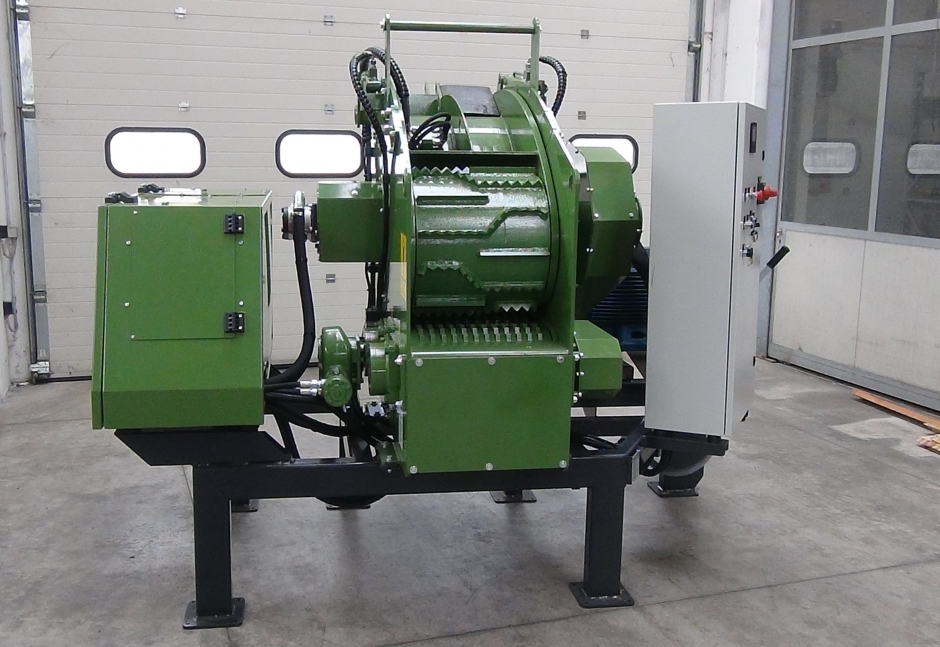

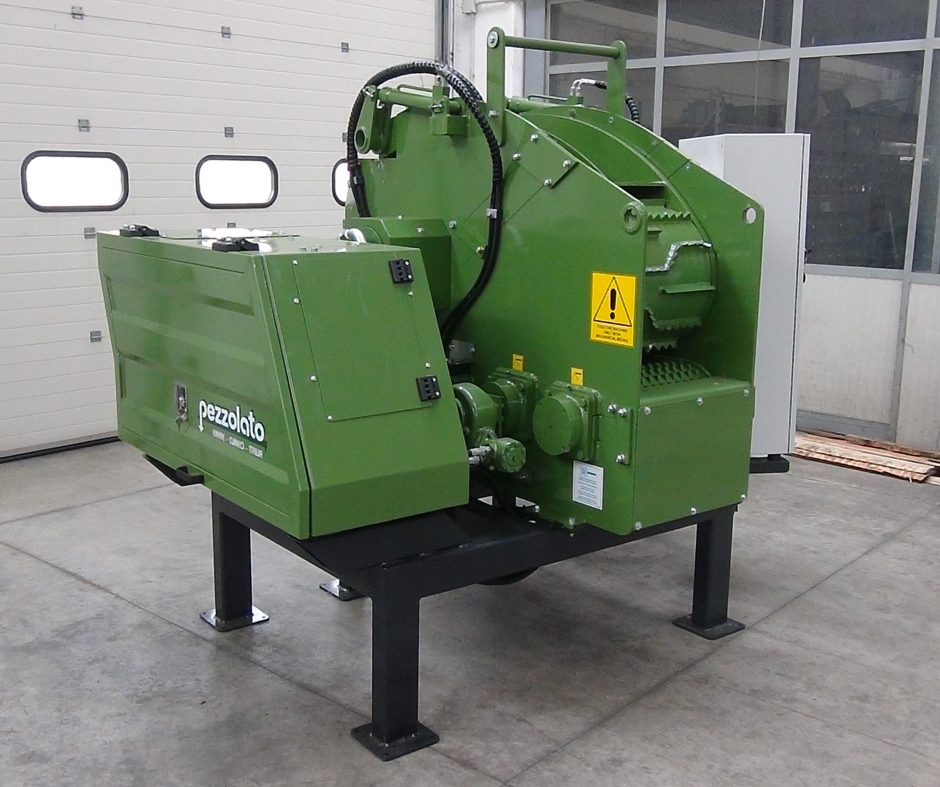

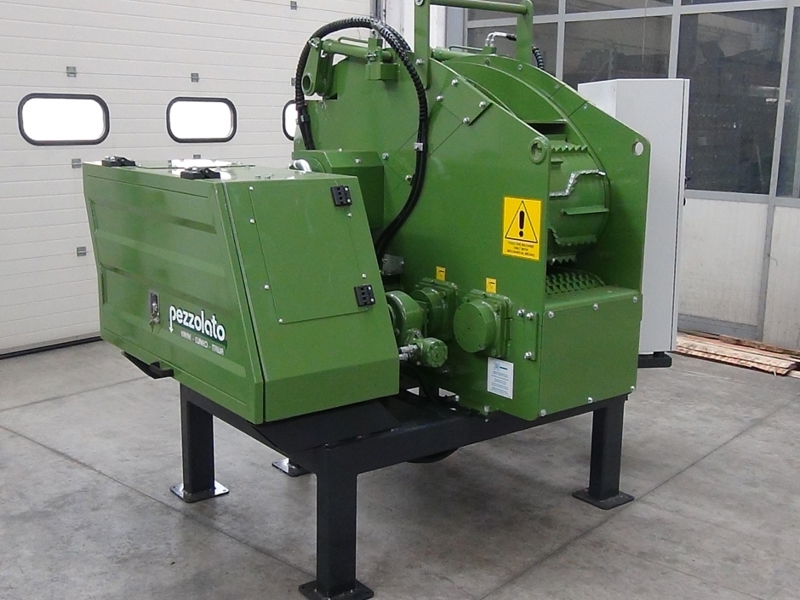

Pezzolato PTH 500/660E

PTH 500/660 E is one of the medium power machines within Pezzolato drum chippers, whose drum diameter measures 660 mm (25.98”). Its feeding mouth is 500 mm (19.68”) wide.

Able to produce up to 35 m³ chips per hour, it guarantees high throughput.

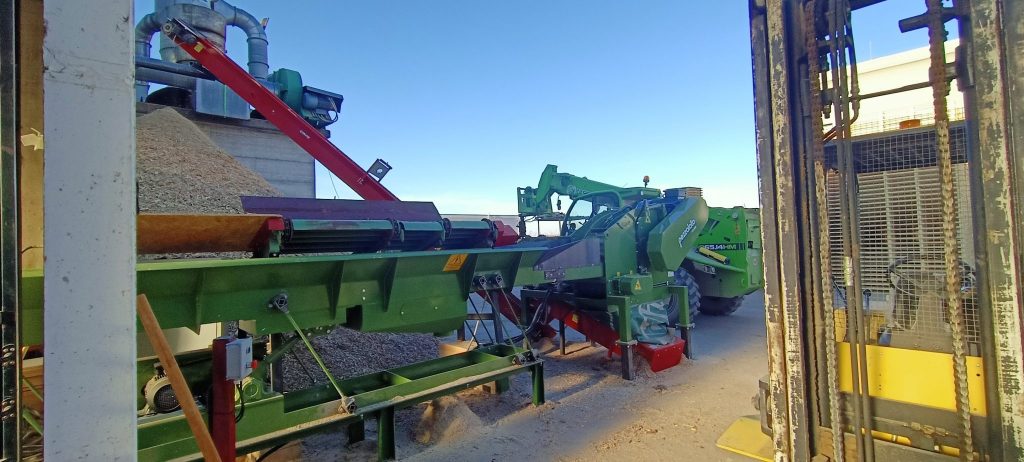

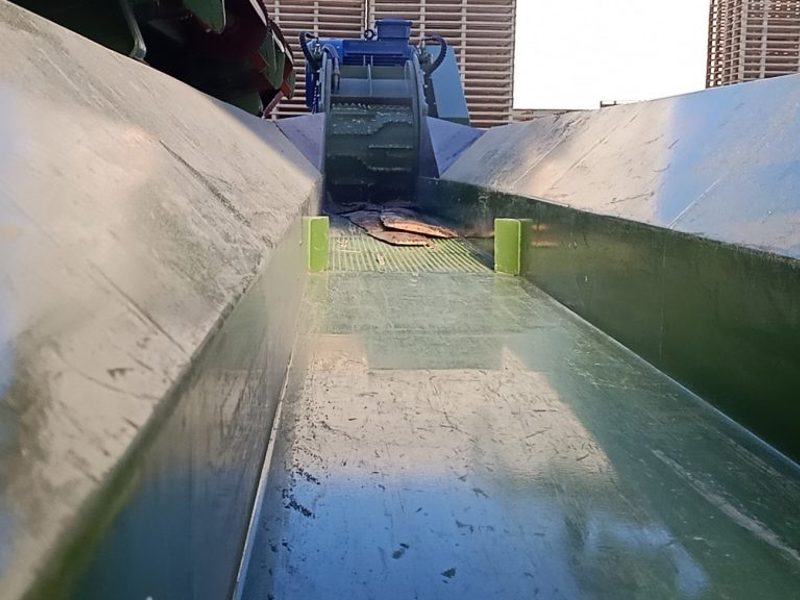

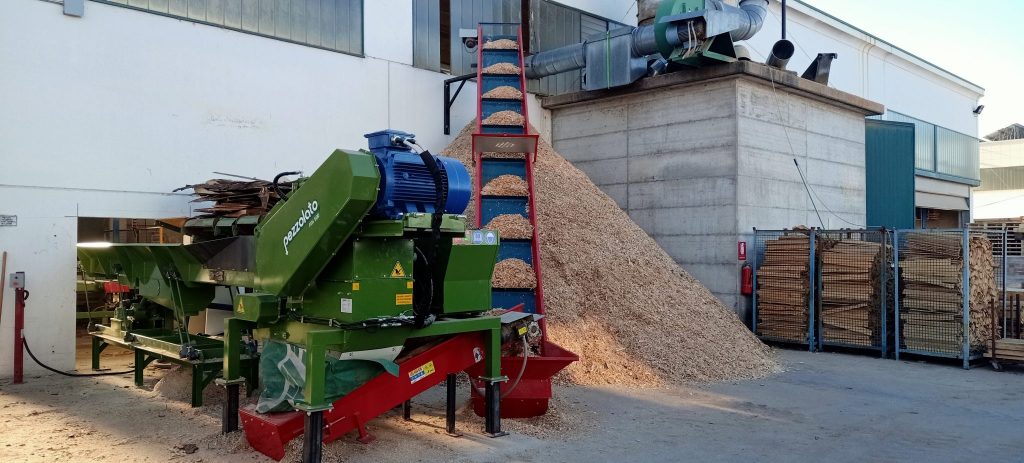

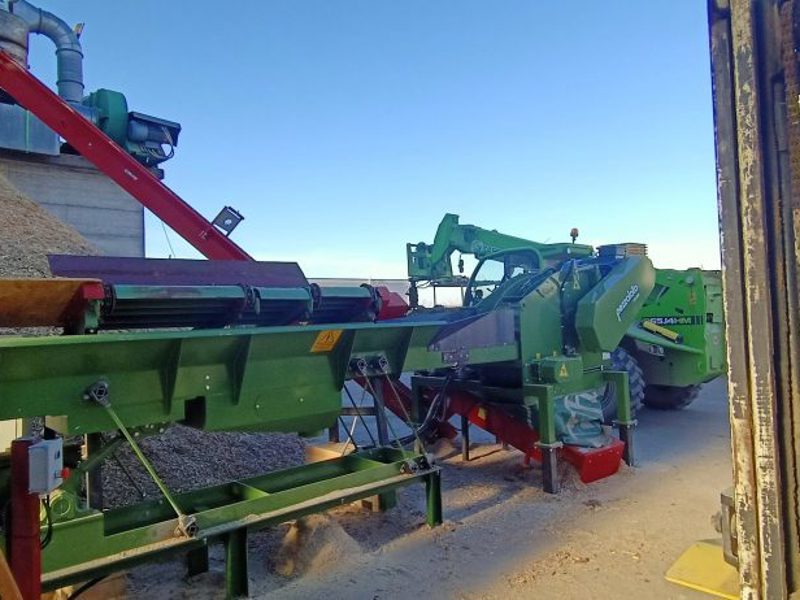

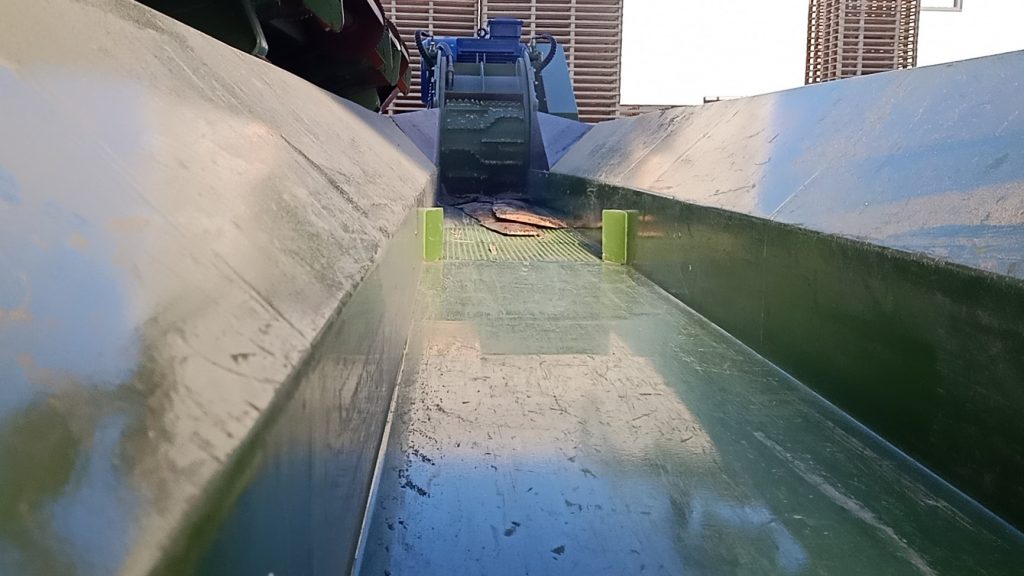

Mainly used in: biomass power plants, pellet-briquettes plants, saw mills and yards for chipping. It is ideal to chip saw mills waste and small diameter logs. They are equipped with three electric motors, one driving the drum and the other two driving the rollers, upper and lower. The feeding is given by the use of rubber bands, vibrating channels and tables, chain conveyors.

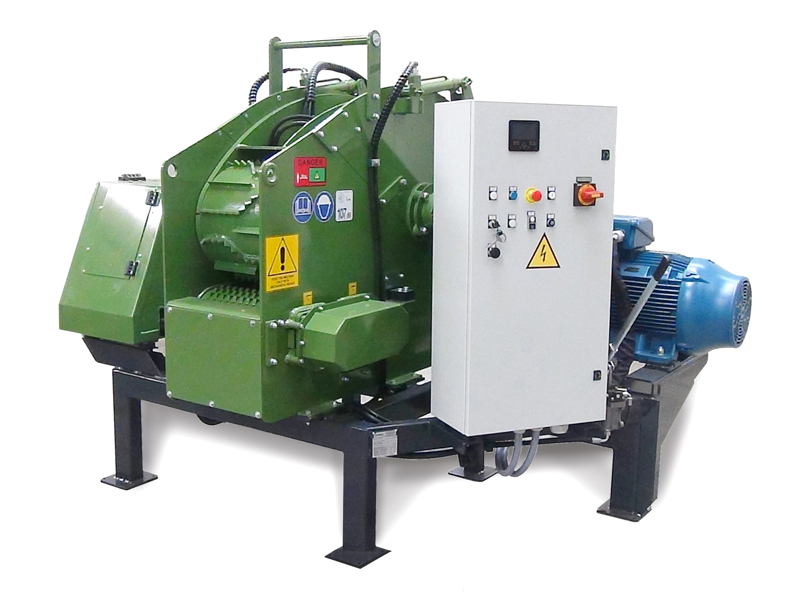

Powered by electric motor of 55 kW (74 hp) or 75 kW (100 hp).

Thanks to the closed drum, it produces high quality chips, whatever wood is cut, considerably reducing fuel consumption.

The sharp cut through the blades and the drum’s inertia reduce the machine’s efforts and stress, thus confirming the well-known solidity of Pezzolato chippers.

The wear parts of all machines are simple to replace in short maintenance times and cheap.

The electronic controller suggests any ordinary and extraordinary maintenance operations to be performed according to the manufacturer’s maintenance plan.

Chipping dimeter and declared production are variable according to the available power, wood type and chips size.

Electric motor power

55-75 kW / 74-100 hp

kW/hp

Maximum inlet passage

500 x 400

mm/in

Knives

3

Hourly throughput

25 ÷ 35

m³/h

Drum diameter

660 mm / 25.98''

mm/in

Drum width

500 mm / 19.69''

mm/in

Upper rollers

1

Lower roller

2
