- SCREEN DECKS – MESH, BOFAR BAR, FINGER SCREENS OR PUNCH PLATES.
- RADIO REMOTE CONTROL
- OVERBAND MAGNET ON OVERSIZE CONVEYOR

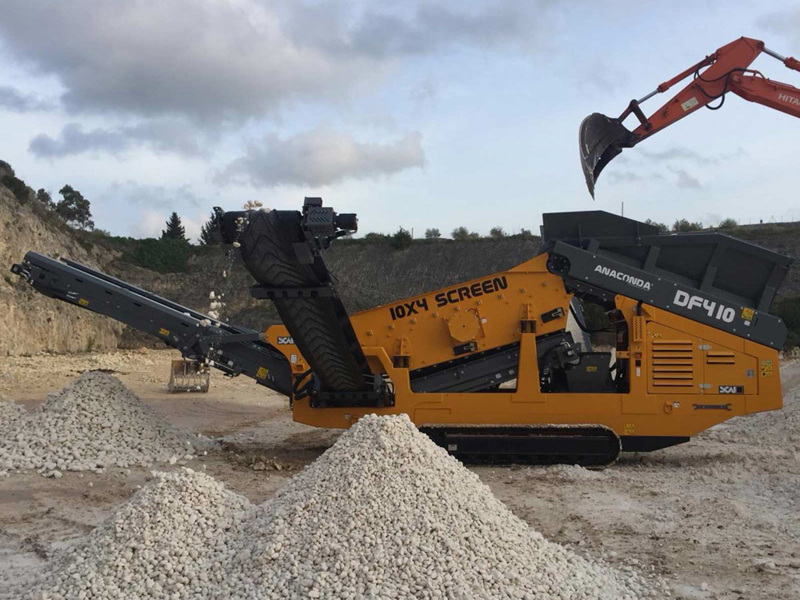

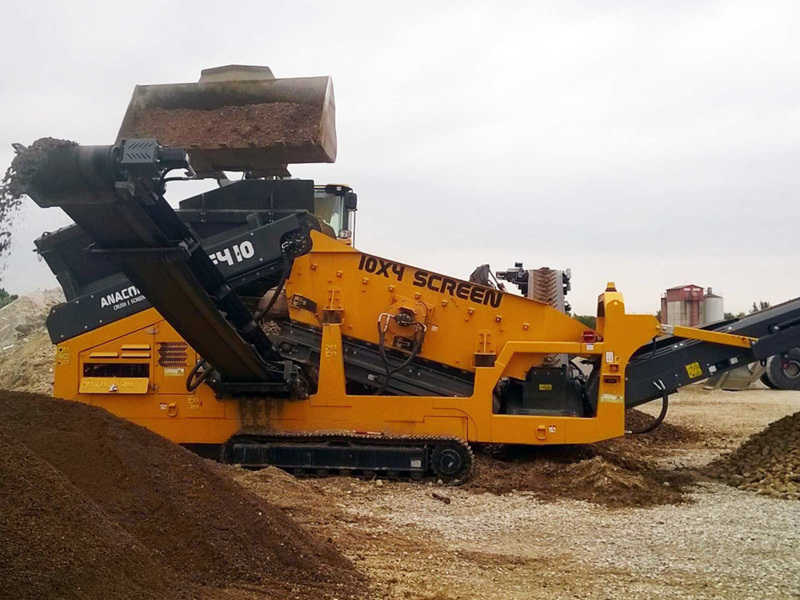

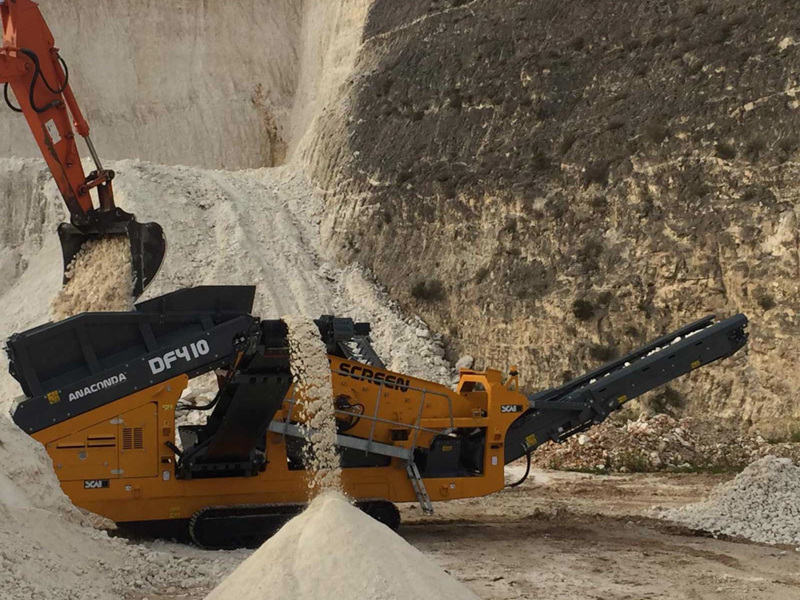

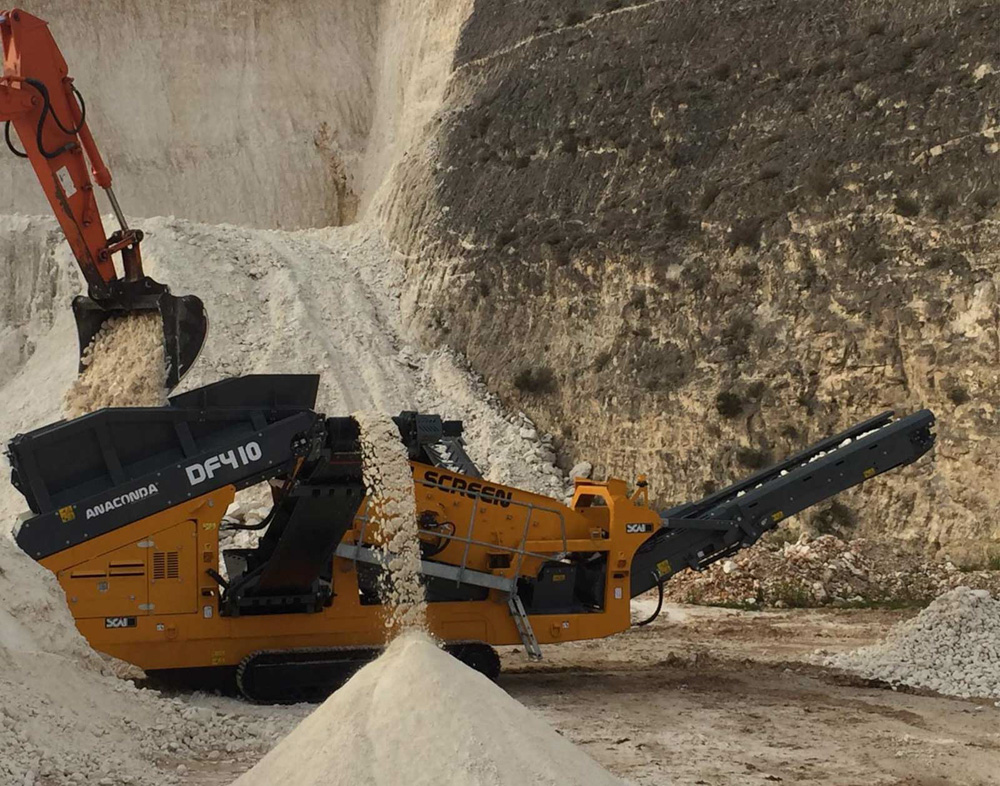

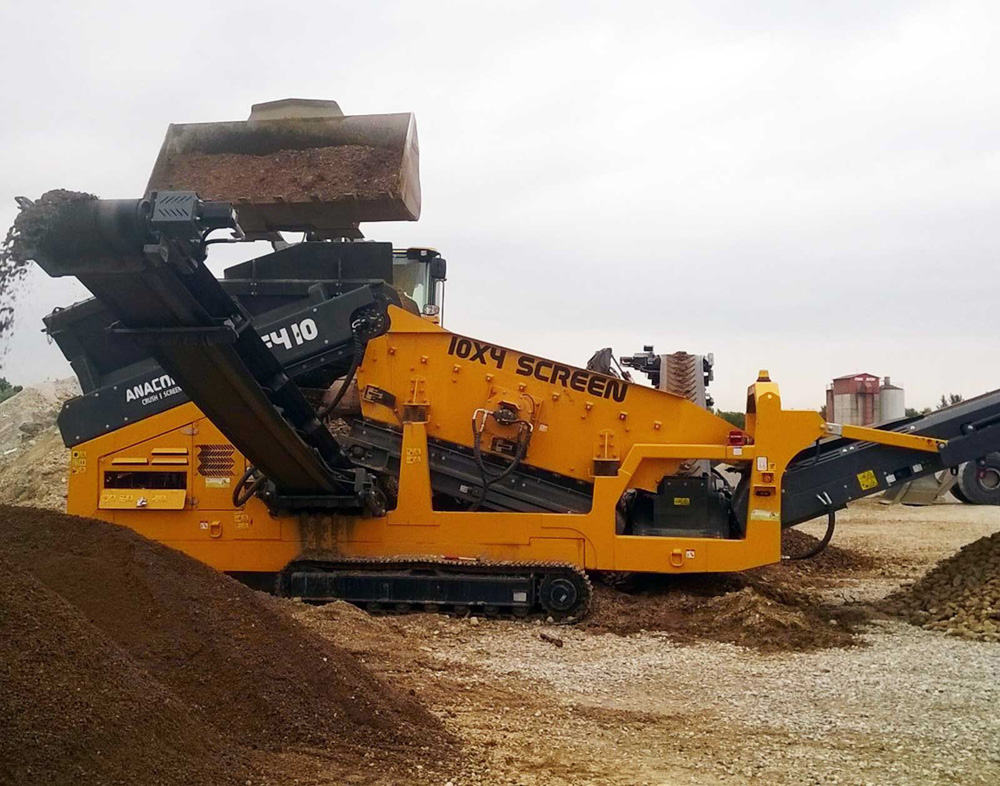

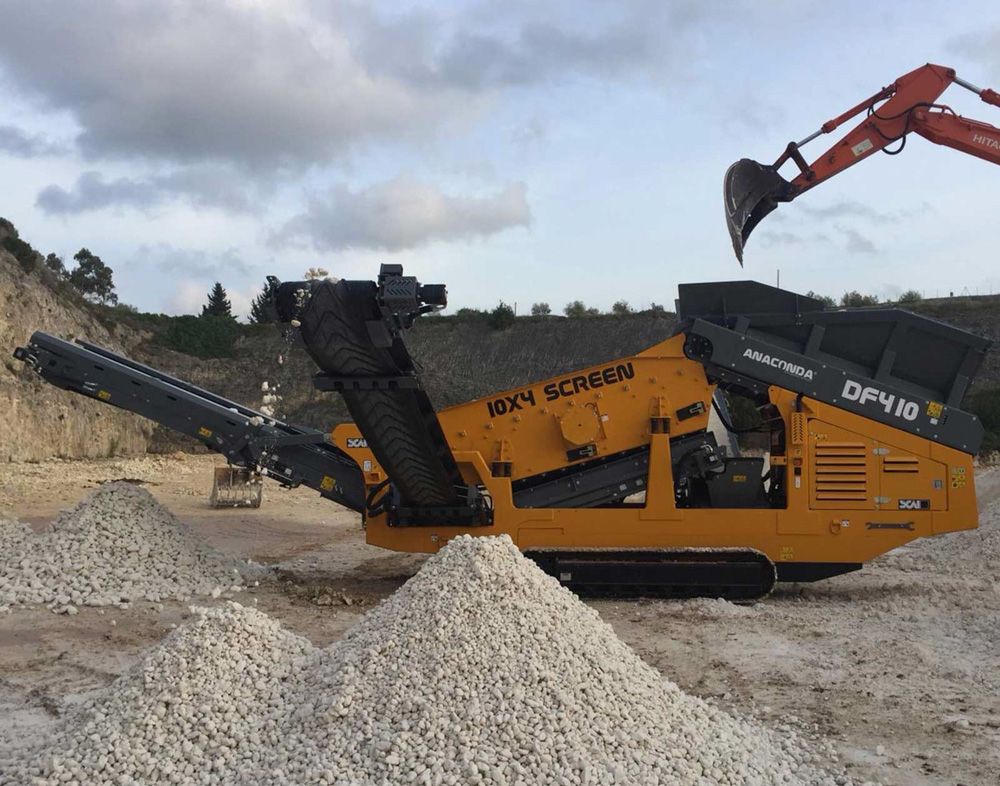

Anaconda DF410
The DF410 is powerful and economical to run and can screen / stockpile 3 products at once. Complete with a 10 x 4 (2 deck) screen box which can be modified to facilitate the desired 3-way split for the customer. The screen is extremely easy to commission and can be running within 20 minutes of arrival on site.
The DF410 is the ever reliable scalping screen here at Anaconda having established itself over 10 years in the market! This recognition has stemmed from the machines ability to cope with tonnages between 170-230 TPH. The compact footprint and noise level makes the DF410 an excellent addition to any contract hire business that may do work in tight yards and urban built up areas!
This compact screener is under length, under width and under weight, so no permits necessary in moving it around. However, it is BIG on performance. Versatility, Productivity and Reliability are the three words that come to mind as soon as the DF410 screener reaches application!
Benefits and Features
- STAGE 5 – T.DEUTZ 2.9 L4 / JCB444 DIESELMAX
- HIGH ENERGY 3M X 1.2M (10’ X 4’) 2 BEARING SCREEN BOX – 2 DECKS
- VARIABLE SPEED CONTROL ON ALL BELTS (EXCLUDING FINES COLLECTION CONVEYOR)
- FLIP DOWN HOPPER TAILGATE TO ALLOW DIRECT FEED FROM A CRUSHER BELT
- TAIL CONVEYOR LOWERS HYDRAULICALLY TO ALLOW ACCESS TO BOTTOM SCREEN DECK
- HYDRAULIC FOLDING TAIL CONVEYORS
- FIXED SCREEN ANGLE AT 15º
- SIDE TENSIONED TOP DECK. END TENSIONED BOTTOM DECK
- EASY ACCESS TO ENGINE COMPARTMENT
- CONTAINERISES WITHOUT ANY BREAKDOWN
12ft double deck vibrating grid
20,000 Kg
STAGE 5 – T.DEUTZ 2.9 L4 / CAT / JCB444 DIESELMAX
