Bandit 3680XPT

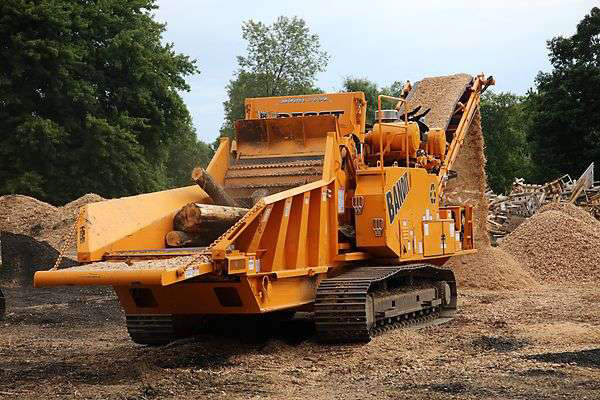

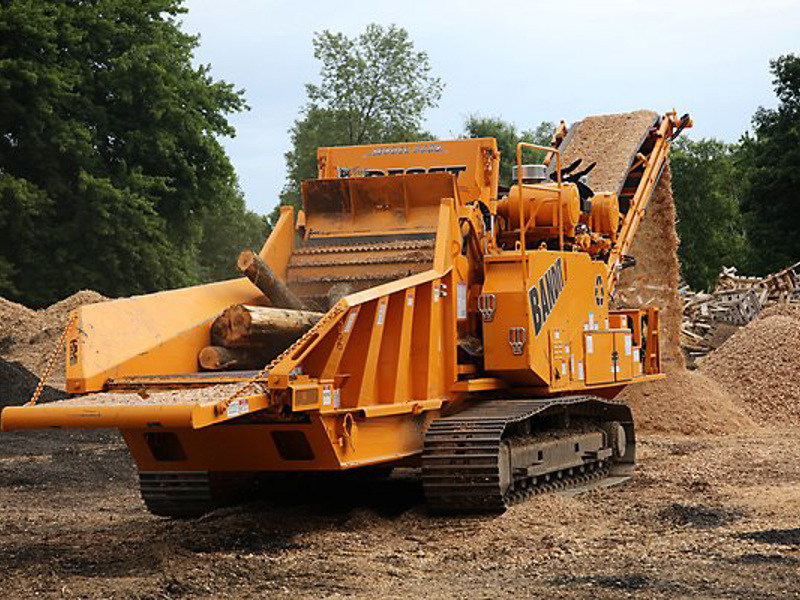

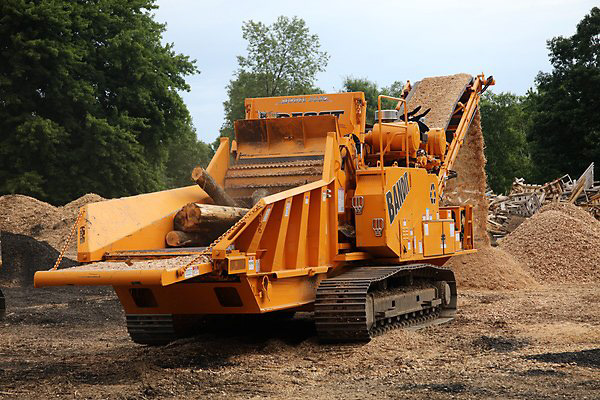

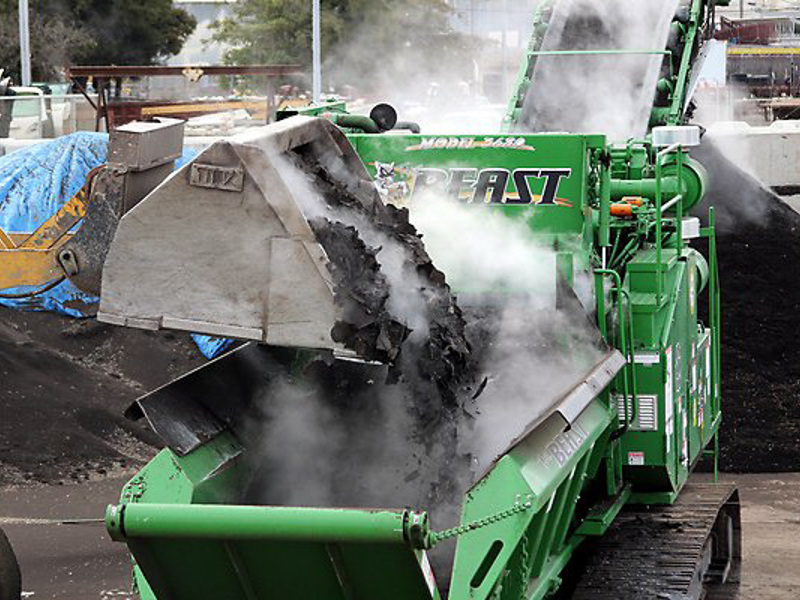

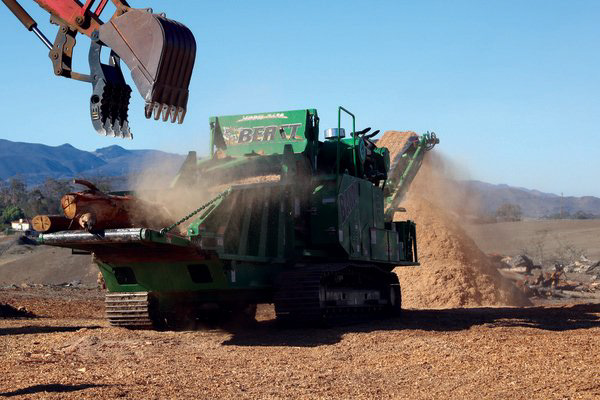

The Beast® Model 3680XP track is a high production grinder and is one of the more popular grinders available. The 3680XP is equipped with a 42” diameter by 63” wide cutter mill and a 35" high x 60" wide mill opening.

A 14' 9" long x 60" infeed with double slat design track style infeed conveyor provides ample room for feeding a wide variety of material. A 30" diameter feed wheel further assists with pulling material into the mill. Proportional feed is also standard with 6-speed adjustments allow for maximum productivity and fuel efficiency. All grinding functions are controlled with a wireless radio remote control with tether back-up.

A wide variety of tooth and screen options are available to adequately process and size material. A single screen and gate can easily be changed from the side of the grinding chamber while utilizing the standard screen changing arm.

Key Features

  • Caterpillar 325EL steel track undercarriage
  • 14' 9" long x 60" steel infeed conveyor (actual hopper length - 13' 19")
  • (1) 30" diameter feed wheel controlled via remote control
  • 42" diameter x 63" wide cutter mill with 30 or 60 teeth

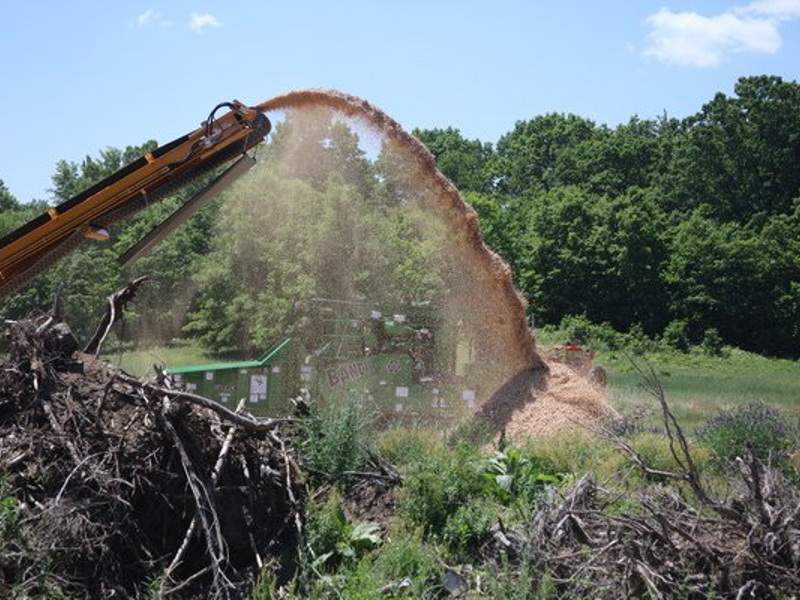

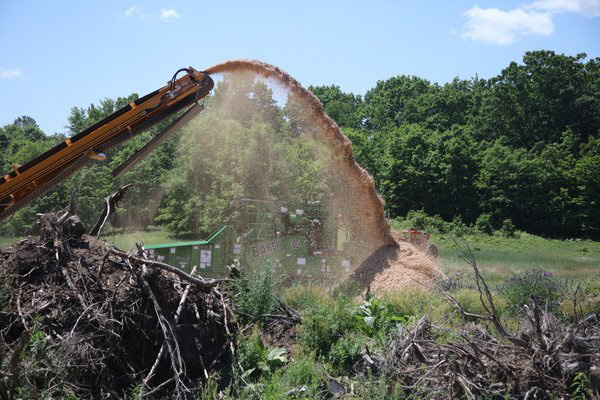

  • 30' long x 4' wide height adjustable discharge with magnetic head pulley
  • Bandit control panel with proportional feed (6 infeed speeds)
  • Radio remote control with tether back-up
  • Optional air compressor
