Diesel engine power |
510/375 - 750/551 |
hp/kW |
|
Max chipping diameter soft wood |
800 mm / 31.50'' |
mm/in |
|
Max chipping diameter hard wood |
550 mm / 21.65'' |
mm/in |
|
Maximum inlet passage |
1200 x 1100 mm / 3' 11.24'' x 3' 7.31'' |
mm/ft |
|
Knives |
5/10 |
n° |
|
Hourly throughput |
until 250 |
m³/h |
|
Drum diameter |
1000 mm / 3' 3.37'' |
mm/ft |
|
Drum width |
1200 mm / 3' 11.24'' |
mm/ft |
|
Hooked steel feeding conveyor width |
1200 mm / 3' 11.24'' |
mm/ft |
|
Hooked steel feeding conveyor length |
2200 mm / 7' 2.61'' |
mm/ft |
|
Hopper width |
2200 mm / 7' 2.61'' |
mm/ft |
Pezzolato PTH 1200/1000
The chipper PTH 1200/1000 HACKERTRUCK is one of the heavy duty machines within Pezzolato drum chippers, whose drum diameter measures 1000 mm (3′ 3.37”). Its feeding mouth is 1200 mm (3′ 11.24”) wide.
Able to produce up to 250 m3 chips per hour, it guarantees high throughput.

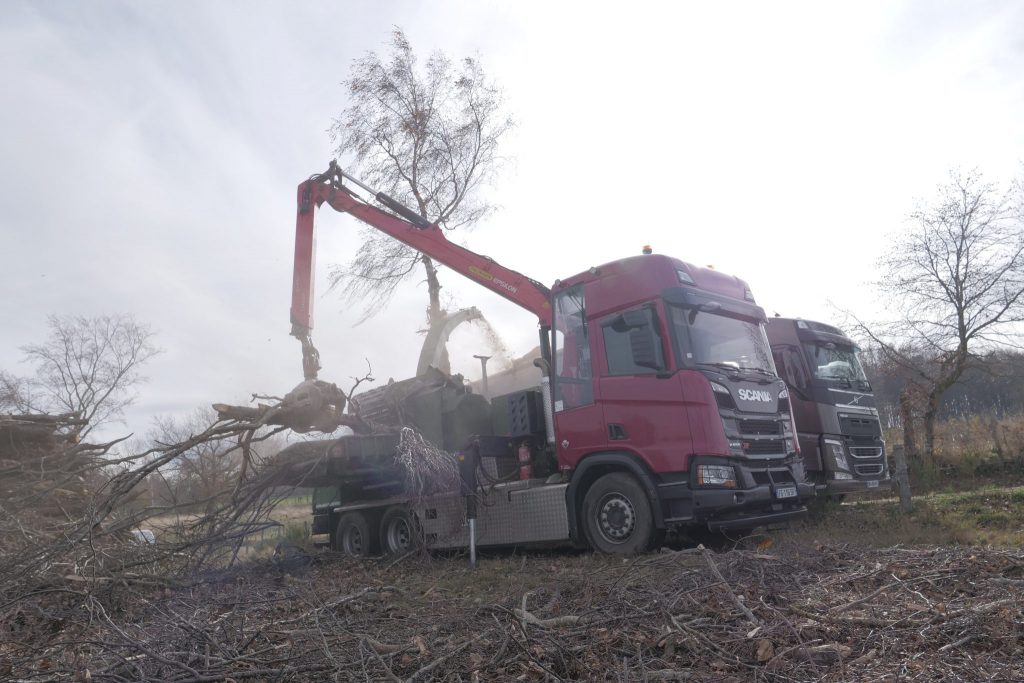

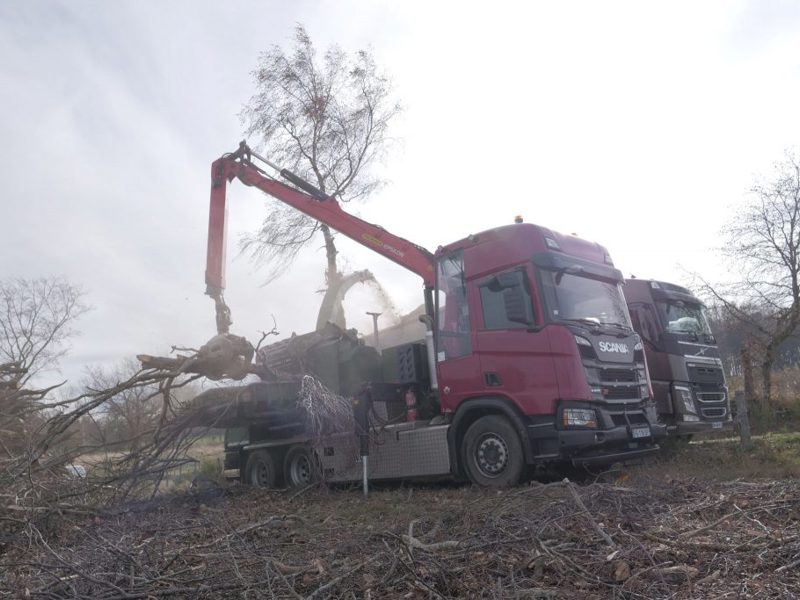

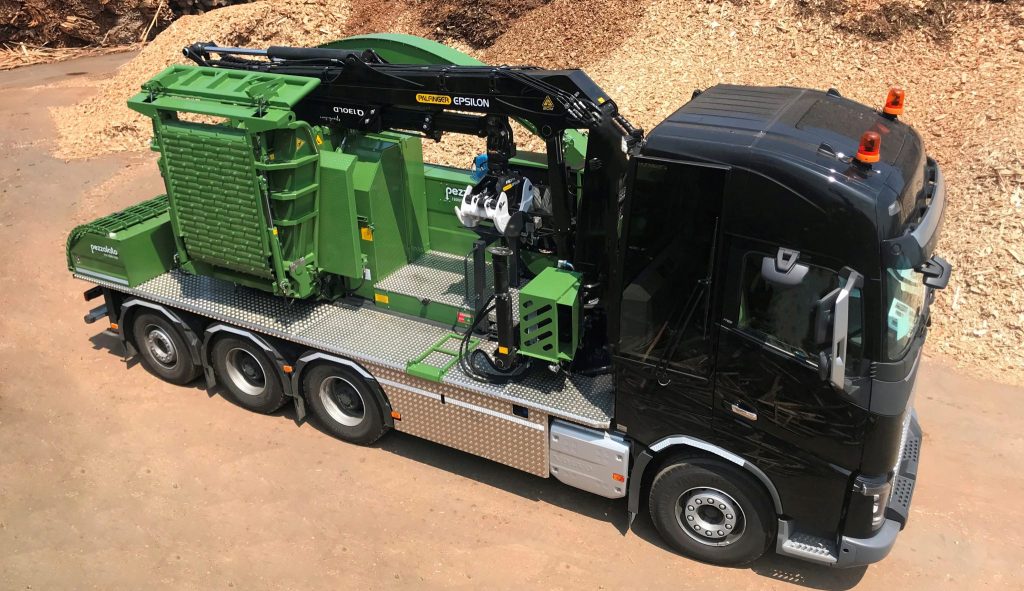

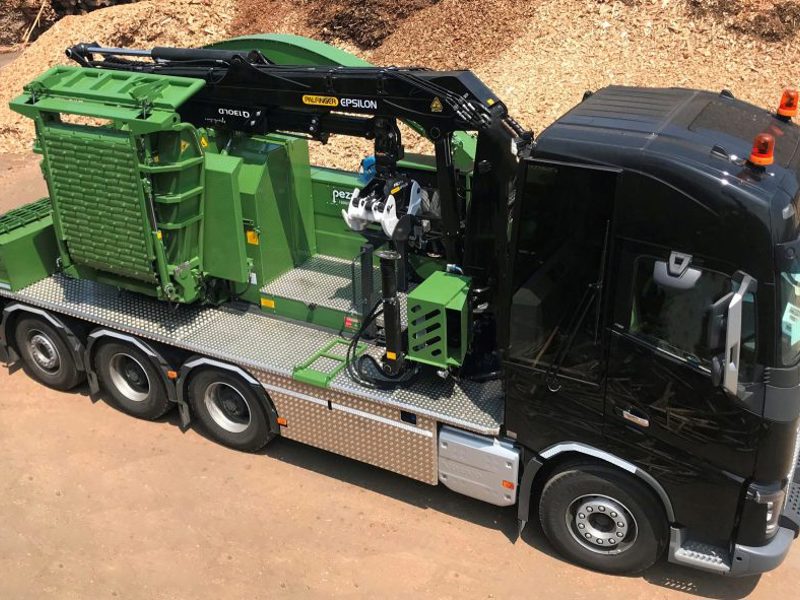

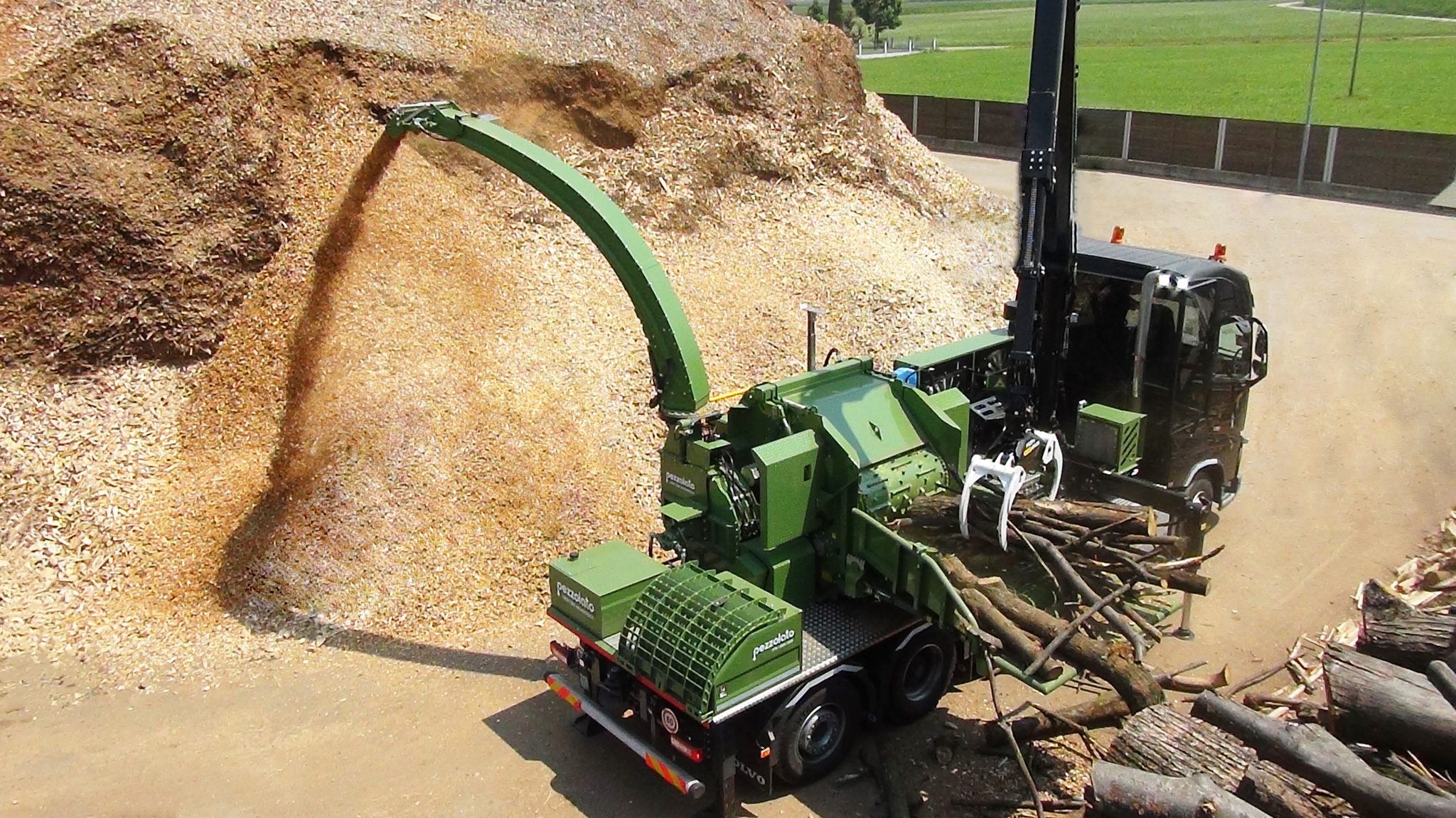

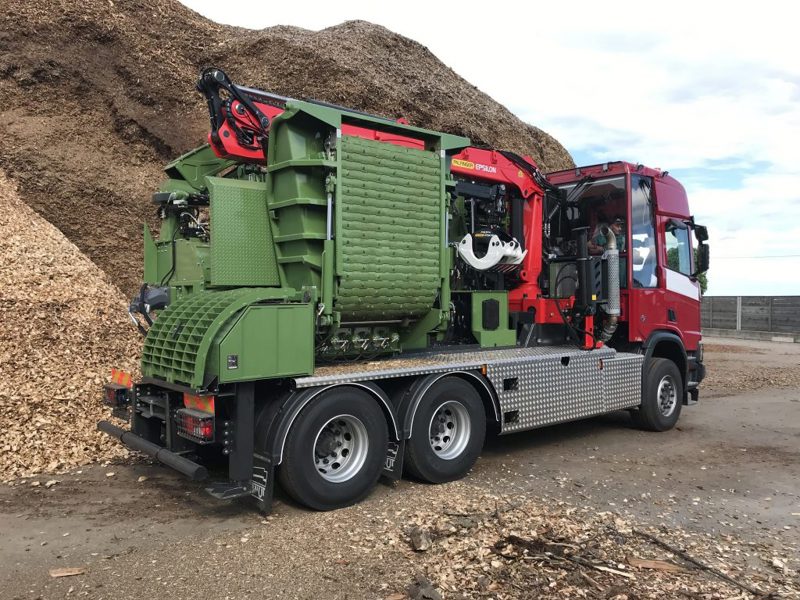

The HACKERTRUCK series chippers are mounted on trucks with 3 or 4 axles and are characterised by high power and performance combined with great manoeuvrability and versatility.
In HACKERTRUCK chippers the drive system can use the same engine as the truck in order to eliminate an auxiliary one, so as to unburden the vehicle and to increase the manoeuvrability .
They can be customised with many settings to make them more versatile to all working condition and are therefore appreciated by large contractors who have to move quickly on many different sites.
The Pezzolato solid drum, well-known for reliability, wear-resistance and no maintenance, has been designed to guarantee the best quality wood chips, either small or big dimensions.
It is staggered section type in order to distribute the machine’s effort equally, reducing vibrations, noise and consumption.
The sharp cut through the blades and the large drum’s inertia reduce the machine’s efforts and stress, thus confirming the well-known solidity of Pezzolato wood chippers.
Maximum chipping diameter: 600 mm
Maximum inlet passage: 1200 x 900 mm
Truck engine power: 510-540 Hp
