Minimum tractor power |
200/149 |
hp/kW |
|
Maximum power of the tractor |
330/246 |
hp/kW |
|
Max chipping diameter soft wood |
600 mm / 23.62'' |
mm/in |
|
Max chipping diameter hard wood |
450 mm / 17.72'' |
mm/in |
|
Maximum inlet passage |
1200 x 900 mm / 3' 11.24'' x 35.43'' |
mm/in |
|
Knives |
5 |
n° |
|
Hourly throughput |
until 180 |
m³/h |
|
Drum diameter |
820 mm / 32.28'' |
mm/in |
|
Drum width |
1200 mm / 3' 11.24'' |
mm/ft |
|
Hooked steel feeding conveyor width |
1200 mm / 3' 11.24'' |
mm/ft |
|
Hooked steel feeding conveyor length |
2000 mm / 6' 6.74'' |
mm/ft |
|
Weight |
13000 kg / 24912 lbs |
kg/lbs |
|
Hopper width |
2000 |
mm |

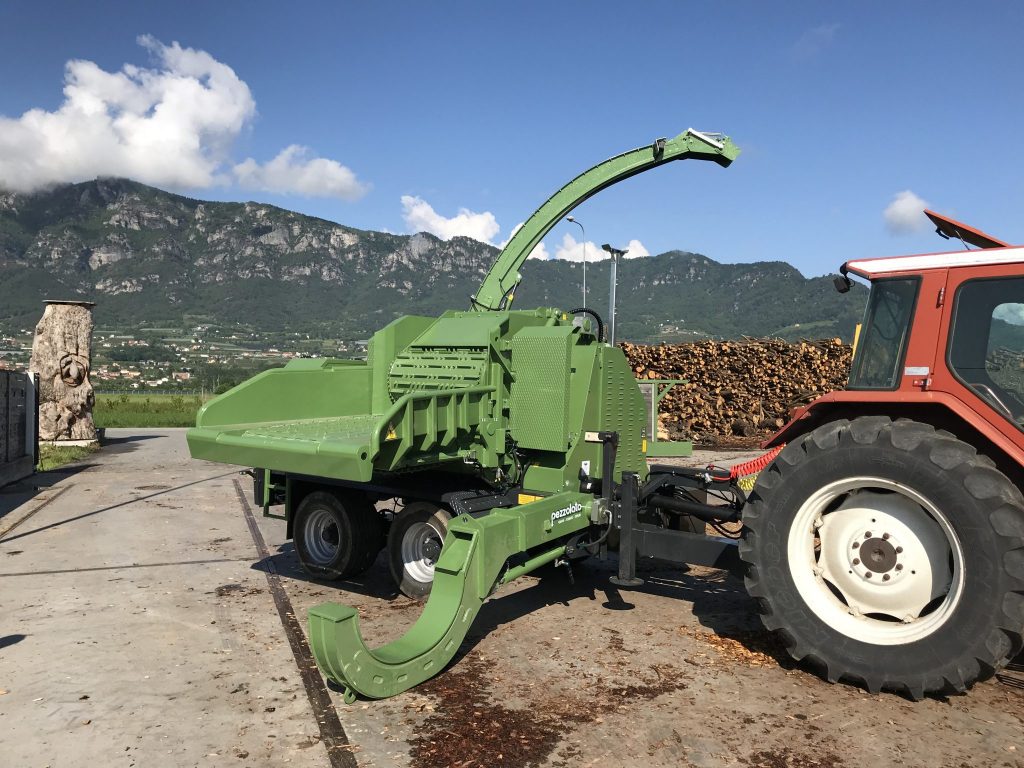

Pezzolato PTH 1200/820
PTH 1200/820 is one of the heavy duty machines within Pezzolato drum chippers, whose drum diameter measures 820 mm (32.28”), Its feeding mouth is 1200 mm (3′ 11.24”) wide.
The PTH 1200/820 is able to produce up to 180 m3 chips per hour.
The Pezzolato solid drum, well-known for reliability, wear-resistance and no maintenance, has been designed to guarantee the best quality wood chips, either small or big dimensions. It is staggered section type in order to distribute the machine’s effort equally, reducing vibrations, noise and consumption.
The sharp cut through the blades and the large drum’s inertia reduce the machine’s efforts and stress, thus confirming the well-known solidity of Pezzolato drum chippers.
The wear spare parts of all machines are cost effective and simple to replace in short maintenance times and cheap.
The integrated computer suggests any ordinary and extraordinary maintenance operations to be performed according to the manufacturer’s maintenance plan.
Maximum chipping diameter: 500 mm
Maximum inlet passage: 1200 x 600 mm
Minimum required tractor power: 150 Hp
