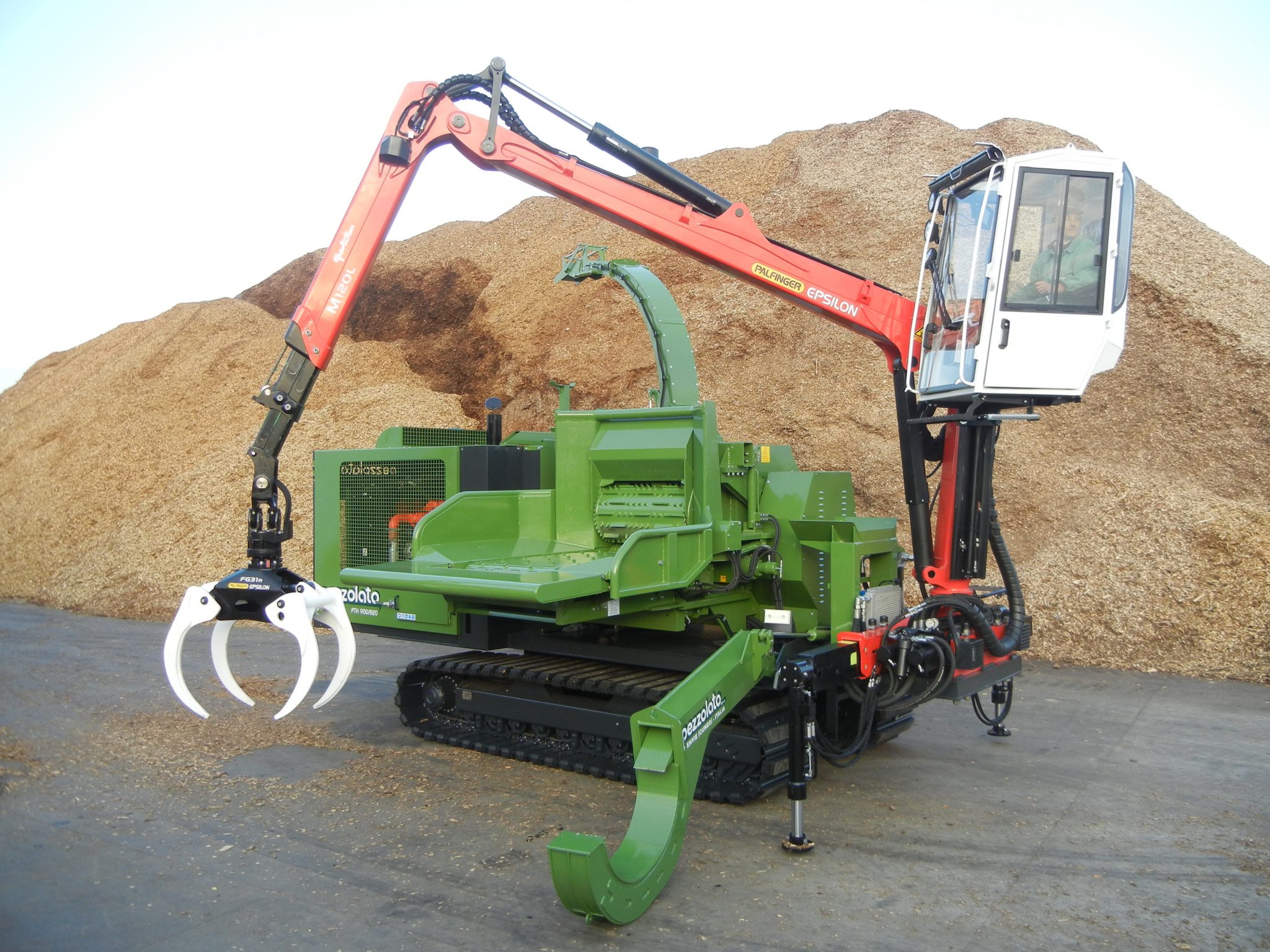

Pezzolato PTH 1000/820

Medium-heavy-duty machines within the Pezzolato line of drum chippers, their drum diameter measures 820 mm.

Able to produce up to 150 m³/h of wood chips, with high yield guaranteed. The feeding mouth and the drum width distinguish the two models.

The Pezzolato solid drum, well-known for reliability, wear-resistance and no maintenance, has been designed to guarantee the best quality wood chips, either small or big dimensions. It is staggered section type in order to distribute the machine’s effort equally, reducing vibrations, noise and consumption.

The sharp cut through the blades and the large drum’s inertia reduce the machine’s efforts and stress, thus confirming the well-known solidity of Pezzolato drum chippers.

The wear spare parts of all machines are cost effective and simple to replace in short maintenance times and cheap.

The integrated computer suggests any ordinary and extraordinary maintenance operations to be performed according to the manufacturer’s maintenance plan.

Diesel engine power

VOLVO 405KW - 551


Diesel engine power

JOHN DEERE 410KW - 550


Max chipping diameter soft wood

600 mm / 23.62''


Max chipping diameter hard wood

450 mm / 17.72''


Maximum inlet passage

1000 x 900 mm / 3' 3.37'' x 35.43''



4 / 8

Hourly throughput

until 150


Drum diameter

820 mm / 32.28''


Drum width

1000 mm / 3' 3.37''


Hooked steel feeding conveyor width

1000 mm / 3' 3.37''


Hooked steel feeding conveyor length

2200 mm / 7' 2.61''



15000 kg / 33069 lbs
