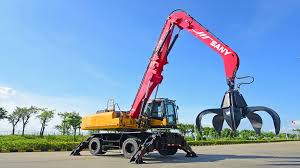

SANY SMHW48G5

INDUSTRY LEADING 5 YEAR WARRANTY

  • High efficiency, low consumption
  • Reinforced undercarriage stability
  • Comprehensive security feature

Enquire now Book a Demo

Benefits & Features

Manufacturer: CUMMINS
Model: L9
Engine power: 252kW / 1,800rpm
Max. torque: 1,526Nm
Emissions standard: EU Stage V
Displacement/number of cylinders: 9.0l / 6
Diesel fuel capacity: 540l
AdBlue fluid: 80l

  • Lifting range: 2,650mm
  • Eye level: 6,120mm
  • Travel speed max: 20km/h
  • Climbing power: 35%
  • Gearbox type: hydrostatic drive, 0–5 km/h, 0–20 km/h
  • Gearbox model: DANA 360
  • Axles Meritor: (CUMMINS)
  • Steering type: front-wheel steering
  • Tires: 12.00-24 solid rubber
  • Hydraulic pressure: 340bar
  • Max. oil flow: 1 x 696l
  • Filling quantity of the hyd. system: 340l
  • Arm: 16.1 / 17.1m / 18m
  • Boom: 8.6m / 9.6m / 10.5m
  • Stick: 7.5m / 7.5m / 7.5m
  •  5 year warranty as standard for complete peace of mind (terms and conditions apply)

SANY SMHW30G5

20km/h (travel speed max.)

28 500 – 30 500kg (total weight)

12 – 14m (loading equipment)

SANY SMH40G5

20km/h (travel speed max.)

38 500 – 40 500kg (overall weight)

15 – 17m (loading equipment)
