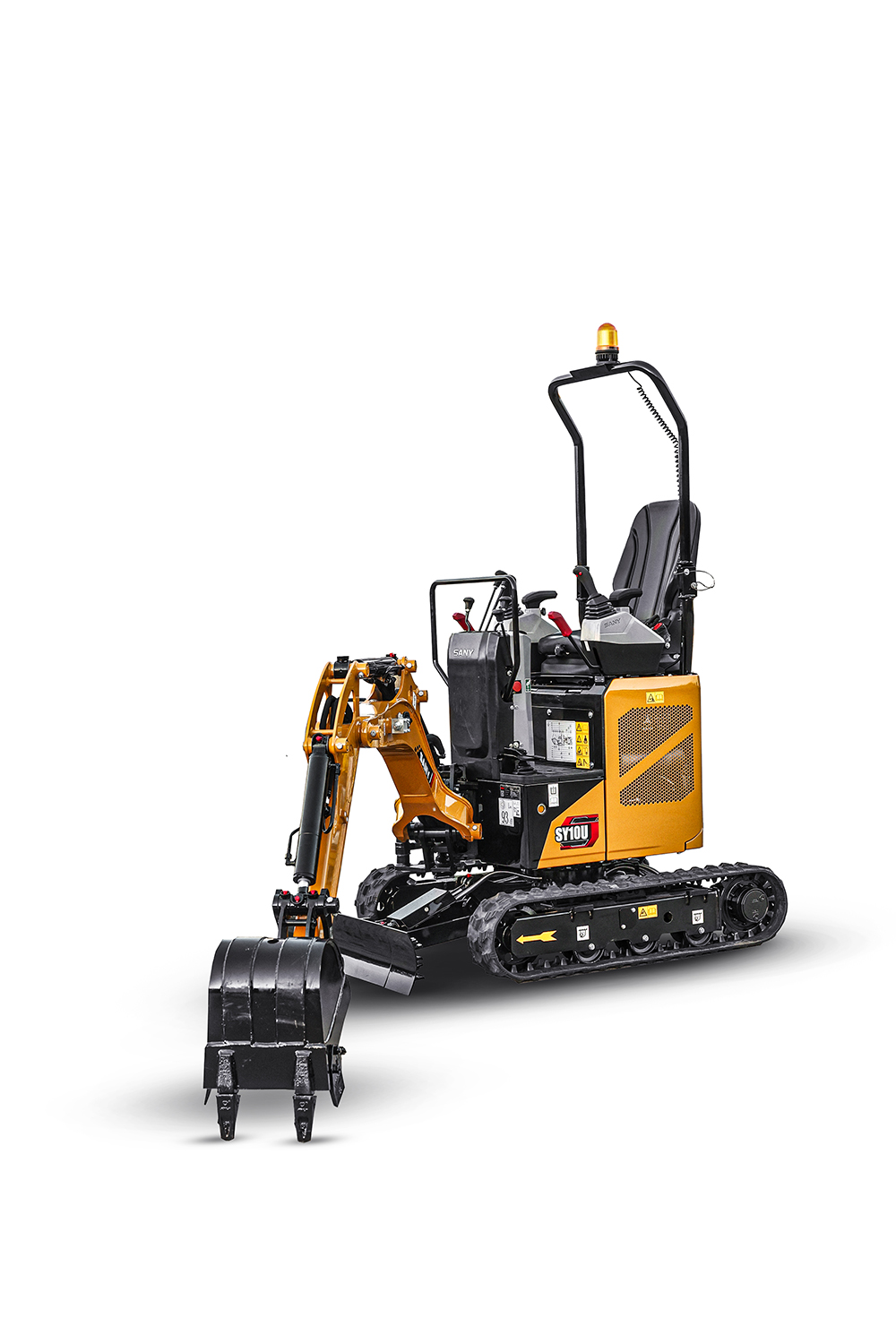

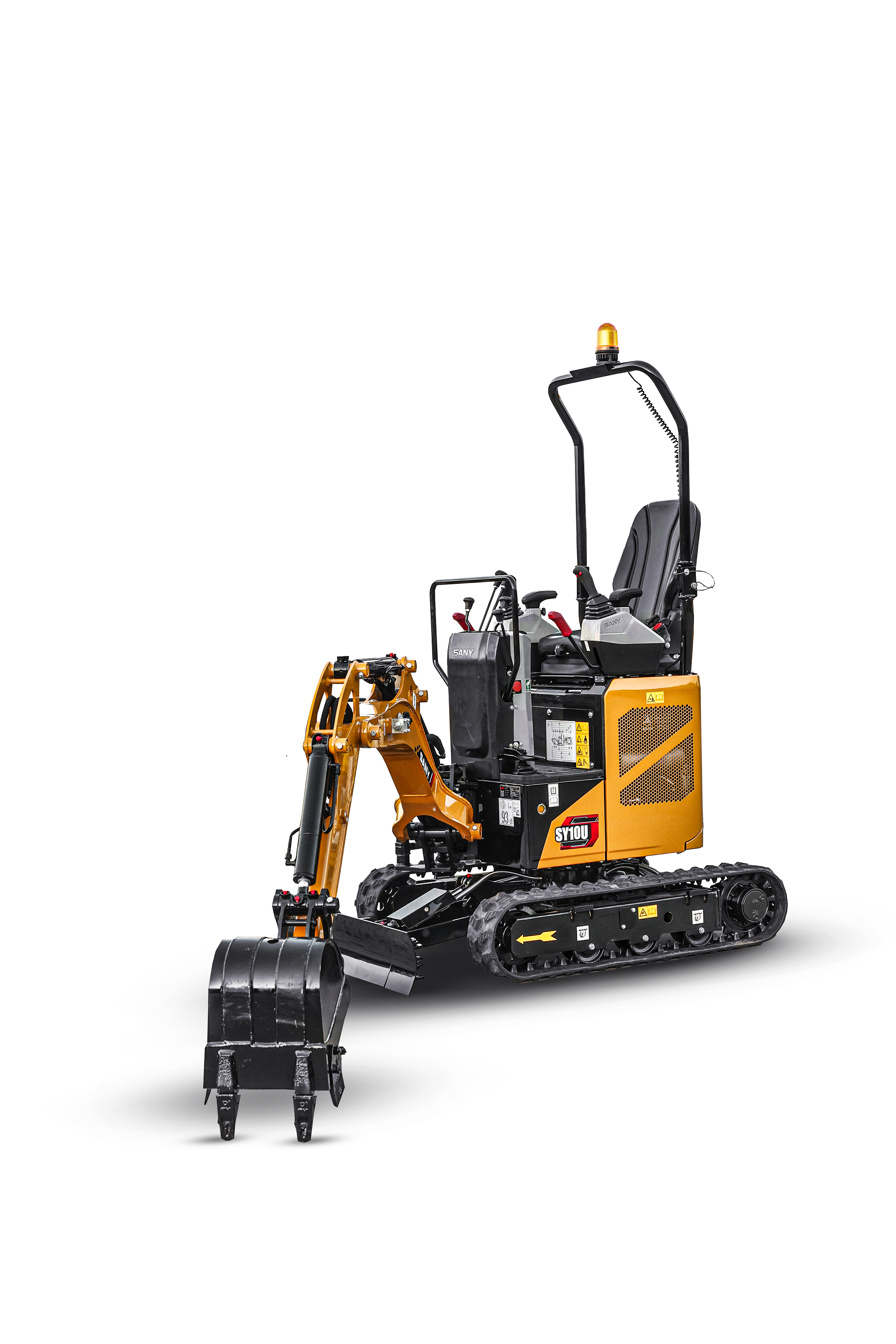

SY10U

INDUSTRY LEADING 5-YEAR WARRANTY

Designed for performance in tight spaces, the ultra compact, 1-tonne SY10U delivers the strength and reliability SANY is known for, now in a smaller, more agile form.

  •  Canopy design with expanding undercarriage (745 mm up to 1100 mm).
  • Powerful, Stage V Kubota engine delivering 8.8 kW of power at 2200 rpm
  • 5 year warranty for complete peace of mind

Enquire Now Book a Demo

Benefits & Features

Engineered for productivity in small or narrow spaces, the SY10U combines compact size with powerful capabilities.

  • Light weight and compact dimensions for easy transportation by trailer and manoeuvrability on site
  • Expanding undercarriage (745 – 1100mm) and adjustable dozer blade for applications that require maximum versatility
  • Stage V Kubota engine and efficient, load sensing hydraulics to maximise on fuel economy
  • 100% steel bodywork for maximum protection and reduced cost of ownership
  • Hammer and bi-directional pipework as standard for maximum versatility of attachments

Designed with a strong focus on safety, the SY10U ensures reliable protection in all operating conditions.

  • ROPS certified canopy for safe operation
  • Optimal visibility for increased on site safety
  • Battery disconnect switch and emergency stop button
  • Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety

The operator space of the SY10U has been thoughtfully engineered for daily use, offering maximum comfort and ergonomic efficiency

  • Responsive and precise controls
  • Ergonomic and comfortable operator’s seat
  • Clear instrumentation and large high resolution colour display
  • Quiet, low vibration engine so noise levels are kept to a minimum
  • LED work lights for maximum versatility in low light conditions
  • Easy access to all maintenance points
  • Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
  • 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Technical Specification

  • Overall length = 3,018 mm
  • Overall width = 745/1,100 mm
  • Overall width of superstructure = 745 mm
  • Overall height above cab = 2,290 mm
  • Track length on ground/overall = 1,041/1,354 mm
  • Track width = 180 mm
  • Blade height = 220 mm
  • Tail swing radius = 550 mm
  • Boom length = 1,460 mm
  • Arm length = 890 mm
  • Bucket capacity = 025 cubic meters

  • digging height = 3,037 mm
  • dig depth = 1,868 mm
  • dig depth, vertical wall = 1,614 mm
  • dumping height = 2,096 mm
  • lifting height of blade = 260 mm

  • Operating weight = 1,195 kg

  • Model = Kubota D722
  • Rated power = 8.8 kW
  • Max. torque = 2,200 rpm

  • Main pump = Load sensing with pilot control
  • Maximum oil flow = 40 l/min
  • Maximum operating pressure = 26 MPa

  • Swing speed =10 rpm
  • Max. ground speed = 3.4 km/h
  • Max. traction = 8.8 kN
  • Climbing ability = 30°

  • Tank = 13 l
  • Engine coolant = 3.8 l
  • Engine oil = 3.8 l
  • Hydraulic tank = 11 l
