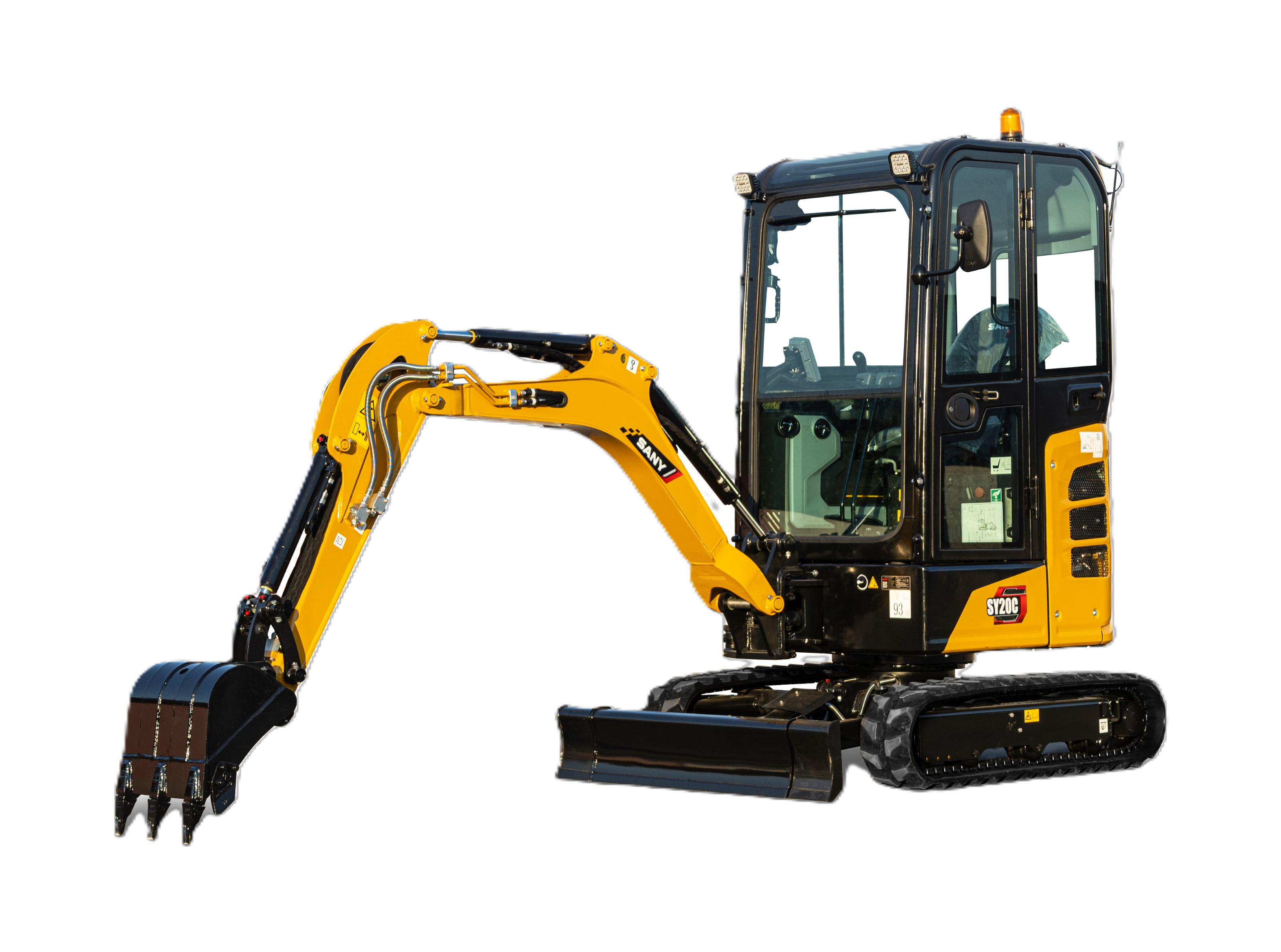

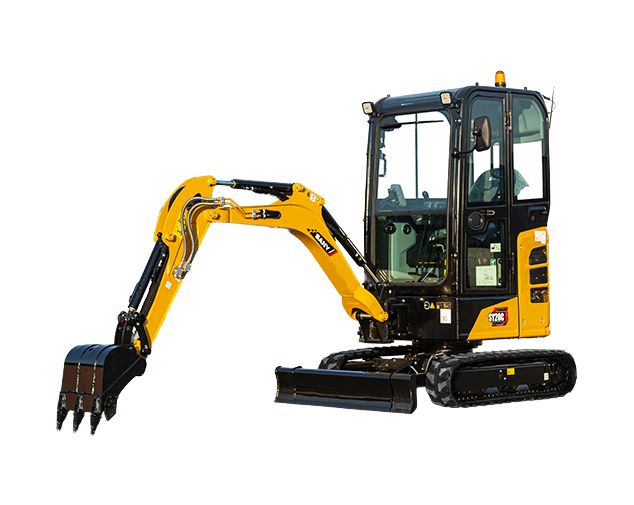

SY20C

INDUSTRY LEADING 5-YEAR WARRANTY

Built to excel in confined spaces, the SY20C packs the trusted strength and reliability of SANY into a smaller, more manoeuvrable design:

  • Powerful, Stage V YANMAR engine delivering 14.6 kW of power at 2400 rpm
  • Expanding undercarriage (1040 – 1350mm) and adjustable dozer blade for maximum versatility
  • 5 year warranty for complete peace of mind

Enquire Now Book a Demo

Benefits & Features

Designed to maximise productivity in tight or confined areas, the SY20C features a conventional tail swing that delivers robust performance in a compact form.

  • Light weight and compact dimensions for easy transportation by trailer and manoeuvrability on site
  • Expanding undercarriage (1040 – 1350mm) and adjustable dozer blade for applications that require maximum versatility
  • Stage V YANMAR engine and efficient, load sensing hydraulics to maximise on fuel economy
  • 100% steel bodywork for maximum protection and reduced cost of ownership
  • Hammer and bi-directional pipework as standard for maximum versatility of attachments

The SY20C is engineered with a strong emphasis on safety, ensuring dependable protection under all operating conditions.

  • ROPS/FOPS certified canopy for safe operation
  • Optimal visibility for increased on site safety
  • Battery disconnect switch and emergency stop button
  • Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety



The SY20C’s operator cab is carefully designed for everyday use, providing exceptional comfort and ergonomic support throughout the workday.

  • Responsive and precise controls
  • Ergonomic and comfortable operator’s seat
  • Clear instrumentation and large high resolution colour display
  • Air conditioning included as standard
  • Quiet, low vibration engine so noise levels are kept to a minimum
  • LED work lights for maximum versatility in low light conditions

Easy access to all maintenance points

Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category

5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Technical Specification

  • Overall length: 3,695mm
  • Overall width: 1,040/1,350mm
  • Overall width of superstructure: 1,040mm
  • Overall height above cab: 2,430mm
  • Track length on ground/overall: 1,220/1,585mm
  • Track width: 230mm
  • Blade height: 270mm
  • Tail swing radius: 905mm
  • Boom length: 1,770mm
  • Arm length: 1,160mm
  • Bucket capacity: 0.04 cubic meters

  • Digging height; 3,530mm
  • Dig depth:2,585mm
  • Dig depth, vertical wall: 2,100mm
  • Dumping height: 2,475mm
  • Lifting height of blade: 290mm

Operating weight: 1,975kg

  • Model = Kubota D722
  • Rated power = 8.8 kW
  • Max. torque = 2,200 rpm

  • Main pump: load sensing with pilot control
  • Maximum oil flow: 66 l/min
  • Maximum operating pressure: 24.5 MPa

  • Swing speed: 10rpm
  • Max. ground speed: 4.0km/h
  • Max. traction: 17.9kN
  • Climbing ability: 30°

  • Tank: 25l
  • Engine coolant: 5.4l
  • Engine oil: 3.4l
  • Hydraulic tank: 21l

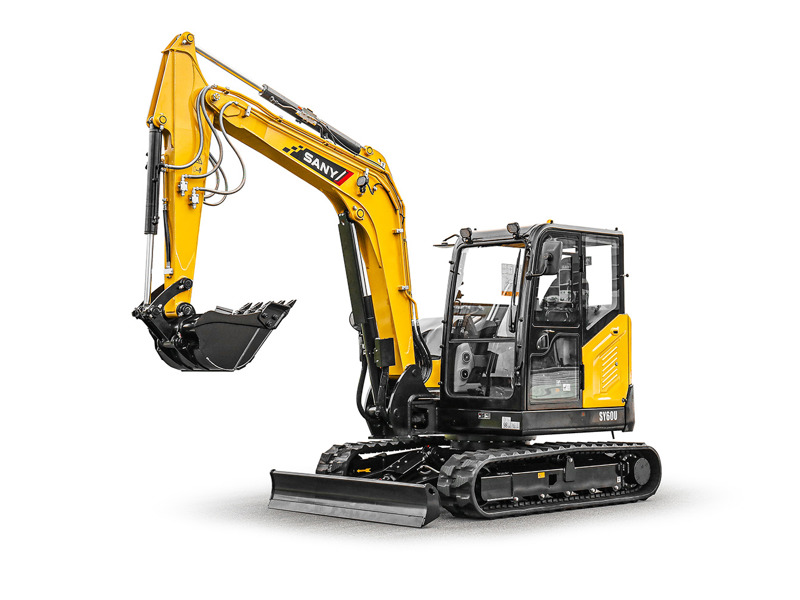

Sany SY60U

Available for Demo

Yanmar 4TNV98C

42.4kW / 200rpm

6,300 kg

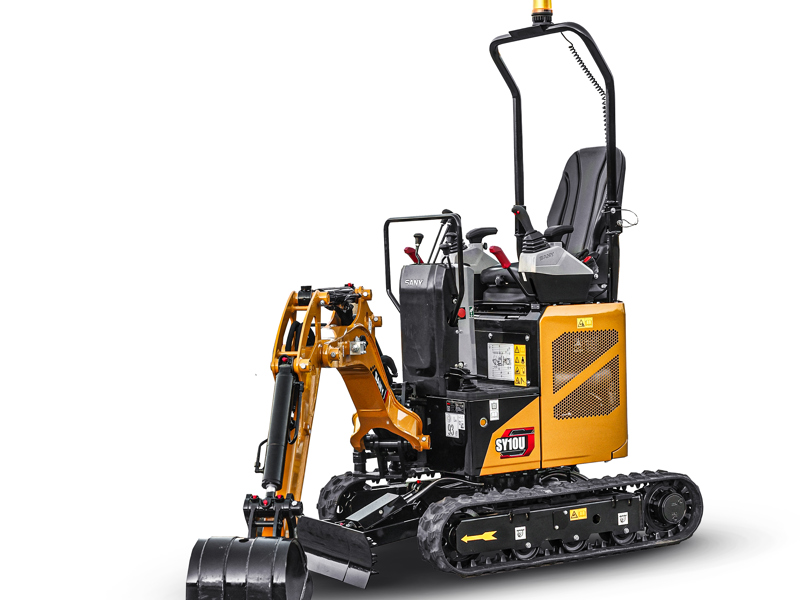

Sany SY10U

Available for Demo

Kubota D722

8.8kW/2,200 rpm

1,195kg

Sany SY16C

Available for Demo

Stage V YANMAR

14.6 kW / 2,400 rpm

1865 kg

Sany SY18C

Available for Demo

Stage V YANMAR

14.6 kW / 2,400 rpm

1910 - 1980 kg

Sany SY18U

Available for Demo

Stage V YANMAR

14.6 kW / 2,400 rpm

1925 kg
