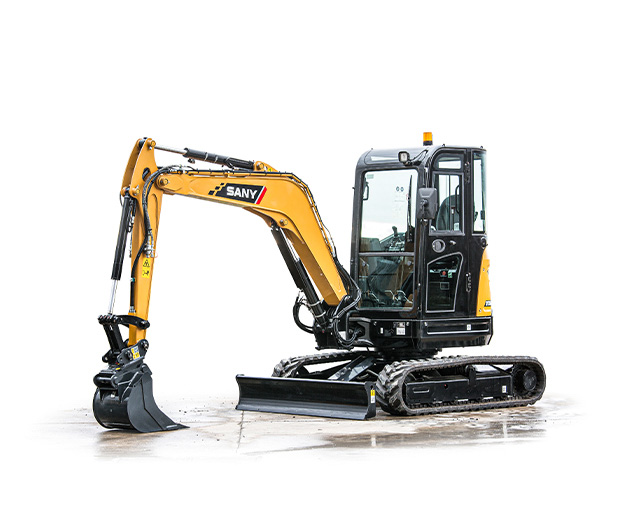

SANY SY35U

INDUSTRY LEADING 5-YEAR WARRANTY

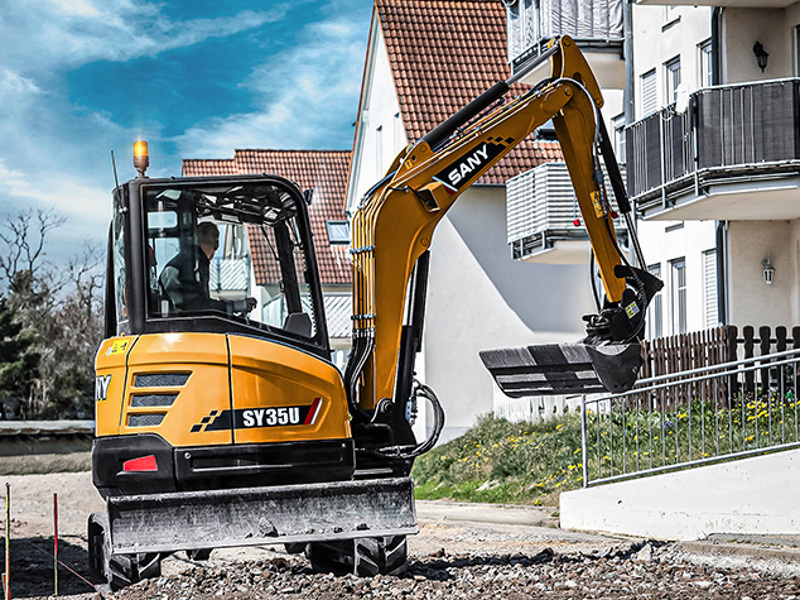

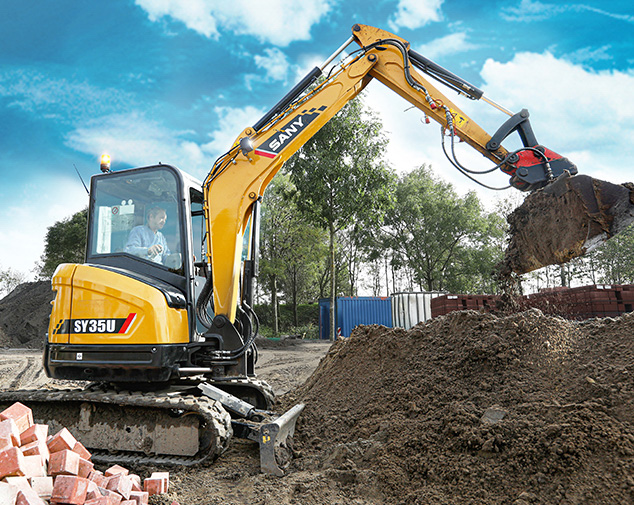

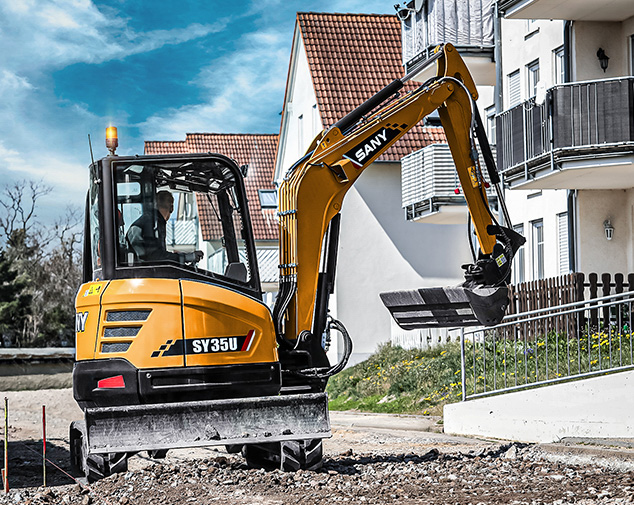

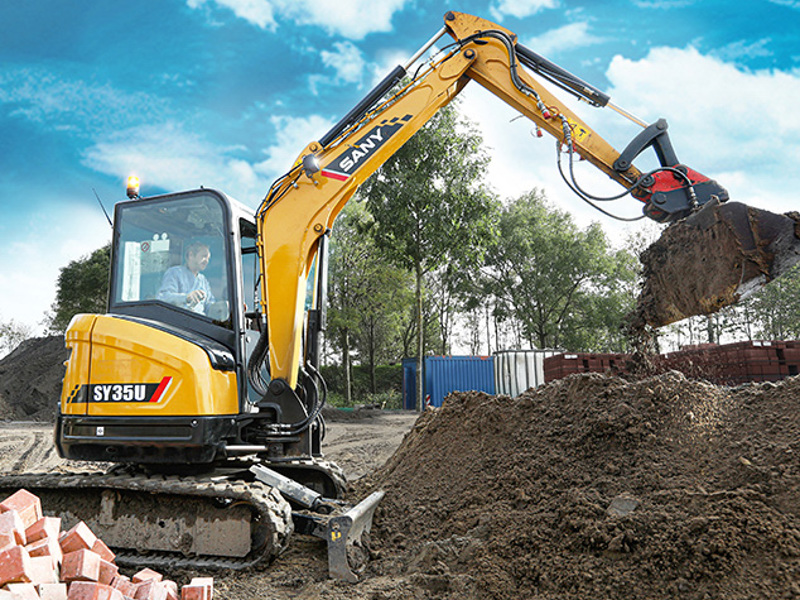

The SANY SY35U short-tail-swing excavator is a little powerhouse! Its compact dimensions make it the perfect tool wherever power and manoeuvrability need to come together. It can be equipped with attachments such as a hammer or grapple for maximum versatility on construction sites as well as in smaller demolition and civil engineering works.

  • Stage V YANMAR 3TNV88F engine
  •  Advanced load-sensing hydraulic system designed to improve performance
  •  5 year warranty for complete peace of mind

Download Brochure Enquire Now Book a Demo

BENEFITS & FEATURES

The SY35U is a versatile workhorse and a future-proof investment in performance, reliability and productivity.

  • Lightweight and compact dimensions for easy manoeuvrability and increased flexibility on site
  • Track width of 1,420mm and well thought-out weight distribution provide first-class stability – even when working at maximum horizontal reach
  • Stage V YANMAR engine and efficient, load sensing hydraulics to maximise on fuel economy
  • 100% steel bodywork for maximum protection and reduced cost of ownership

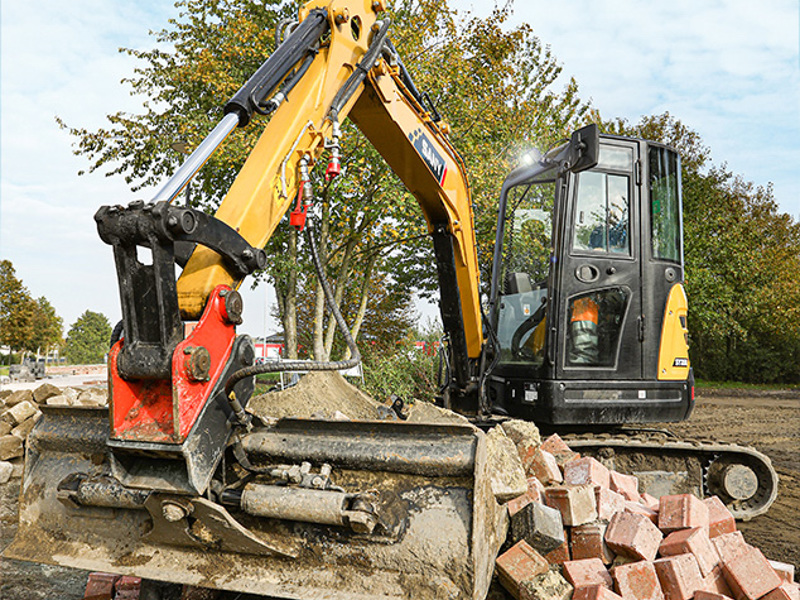

  • Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application

Safety on site is always of paramount importance, which is why the SANY SY35U is loaded with safety features for productive, safe working in every terrain.

  • ROPS/FOPS certified cab for safe operation
  • Optimal all-round visibility for increased on site safety
  • Battery disconnect switch
  • Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety

The generously designed cab of the SY35U offers operating comfort geared to practical use.

  • Responsive and precise controls
  • Ergonomic and comfortable operator’s seat
  • Clear instrumentation and large high resolution colour display
  • Quiet, low vibration engine so noise levels are kept to a minimum
  • Manual air conditioning for improved operator comfort
  • LED work lights for maximum visibility in low light conditions
  • Easy access to all maintenance points
  • Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
  • 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Technical Specification

  • Overall length = 4,915 mm
  • Overall width = 1,720 mm
  • Overall width of superstructure = 1,548 mm
  • Overall height above cab = 2,515 mm
  • Rear length = 860 mm
  • Track width = 1,420 mm
  • Landing gear length = 2,155 mm
  • Landing gear width (dozer blade) = 1,720 mm
  • Blade height = 350 mm
  • Track link width = 300 mm
  • Min. ground clearance = 295 mm
  • Tail swing radius = 886 mm
  • Distance between track wheel and guide wheel (centre) = 1,670 mm
  • Boom length = 2,540 mm
  • Arm length = 1,400 mm
  • Bucket capacity = 0.12 cubic meters

  • Max. ground level range = 5,465 mm
  • Max. excavation depth = 3,105 mm
  • Max. vertical range = 4,855 mm
  • Max. dumping height = 3,460 mm
  • Minute radius of gyration = 2,420 mm
  • Max. excavation depth, vertical wall = 2,700 mm
  • Min. working machine height. Radius of gyration = 3,690 mm

  • Operating weight = 3,860 kg

  • Model = Yanmar 3TNV88F
  • Rated power = 18.2 kW
  • Max. torque = 94.2 Nm/1,320 rpm
  • Shift = 1,642 l
  • Batteries = 1 x 12 V / 80Ah

  • Main pump = 1 Adjustable axial piston pump
  • Max. oil flow = 1 x 70 l/min
  • Travel drive = 2 Adjustable axial piston pump
  • Rotary gear = 1 Adjustable axial piston pump

  • Boom circuit = 245 bar
  • Slewing circuit = 206 bar
  • Drive circuit = 245 bar
  • Pilot control circuit = 35 bar

  •  Swing speed = 9 rpm
  • Max. ground speed = 4.4 km/h faster, 2.2 km/h slower
  • Max. traction = 42.5 kN
  • Climbing ability = 30°
  • ISO bucket separation force = 30.4 kN
  • ISO arm tear = 18.2 kN

  • Tank = 40 l
  • Engine coolant = 6.7 l
  • Engine oil = 6.7 l
  • Travel drive (each side) = 0.7 l
  • Hydraulic system = 55 l
  • Hydraulic tank = 40 l
