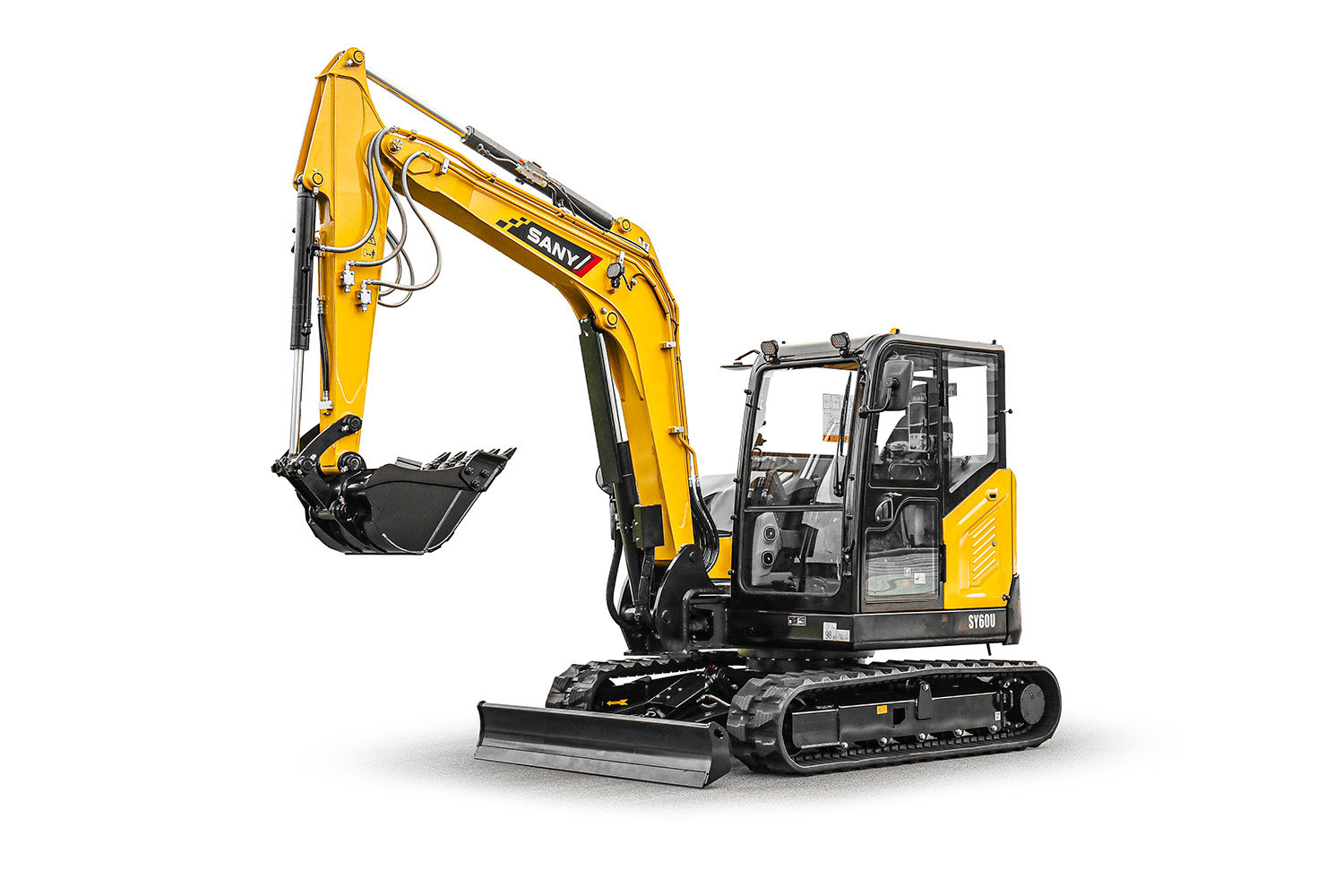

Sany SY60U

INDUSTRY LEADING 5-YEAR WARRANTY

The SY60U reduced tail swing excavator delivers incredible fuel efficiency while offering the power and performance you need on site. This 6-tonne machine is perfectly suited for excavation, land clearing, and demolition work and easily proves itself to be a worthwhile investment with its high level of productivity.

  • Compact, reduced tail swing excavator with swing boom functionality
  • Powerful, Stage V YANMAR engine delivering 42.4 kW of power at 2000 rpm
  • 5 year warranty for complete peace of mind

Enquire Now Book a Demo

Benefits & Features

The SY60U is a reduced tail swing excavator that features advanced swing boom functionality for enhanced versatility and precision. Combined with its powerful drive and compact dimensions, this excavator ensures high productivity during every day work on site.

  • Compact design allows for easy manoeuvrability and increased versatility
  • Stage V YANMAR engine and efficient, load sensing hydraulics to maximise on fuel economy
  • 100% steel bodywork for maximum protection and reduced cost of ownership
  • The position of the boom enables the excavator to lift higher loads over longer reaches than comparable machines in this weight class

With its superb visibility, precision control and other safety design features the SY60U makes all operators feel in total control.

  • ROPS/FOPS certified cab for safe operation
  • Rear view camera for optimal visibility
  • Battery disconnect switch
  • Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety

For operators who spend all day in the seat, welcome to the comfort zone of the SY60U!

  • Responsive and precise controls
  • Ergonomic and comfortable operator’s seat
  • Clear instrumentation and large high resolution colour display
  • Quiet, low vibration engine so noise levels are kept to a minimum
  • Manual air conditioning for improved operator comfort
  • LED work lights for maximum visibility in low light conditions
  • Easy access to all maintenance points
  • Low maintenance requirements and longer service intervals
  • Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
  • 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Technical Specification

  • Overall length = 5,830 mm
  • Overall width = 2,000 mm
  • Overall width of superstructure = 2,000 mm
  • Overall height above cab = 2,530 mm
  • Track length on ground/overall = 2,055/2,580 mm
  • Track width = 400 mm
  • Blade height = 340 mm
  • Tail swing radius = 1,350 mm
  • Boom length = 3,000 mm
  • Arm length = 1,700 mm
  • Bucket capacity = 0.22 cubic meters

  • Max. digging height = 5,695 mm
  • Max. dig depth = 3,990 mm
  • Max. dig depth, vertical wall = 3,130 mm
  • Max. dumping height = 3,970 mm
  • Max. lifting height of blade = 400 mm

  • Operating Weight = 6,300 kg

  • Model = Yanmar 4TNV98C
  • Rated power = 42.4 kW
  • Max. torque = 2,000 rpm

  • Main pump = Axial Piston – Variable Displacement
  • Maximum oil flow = 148 l/min
  • Maximum operating pressure = 27 MPa

  • Swing speed = 10 rpm
  • Max. ground speed = 3.8 km/h
  • Max. traction = 30 kN
  • Climbing ability = 30°

  • Tank = 85 l
  • Engine coolant = 13 l
  • Engine oil = 8.5 l
  • Hydraulic tank = 105 l
