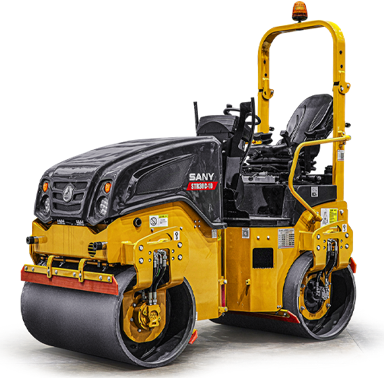

Sany STR30C-10

INDUSTRY LEADING 5-YEAR WARRANTY

The SANY STR30C-10 is in a league of its own with the highest static linear load in its width class, 15% more than comparable machines. With anti-long idle control as standard and its built-in heavy weight performance, you can save as you roll, reducing fuel usage and emissions.

  • Double travel levels
  • LED work and road lights
  • 500 hour service intervals

Benefits & Features

Technical Specification

  • Model = Kubota D1803-CR-T-EW01
  • Rated power = 36.5 kW
  • Emission = EU Stage V / EPA Tier 4
  • Storage battery (V x Ah) = 12 x 60

  • Average static linear load  = 1,310 kg/m

  • Water tank = 230 l
  • Fuel tank = 60 l
  • Hydraulic oil tank = 50 l

  • 3,120 kg

  • Vibration frequency  = 55/67 Hz
  • Nominal amplitude = 0.5 mm
  • Exciting force  = 28/46 kN
  • Travel speed = 0-12 km/h
  • Gradeability (vibrate) = 30%
  • Gradeability (not vibrate) = 40%

  • Length = 2,544 mm
  • Width = 1,312 mm
  • Wheelbase = 1,710 mm
  • Height  = 2,617 mm
  • Diameter of vibratory drum = 700 mm
  • Width of vibratory drum = 1,200 mm
  • Thickness of drum = 14 mm
  • Ground clearance (minimum) = 248 mm
