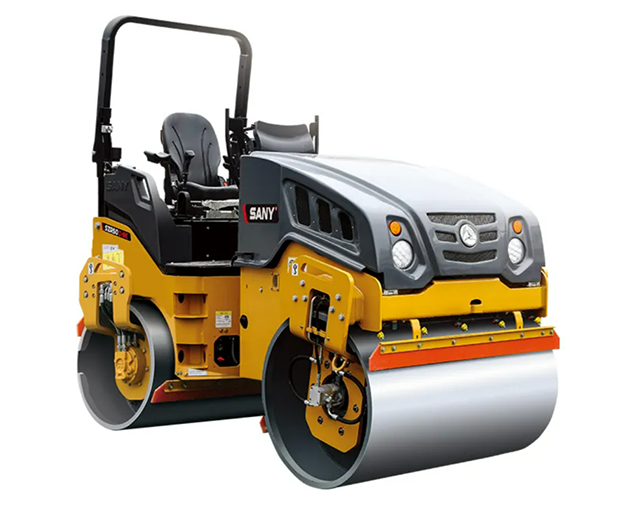

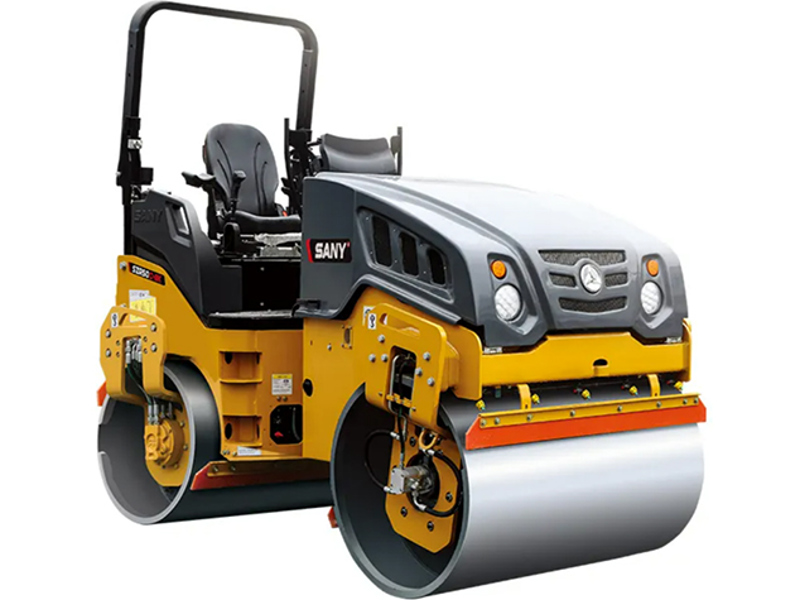

STR50C-8K

INDUSTRY LEADING 5-YEAR WARRANTY

The SANY STR50C-8K is in a league of its own with its high specification as standard and peak power at low revs. With anti long idle control as standard you can reduce fuel usage and emissions and save as you roll.

  • Double travel levels
  • LED work and road lights
  • 500 hour service intervals

Benefits & Features

Where efficiency and compaction performance are needed the STR50C-8K has it covered.

  • Heavyweight performance with large diameter drums
  • Stage V, Kubota engine with anti-long idle control
  • Max power at low revs for improved efficiency
  • Poclain & Danfoss hydraulic motors and pumps for reliable performance

The STR50C-8K is fully equipped for safe working.

  • Foldable ROPS with multiple pre-cut mounting holes for accessories
  • Excellent visibility all around
  • Lockable battery isolator and emergency stop button
  • Reverse alarm, warning beacon and green seat belt beacon

Ease of use and flexibility make the STR50C-8K a comfortable place to work.

  • Dual operator levers
  • Sliding comfort seat
  • LED working and road lights for maximum productivity in low and/or poor light conditions
  • Clear 7-inch information display for simple and easy to use operation
  • Maintenance free, bolted centre joint
  • 500 hour service intervals
  • PIN code enabled ignition
  • 5 year / 3000 hour warranty as standard for complete peace of mind (terms and conditions)

Technical Specification

  • Model = Kubota D2607
  • Rated power = 36.5 kW
  • Emission = EU Stage V / EPA Tier 4
  • Storage battery (V x Ah) = 12 x 60

  • Average static linear load  = 1,630 kg/m

  • Water tank = 310 l
  • Fuel tank = 68 l
  • Hydraulic oil tank = 40 l

  • 4,500 kg

  • Steering angle = +32°
  • Swing angle = +8°
  • Min. turning outside diameter = 2,800 mm

  • Vibration frequency = 55/60 Hz
  • Nominal amplitude = 0.5 mm
  • Exciting force  = 47/68 kN
  • Travel speed = 0-12 km/h
  • Gradeability (vibrate) = 30%
  • Gradeability (not vibrate) = 40%

  • Length = 2,900 mm
  • Width = 1,484 mm
  • Wheelbase = 2,000 mm
  • Height = 2,700 mm
  • Diameter of vibratory drum = 900 mm
  • Width of vibratory drum = 1,380 mm
  • Thickness of drum = 18 mm
  • Ground clearance (minimum) = 350 mm
