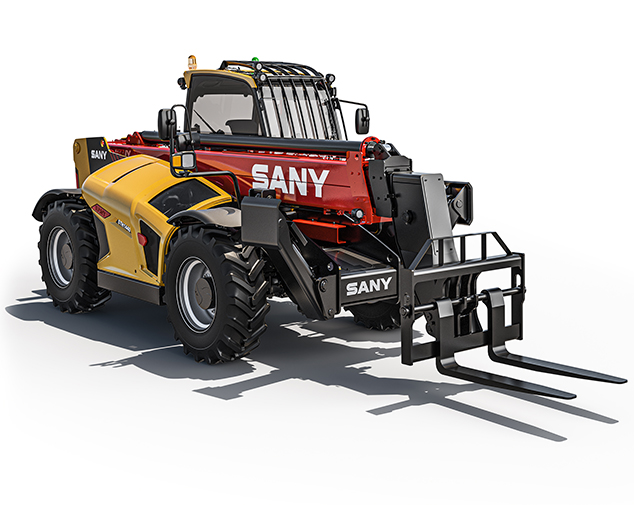

SANY STH1840

3-YEAR WARRANTY

The STH1440 and STH1840 are the first machines to feature in the new telehandler series from SANY, designed to offer the ultimate in safety, comfort and performance. Thanks to their compact and innovative design, SANY telehandlers are the ideal solution for demanding jobs and precision work, whether that’s easy loading, moving or stacking and their versatility is increased further due to their ability to use a wide variety of attachments.

  • Stage V Deutz engine for superb performance and greater fuel efficiency
  • Ergonomic operators space offering a wealth of features as standard, boosting safe operation
  • 3 year warranty for complete peace of mind

BENEFITS & FEATURES

Technical Specification

  • Model = Deutz TD 3.6L
  • Rated power = 55 kW / 2,600 rpm
  • torque = 340 Nm/1,600 rpm
  • Battery = 12 V

  • Hydraulic pump type = Gear with priority valve
  • System pressure = 260 bar
  • Hydraulic flow = 110 l/min

  • Fuel tank = 150 l
  • Hydraulic system = 120 l

  • OPERATING WEIGHT = 12,300 kg

  • Maximum lift capacity = 4,000 kg
  • Lift capacity at maximum height = 2,500 kg
  • Lift capacity at maximum reach = 550 kg
  • Lift height = 17,550 mm
  • Carriage crowd angle = 37°
  • Carriage dump angle = 12,5°
  • Frame levelling +/- = 9°
  • Outside turning radius (4WS) = 3,850 mm
  • Auxiliary hydraulic flow = 60 l/min
  • Auxiliary hydraulic pressure = 28 MPa
  • Noise at driving position (55 kW) = 75 Lpa
  • Noise to environment (55 kW) = 83 Lwa

  • Length to front of carriage = 6,200 mm
  • Overall width = 2,420 mm
  • Height over cab without beacon = 2,595 mm
  • Height over cab with beacon = 2,720 mm
  • Wheelbase = 2,750 mm
  • Overall cabin width = 950 mm
  • Ground clearance = 370 mm
  • Overall width stabilisers fully deployed = 3,400 mm
  • Turning radius over tyres = 3,850 mm
  • Operating weight (with Forks) = 12,300 kg
