Jo Beau B24-100

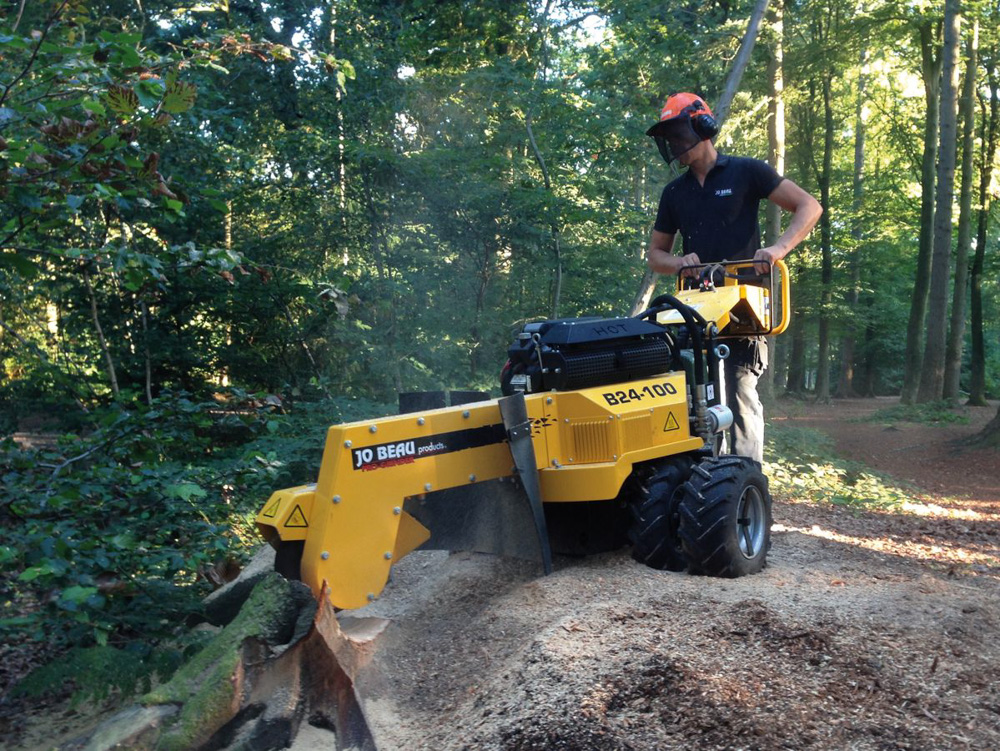

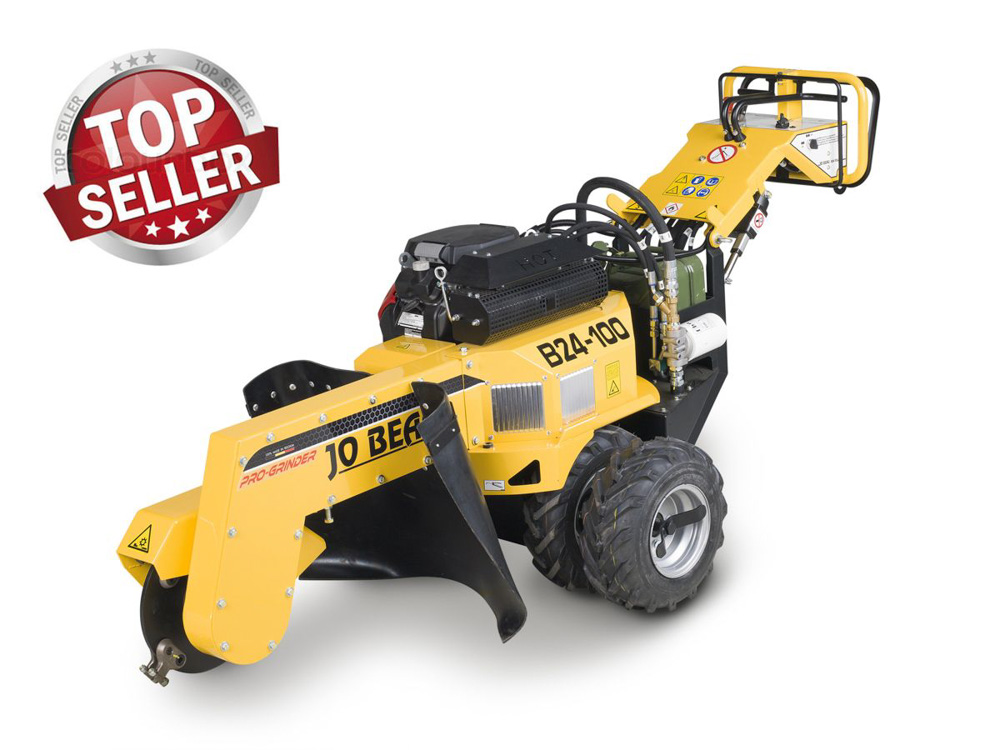

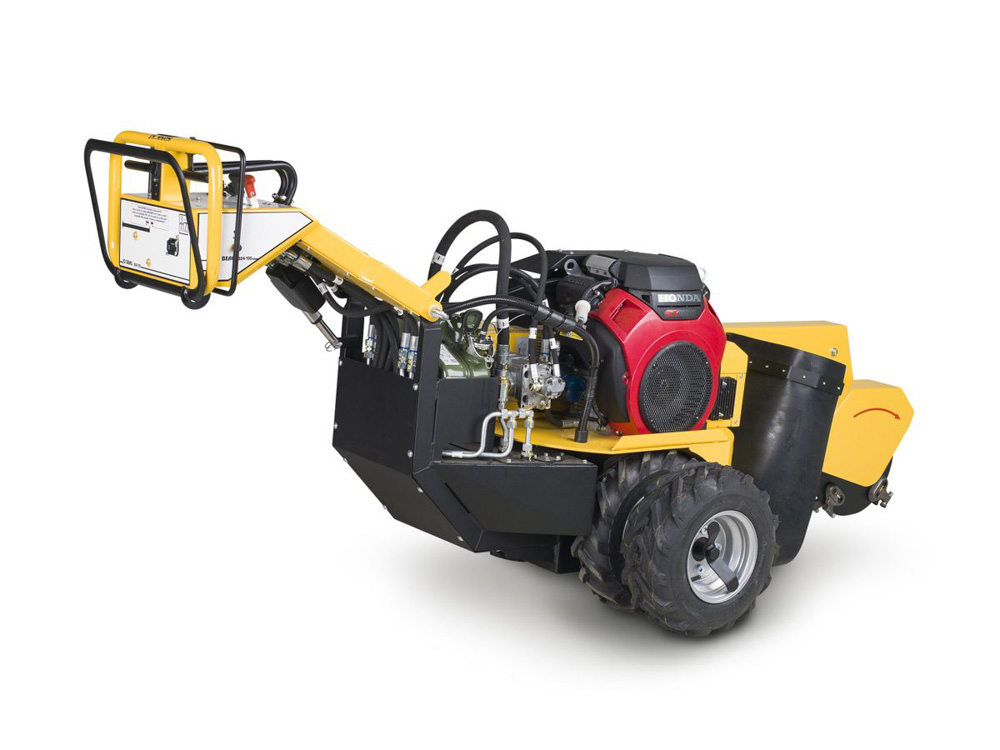

The B24-100 is the most compact, self propelled stump grinder in the market. With a width of only 64cm you pass this device without any problem through all doors and garden gates. With the optional assembly wheels with wide tractor profile tires even rough ground is no problem. The powerful 2 cylinder Honda GX690 engine with 24Hp grinds in a never seen time a stump 45cm deep with a working width of 100cm. The grinding arm can be moved hydraulically from the operation console. To ensure that the working position is as ergonomic as possible, its position be changed automatically. Following performance conditions (average volumes):› ø300mm: 8 min
› ø600mm: 20 min
› ø1000mm: 75 min

✓ Compact for transport
✓ Hydraulic semi automatic control and self propelled
✓ Wide air tires (option for double wheels)
✓ Only 64cm wide (108cm with double wheels)
✓ Disc transmission for double industrial V-belt
✓ Teeth can be turned 3 x 120° and can be ground again
✓ The machine has 3 lifting eyes


The Greenteeth® teeth can be easily turned 3 x (120°) and can be ground again. The separate metal jerrycan avoids fire danger when filling in comparison with other brands. With other words: the B24-100 fulfils also here the requirements of the professional gardener, arborist and rental company.

All Jo Beau machines are built according to the valid European guidelines and have a CE-certificate. All machines are supplied with manual and parts list.

Technical Specification

  • Max. working width : 1000 mm (39.37 In)
  • Max. grinding depth : 450 mm (17.71 In)
  • Max. grinding height : 350 mm (13.78 In)
  • Control : Semi automatic

  • Brand & type : Honda GX690 - 2 cyl. 4-stroke
  • Power : 16,5 kW (24 Hp)
  • Drive : Petrol engine
  • Consumption : 6,7 L/h - 3600 RPM
  • Noise level Lw (A) : 106 dB(A)

  • Dimensions (LxWxH) : 2340 x 640 x 1050 mm (1080 mm wide incl. double wheels) (92.12 x 25.10 x 41.33 In - 42.52)
  • Weight : 330 kg (727 Lbs)
  • Drive traction : Hydraulic > 0-3 km/h
  • Fuel supply : Removable metal jerrycan 10L
  • Brakes : Hydraulic
  • Chassis : Powder-coated steel
  • Grinding Technology : Jo Beau® grindertechnology™
  • Teeth : Greenteeth® 700, 8 pcs
  • Grindwheel diameter : 420 mm (16.54 In)
  • Disc transmission : Double industrial V-belts on electromagnetic coupling
  • Foldable and height-adjustable handlebar : Standard - electric
