Jo Beau T500

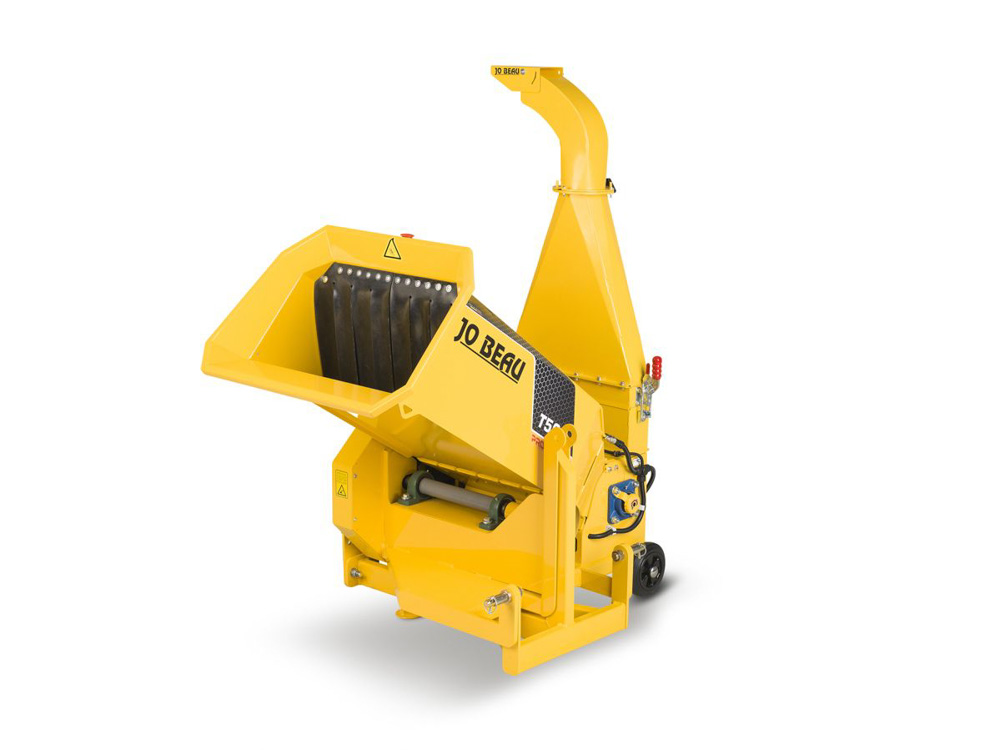

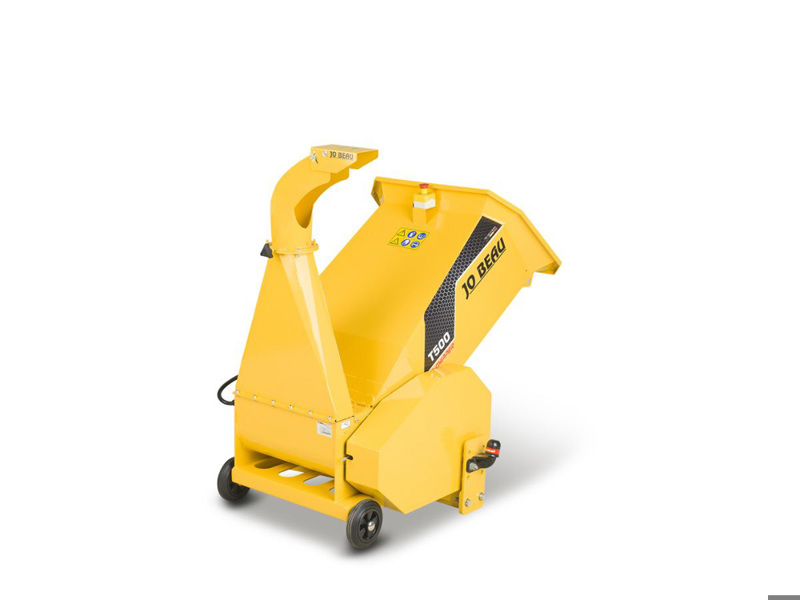

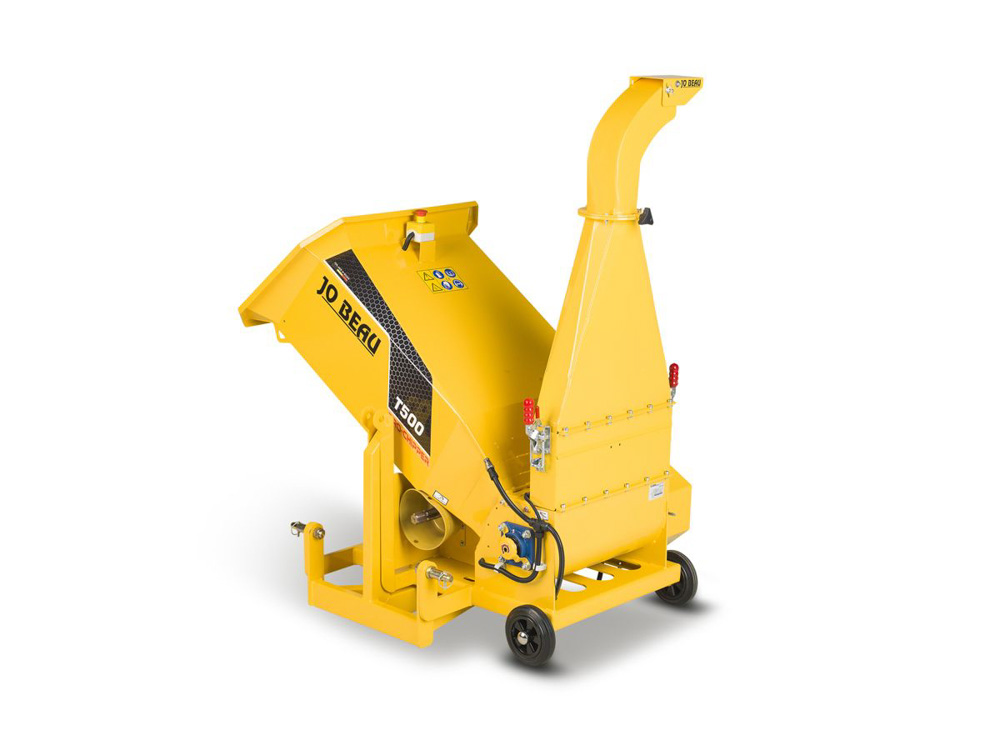

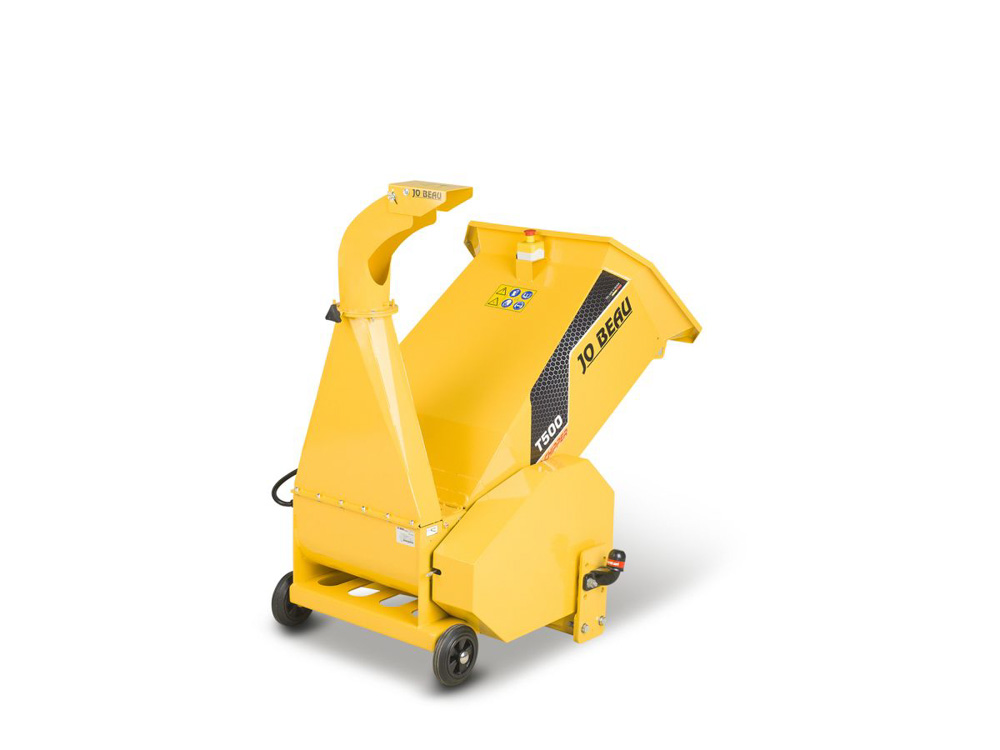

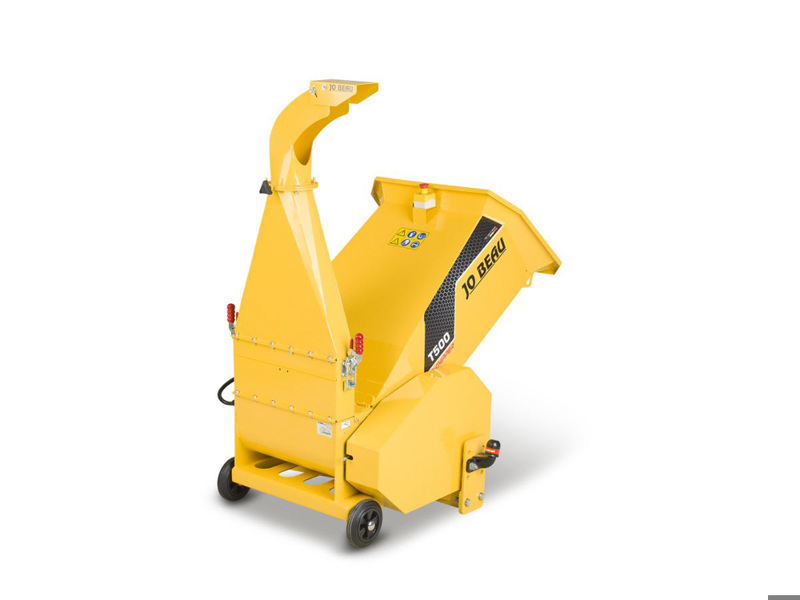

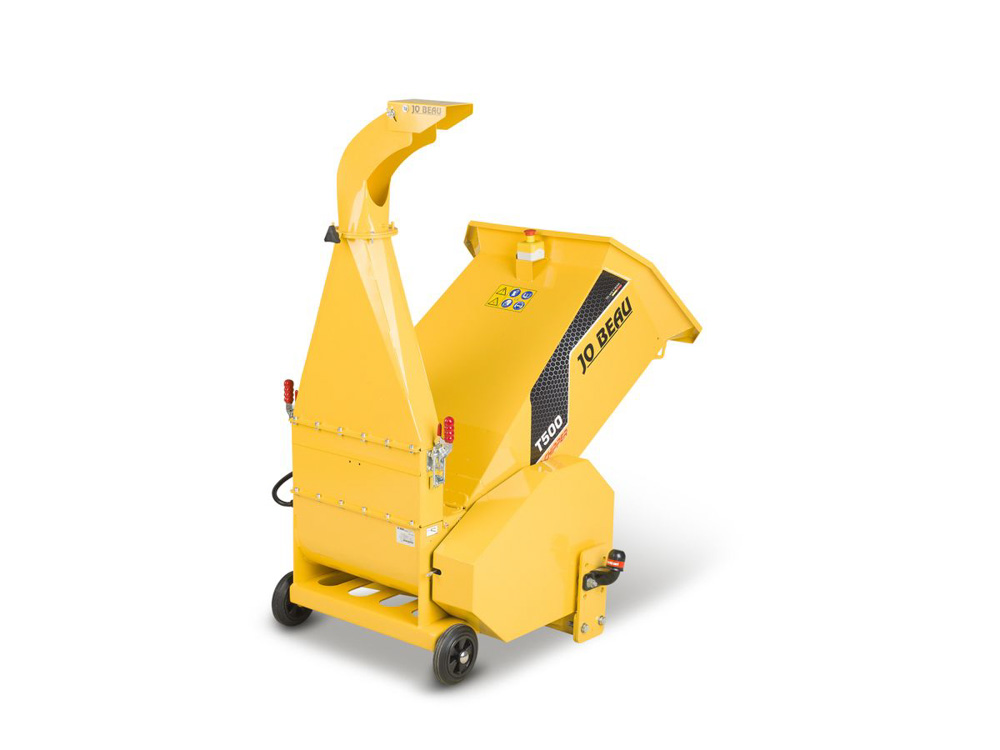

The T500 pro-chipper is the big brother of the T300 and has been specially designed by Jo Beau® for tractors or other tool carriers with pto/shaft. The recommended tractor power of the T500 starts from 30Hp. The Jo Beau® drum technology™ guarantees that branches with a diameter of maximum 14cm can be perfectly converted into high quality wood chips.

✓ Three point suspension
✓ Propshaft driven
✓ Low infeed hopper with wide inlet opening
✓ Only 89cm wide
✓ Hinged infeed hopper for an easy maintenance
✓ Unique Jo Beau drum technology™
✓ Drum ball bearings in heavy industrial version
✓ Hardened rotating knives
✓ Several practical options available


The wide inlet opening of 77cm to 43cm is specially designed for an even bigger volume of side branches. The T500 has practically the same technical specifications as the premium model M500 pro-chipper, but with pto shaft drive! The heavy welded structure of the T500 are some of the elements Jo Beau is always striving for in its designs.

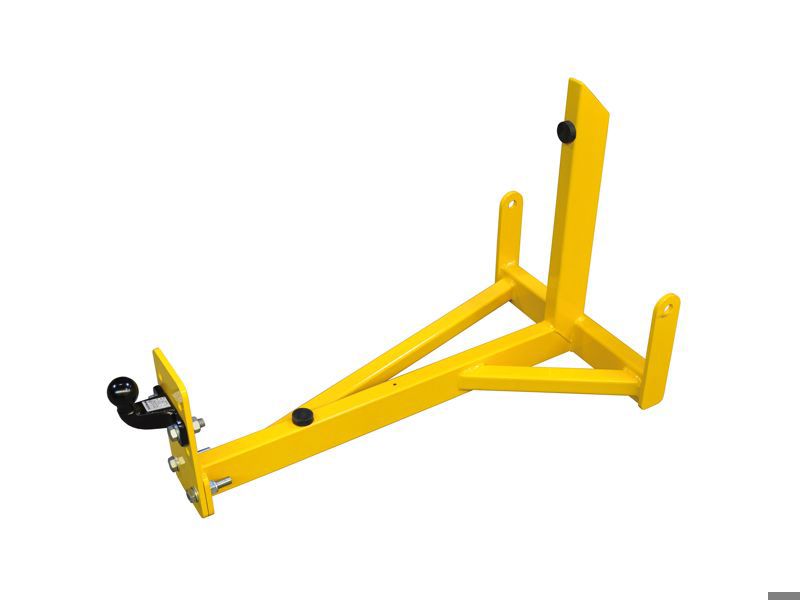

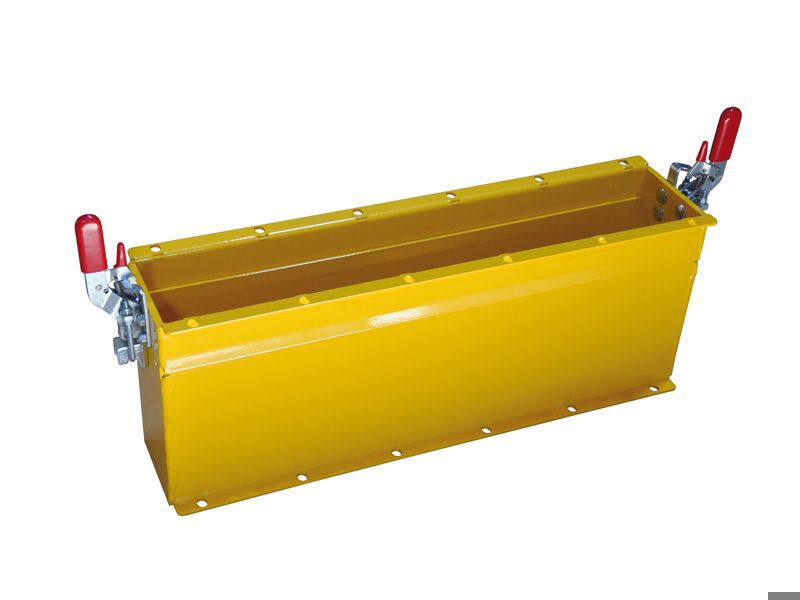

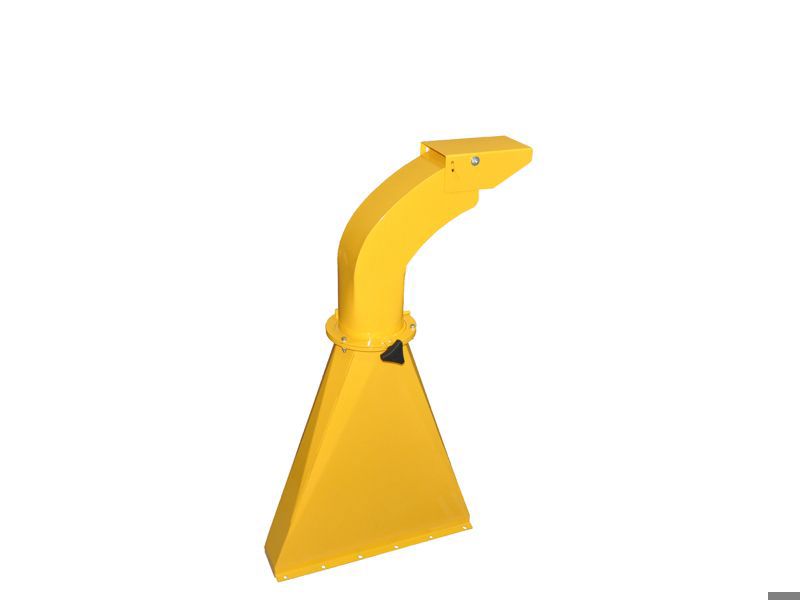

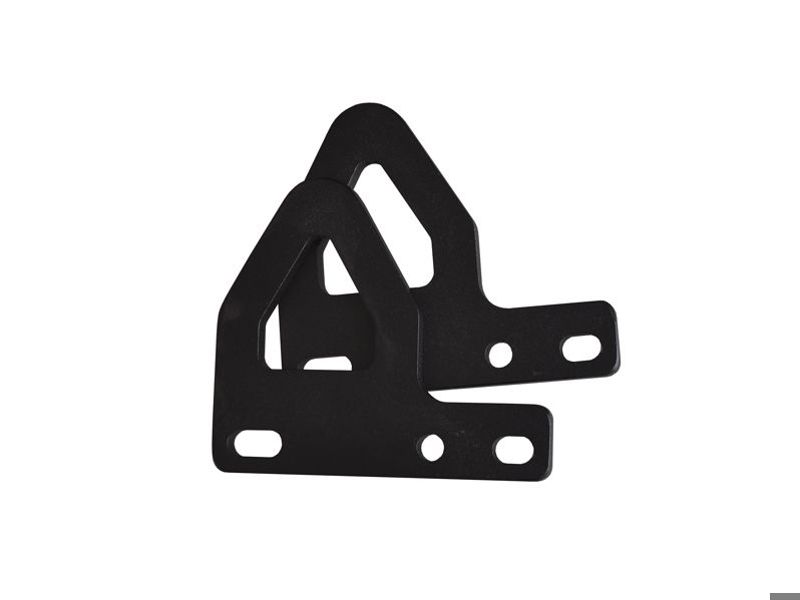

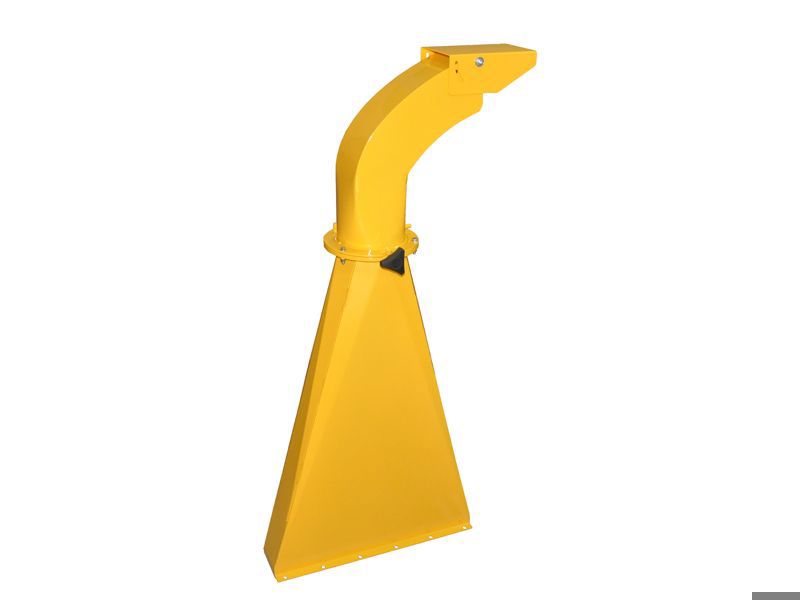

The different options such as detachable piece rotating pipe, high rotating discharge chute & lifting kit make the T500 still even better for farmers, gardeners and arborists. By means of the lifting kit the chipper can be lifted and coupled onto a trailer (that is to say: not onto the chipper construction).
If you want to couple the T500 to a tractor with more power, Jo Beau advises the use of a shaft with a torque limiter.

All Jo Beau machines are built according to the valid European guidelines and have a CE-certificate. All machines are supplied with manual and parts list.

Technical Specification

  • Max. recommended diameter : 140 mm (5.51 In)
  • Capacity chips (average) : 8,33 m³/h (294,17 ft³/h)
  • Processing speed (average) : 25 m/min (82 ft/min)

  • Power : Min. 30 Hp - max. 50 Hp
  • Drive : PTO shaft tractor
  • Noise level Lw (A)
  • RPM : 540 - 750

  • Dimensions (LxWxH) : 1300 x 890 x 1620 mm (51.18 x 35.04 x 63.78 In)
  • Feed height : 830 mm (32.67 In)
  • Feed intake opening (LxW) : 790 x 520 mm (31.10 x 20.47 In)
  • Weight : 240 kg (529.11 Lbs)
  • Chipper Technology : Jo Beau Drumtechnologie™
  • Chassis / Infeed hopper / Ejector chute : Powder-coated steel
  • Knives : 2 hardened, reversable blades
  • Counter blade : 1 (4x reversable)
  • Drum transmission : Double industrial v-belt
