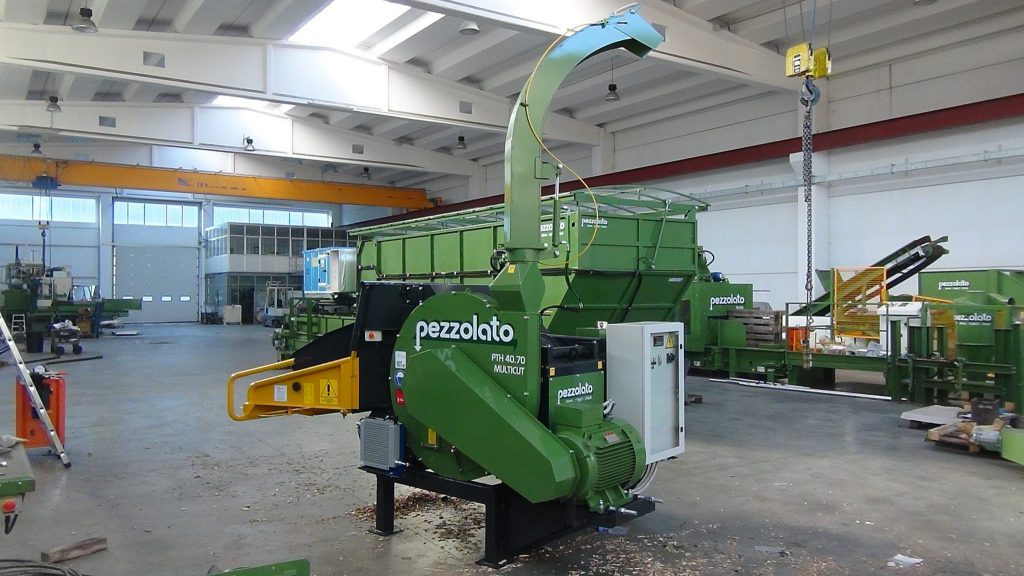

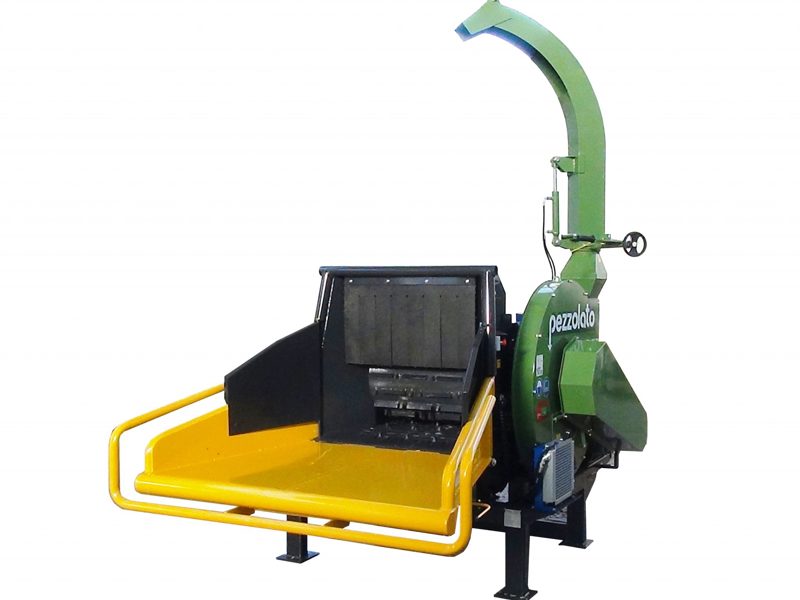

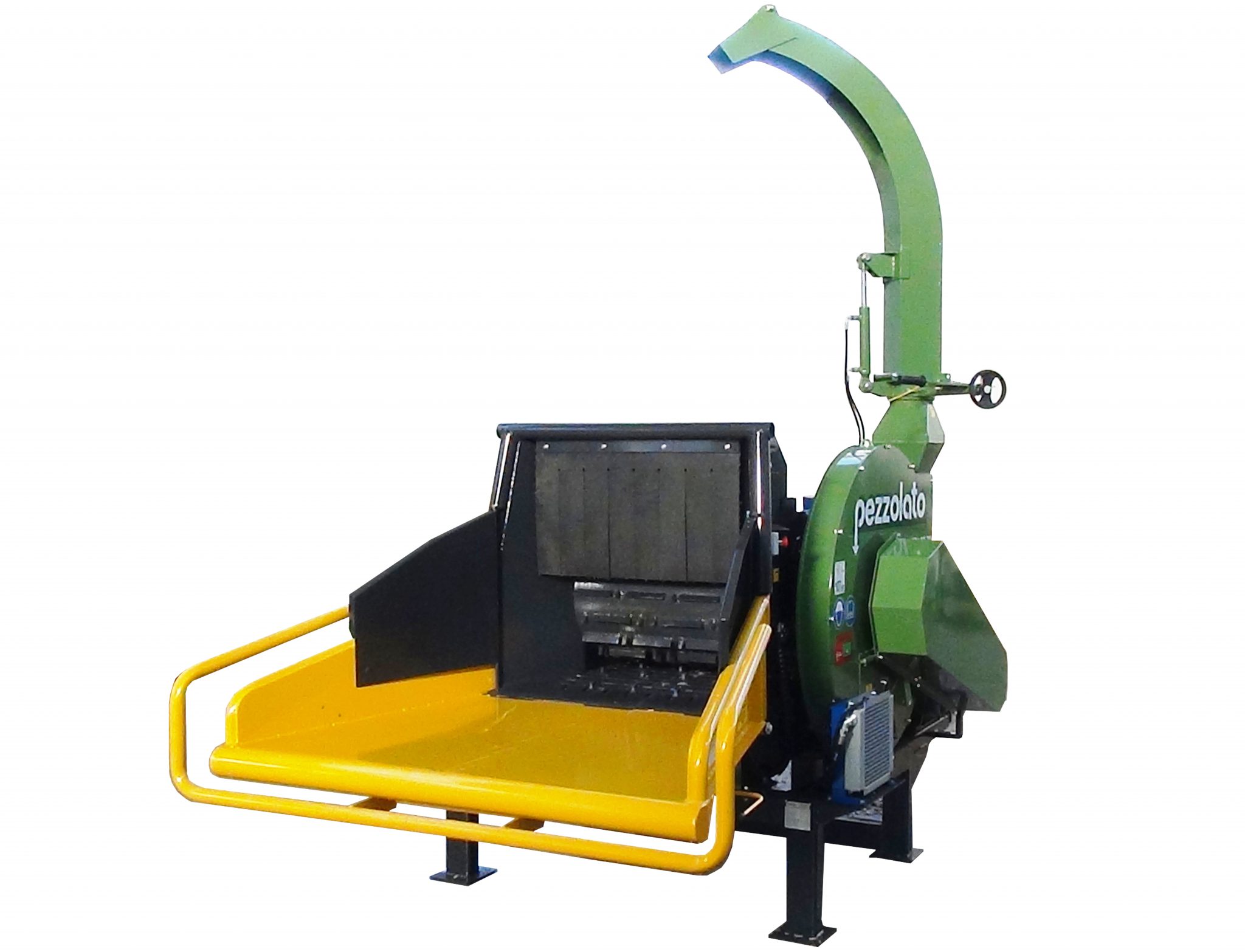

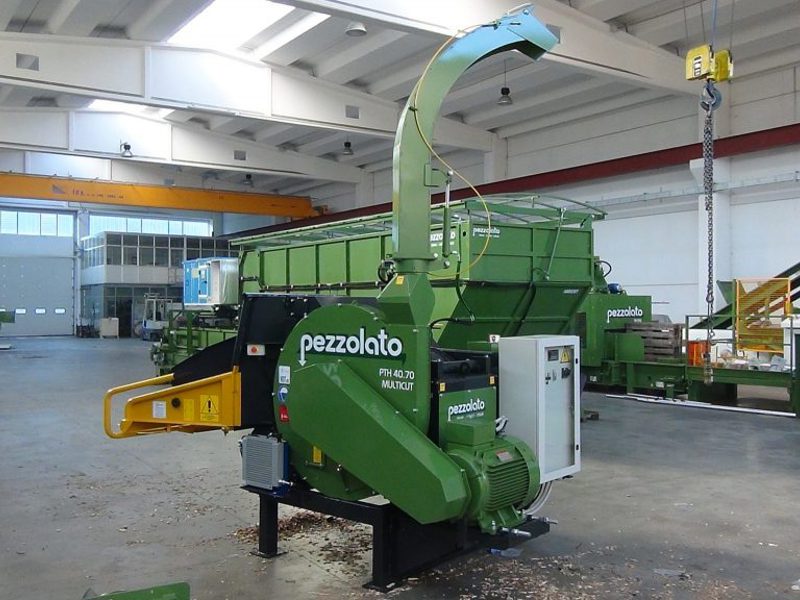

Pezzolato PTH 40.70E

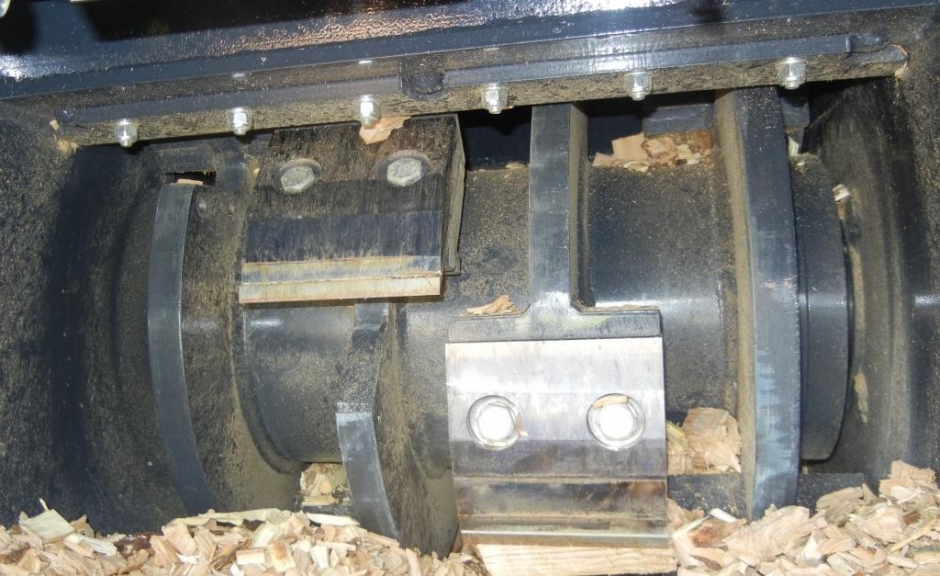

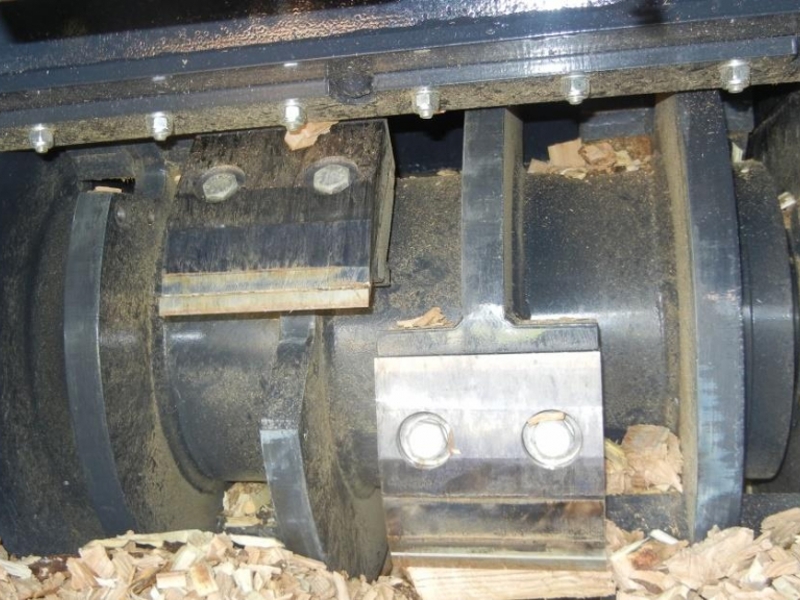

A chipper with an open or closed drum depending on the need.

The machine has the sturdy structure of Pezzolato chippers, guaranteeing reliability and excellent performance.

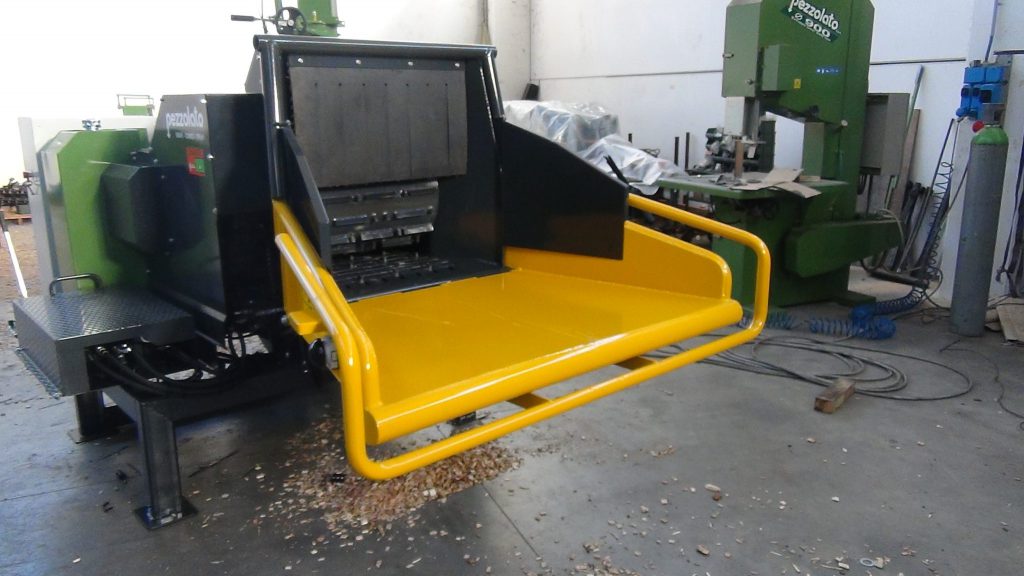

The width of the loading chute allows to easily feed large volumes of material, also when using mechanical means (the opening is 640 x 400mm). For manual feeding the chipper is equipped with a sturdy safety bar that keeps the operator safe during use.

A large horizontal roller with hooks, aided by a feed conveyor inside the hopper (on request a second feed conveyor can be supplied for the hopper tipper), allows material to be easily fed into the machine.

The interchangeable calibration grid allows to choose the dimensions of the chips and ensures that they are uniform and even.

The discharge fan, with interchangeable volutes, allows the wood chips to be expelled smoothly through the discharge pipe, which is equipped with an adjustable deflector at the end.

The main wearing parts are specially designed for easy replacement, as well as having a low cost.

Electric motor power



Maximum inlet passage

640 x 400 mm / 25.20 x 15.75''




Hourly throughput

20 ÷ 25


Drum diameter

520 mm / 20.47''


Drum width

640 mm / 25.20''


Hooked steel feeding conveyor width

650 mm / 25.59''


Hooked steel feeding conveyor length

500 mm / 19.69''


Cutting depth adjustment
