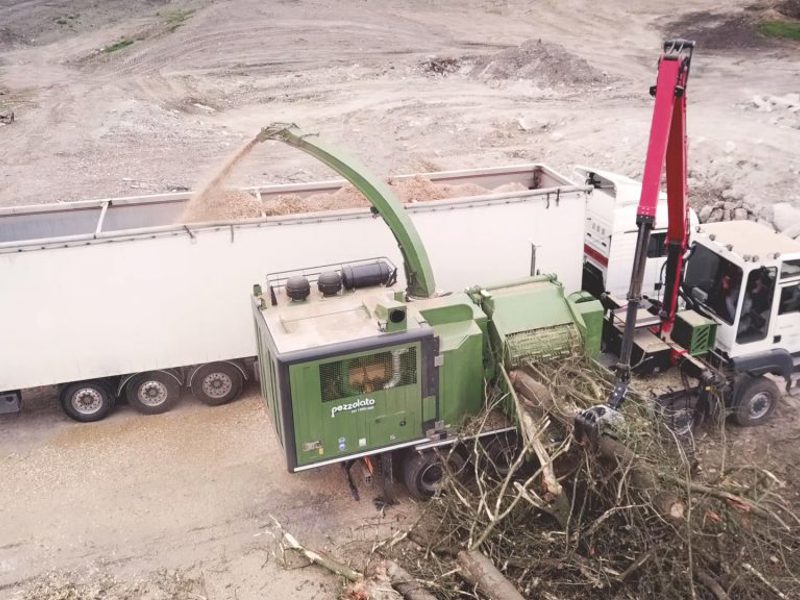

Pezzolato PTH 1400/1000

PTH 1400/1000 is one of the heavy duty machines to chip big diameter logs within Pezzolato drum chippers, whose drum diameter measures 1000 mm (3′ 3.37”).

Its feeding mouth is 1400 mm (3′ 11.24”) wide.

Able to produce over 300 m³ chips per hour, it guarantees high throughput.

The Pezzolato solid drum, well-known for reliability, wear-resistance and no maintenance, has been designed to guarantee the best quality wood chips, either small or big dimensions. It is staggered section type in order to distribute the machine’s effort equally, reducing vibrations, noise and consumption.

The sharp cut through the blades and the large drum’s inertia reduce the machine’s efforts and stress, thus confirming the well-known solidity of Pezzolato drum chippers.

The wear spare parts of all machines are cost effective and simple to replace in short maintenance times and cheap.

The integrated computer suggests any ordinary and extraordinary maintenance operations to be performed according to the manufacturer’s maintenance plan.

Diesel engine power

VOLVO 585KW-796


Diesel engine power

CAT C18 563KW-755HP / C27 1050HP-783KW-1050


Max chipping diameter soft wood

800 mm / 31.50''


Max chipping diameter hard wood

550 mm / 21.65''


Maximum inlet passage

1400 x 1100 mm / 4' 7.12'' x 3' 7.31''




Hourly throughput

over 300


Drum diameter

1000 mm / 3' 3.37''


Drum width

1400 mm / 4' 7.12''


Hooked steel feeding conveyor width

1400 mm / 4' 7.12''


Hooked steel feeding conveyor length

2200 mm / 7' 2.61''



25000 kg / 55116 lbs
