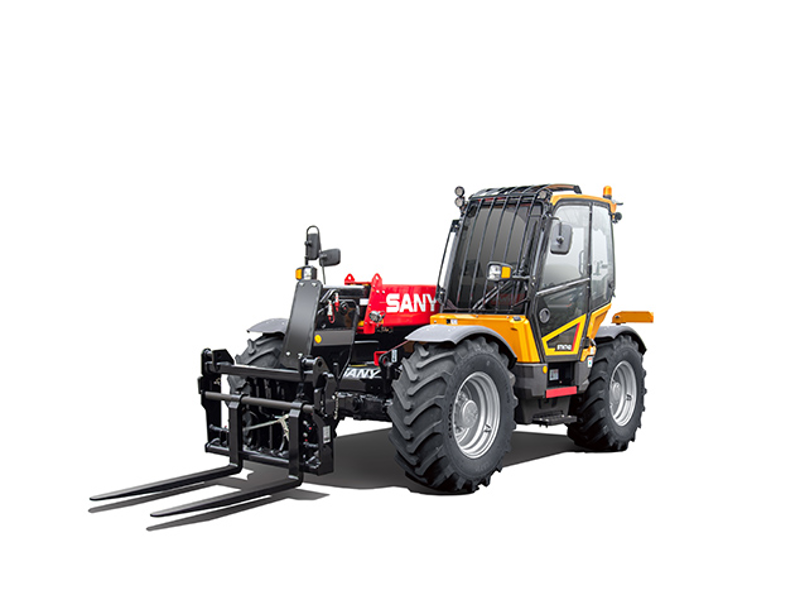

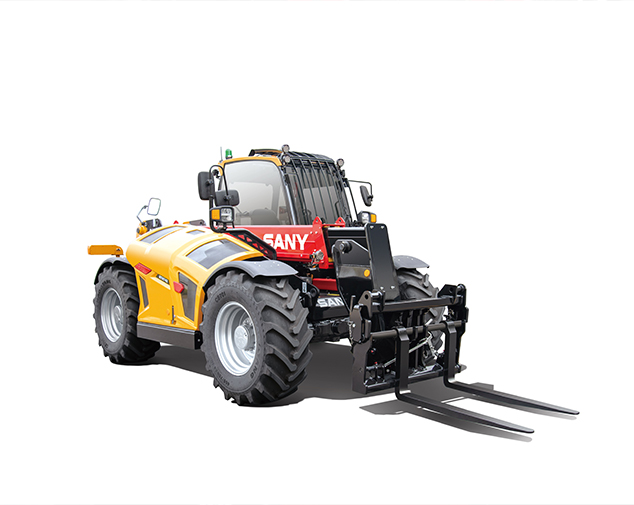

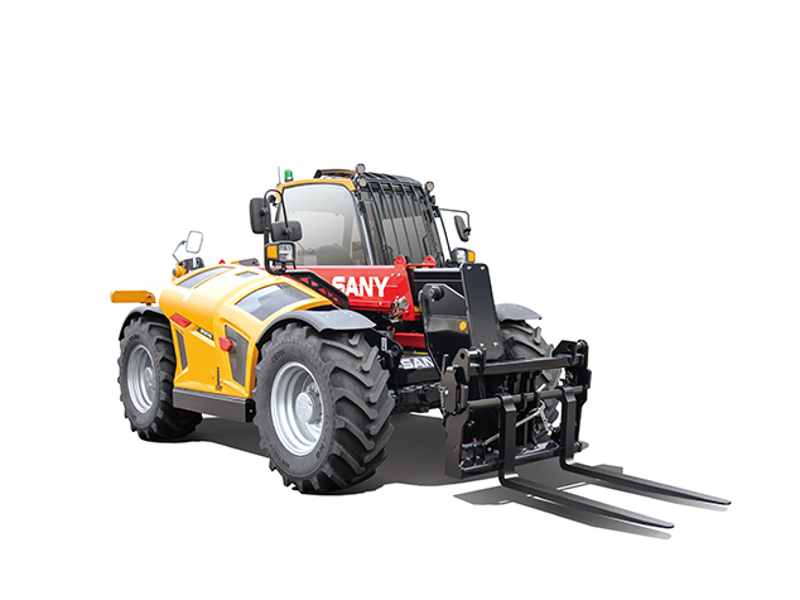

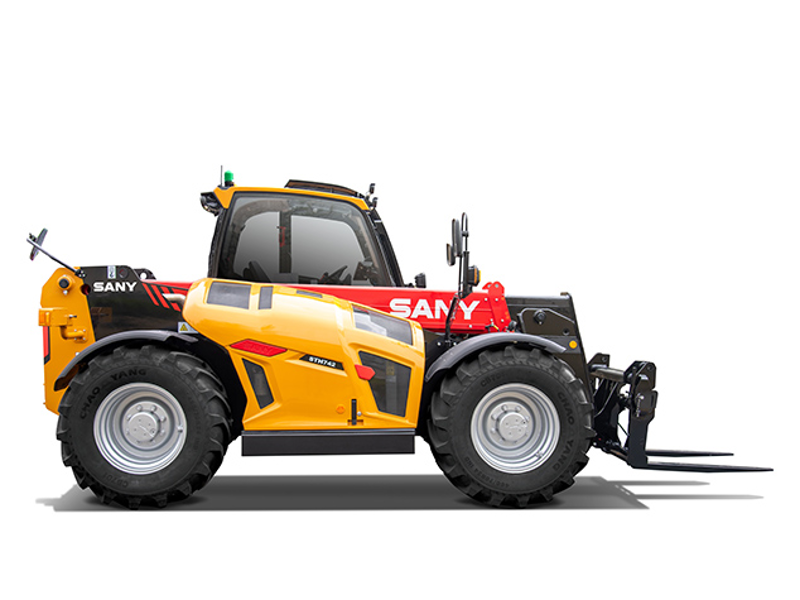

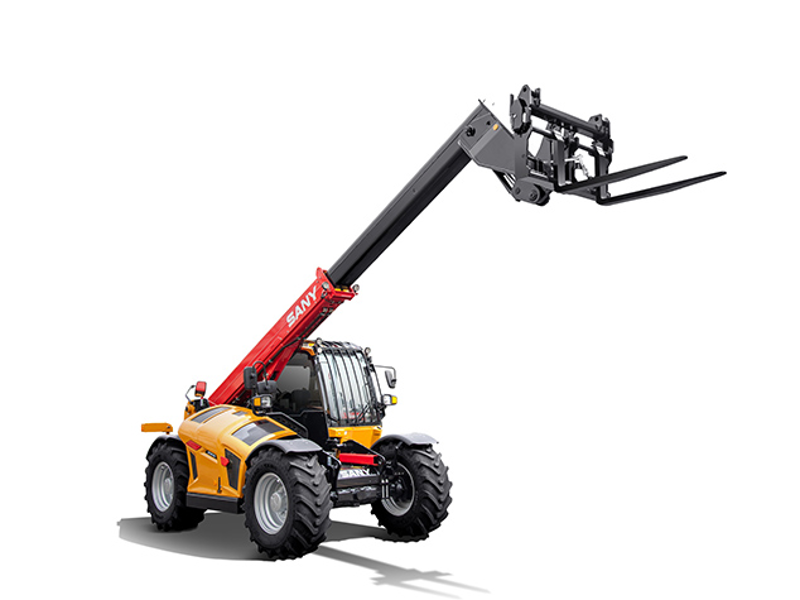

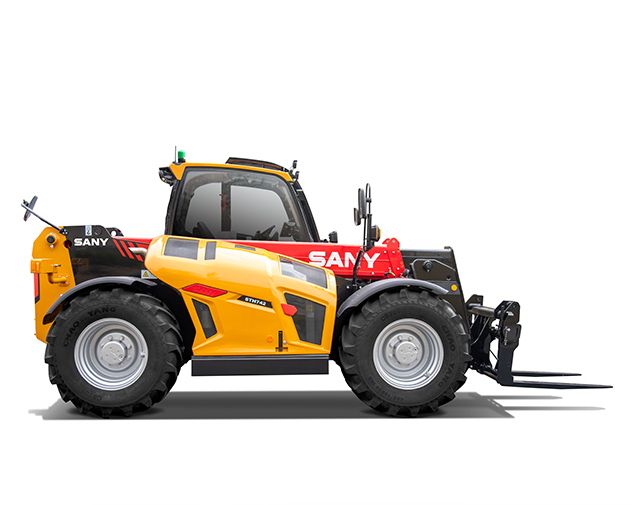

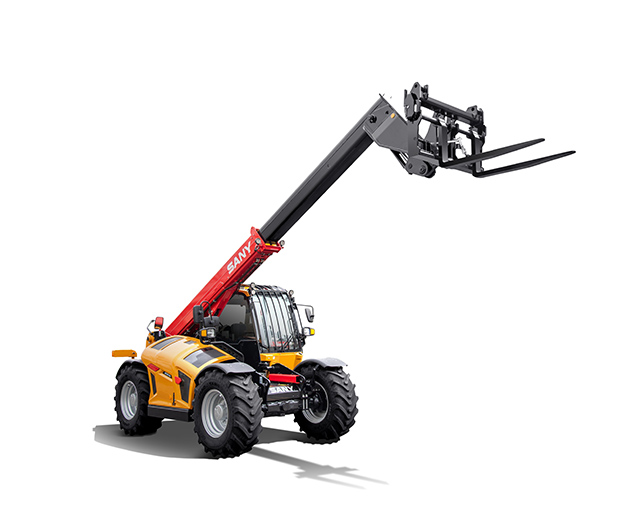

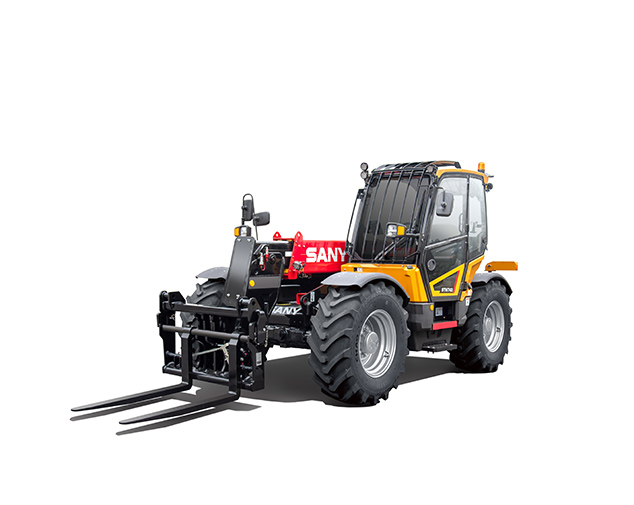

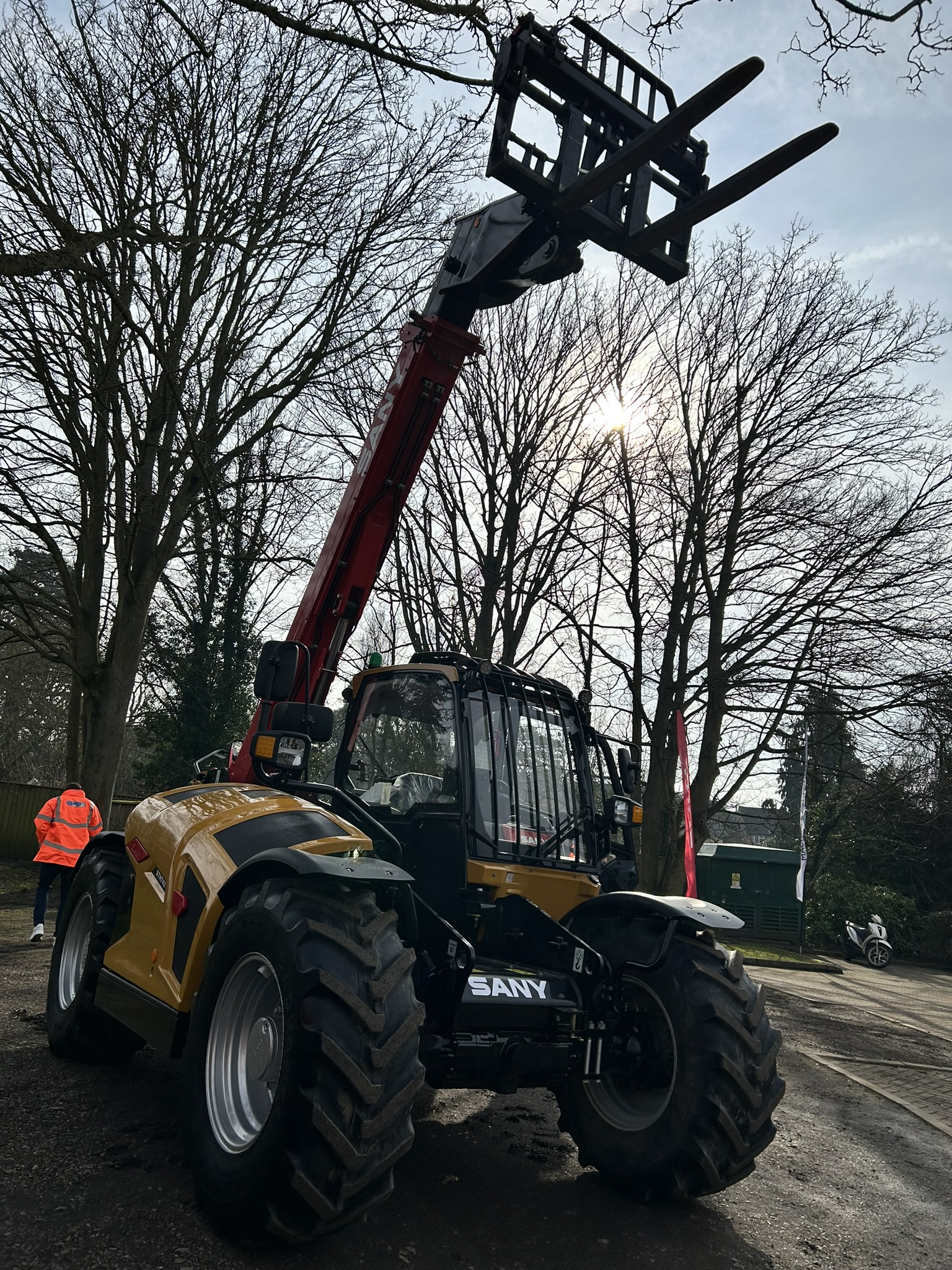

SANY STH742

INDUSTRY LEADING 5-YEAR WARRANTY

The STH742 is the latest machine in the SANY telehandler series, designed to offer the ultimate in safety, comfort and performance. Thanks to their compact and innovative design, SANY telehandlers are the ideal solution for demanding jobs and precision work, whether that’s easy loading, moving or stacking and their versatility is increased further due to their ability to use a wide variety of attachments.

  •  Stage V Deutz engine for superb performance and greater fuel efficiency
  •  Ergonomic operators space offering a wealth of features as standard, boosting safe operation
  •  3 year warranty for complete peace of mind

Benefits & Features

SANY telehandlers are designed and tested to ensure they provide the maximum in terms of reliability and operating hours.

  • Powerful 55 kW Deutz engine (without exhaust treatment) ensures optimum engine performance and low fuel consumption
  • Dana hydrostatic transmission for best application efficiency
  • Auxiliary venting for fast attachment changing
  • Three selectable steering modes (4WS, 2WS and Crab) for excellent manoeuvrability on site and faster travel speeds
  • Smooth, fast multi-functioning boom control with auto rpm

A comprehensive safety package is included as standard on all SANY telehandlers.

  • ROPS/FOPS fully certified cab for safe operation
  • Precise weight management system
  • Chassis levelling for safer lifting
  • Low boom profile for maximum visibility
  • Operator present seat switch and high-viz seatbelt
  • Integrated reversing camera, coupled with distance sensor
  • Reversing alarm and side and rear mirrors
  • LED work lights positioned on the cab and boom for low light working conditions

The operators cab of the telehandler series has been designed in Germany and is a highlight for any operator. It provides maximum comfort and pleasant working conditions due to numerous standard features.

  • Adjustable air-suspension seat
  • Inclinable and telescopic steering column for the perfect operating position
  • 10-inch touchscreen colour display with encoder control and intuitive user navigation
  • Quiet, low vibration engine (75 dB) so noise levels are kept to a minimum
  • Air-conditioning
  • Radio with Bluetooth and USB connector
  • Storage within the arm rest and cup and bottle holders
  • All maintenance and daily checks can be performed from ground level
  • Filters are centrally located for quick and easy access
  • Engine access is possible from three sides and the battery can be easily reached via an upwards-folding step under the cab
  • 500 hrs service intervals
  • Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
  • 3-year/3000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Technical Specification

  • Model = Deutz TD 3.6L
  • Rated Power = 55kW/2600 rpm
  • Max torque = 340 Nm/1600 rpm
  • Battery = 12 V

  • Hydraulic pump type = Gear with priority valve
  • System pressure = 300 bar
  • Hydraulic flow = 95 l/min

  • Maximum lift capacity = 4,200 kg
  • Lift capacity at maximum height = 2,500 kg
  • Lift capacity at maximum reach = 1,300 kg
  • Lift height = 7,070 mm
  • Carriage crowd angle = 45°
  • Carriage dump angle = 21°
  • Outside turning radius (4WS) = 3,850 mm
  • Auxiliary hydraulic flow = 60 l/min
  • Auxiliary hydraulic pressure = 30 MPa
  • Noise at driving position (55 kW) = 75 Lpa
  • Noise to environment (55 kW) = 83 Lwa

  • Length to front of carriage = 4,990 mm
  • Overall width = 2,350 mm
  • Height over cab without beacon = 2,540 mm
  • Height over cab with beacon = 2,665 mm
  • Wheelbase = 2,750 mm
  • Overall cabin width = 950 mm
  • Ground clearance = 400 mm
  • Turning radius over tyres = 3,850 mm
  • Operating weight (with Forks) = 8,325 kg
