Pezzolato PTH 1000/1000E

PTH 1000/1000 E is one of the medium power machines within Pezzolato drum chippers, whose drum diameter measures 1000 mm (3′ 3.37”).

Its feeding mouth is 1000 mm (3′ 3.37”) wide.

Able to produce up to 200 m3 chips per hour, it guarantees high throughput.

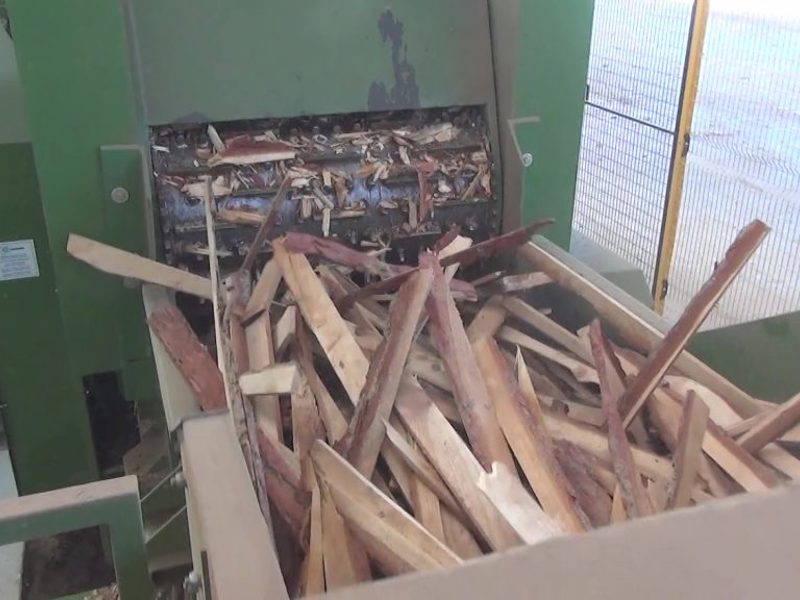

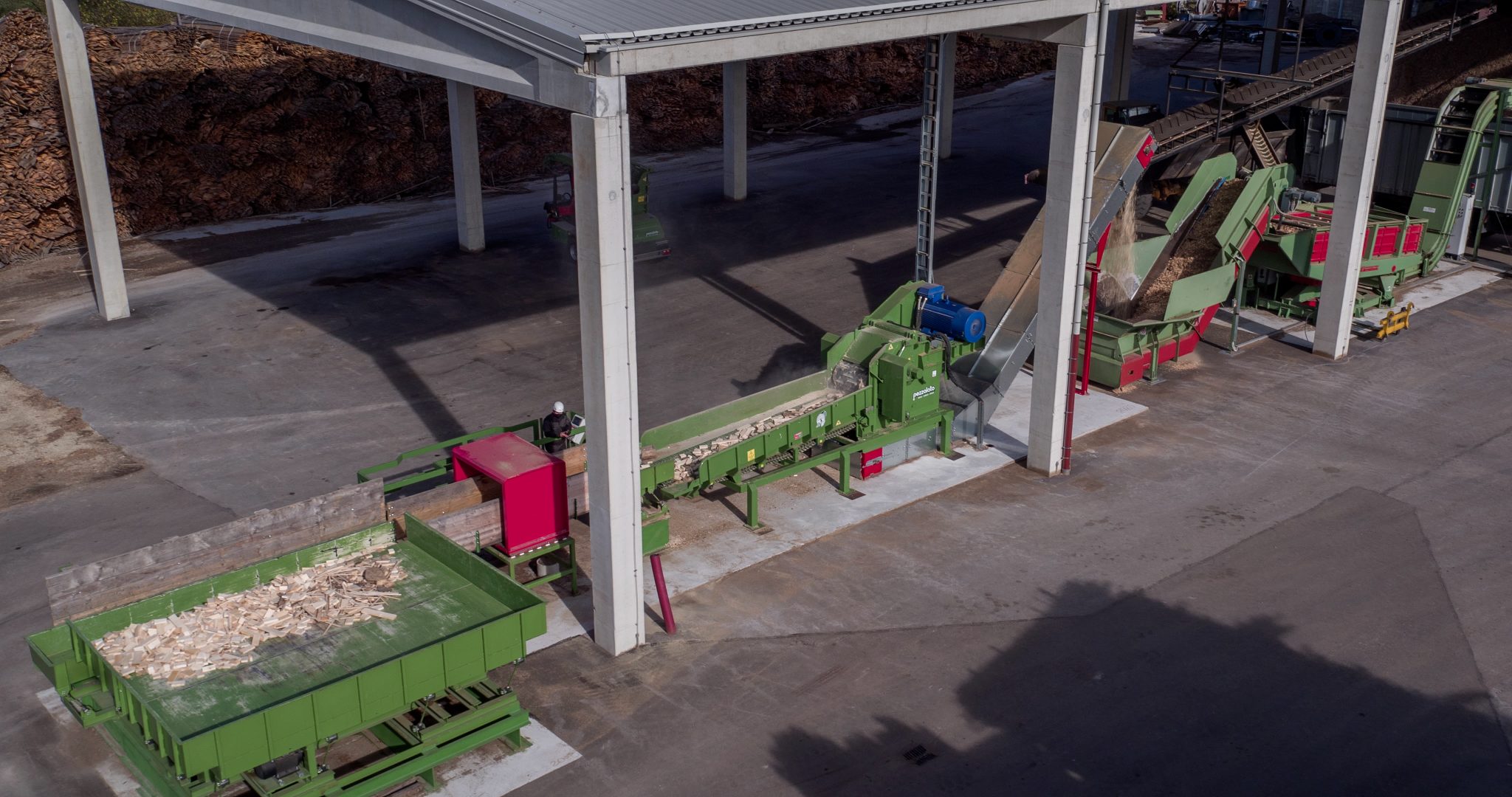

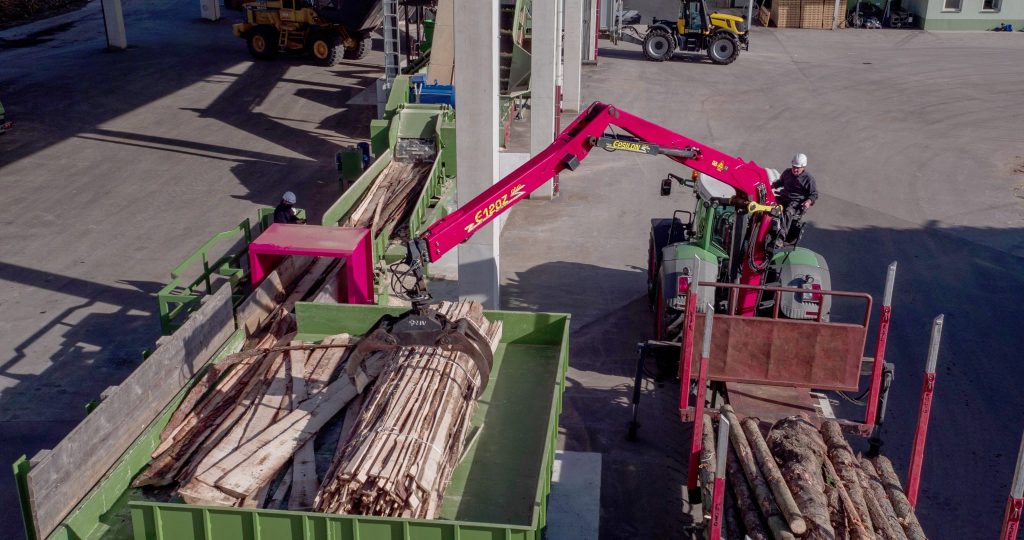

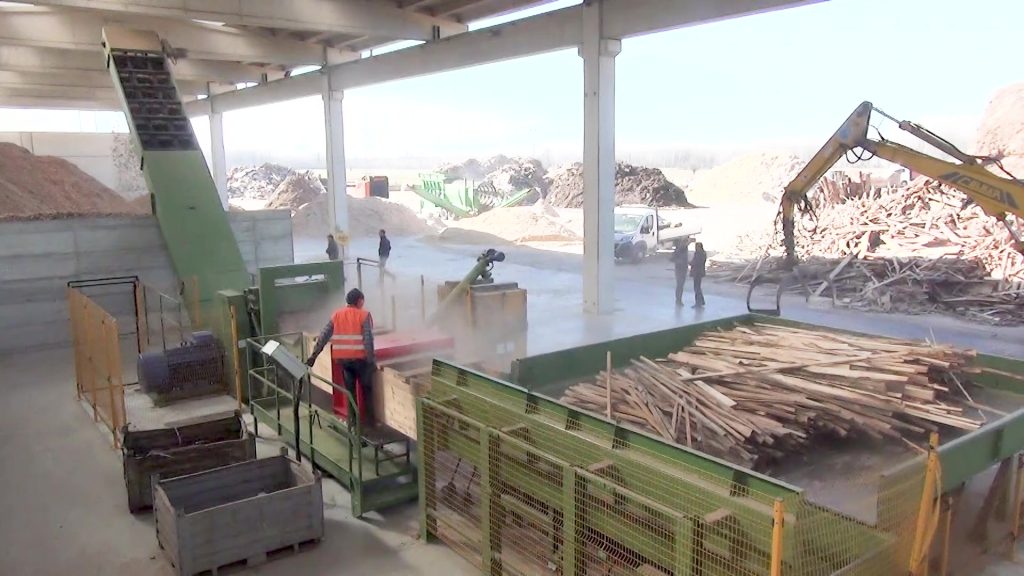

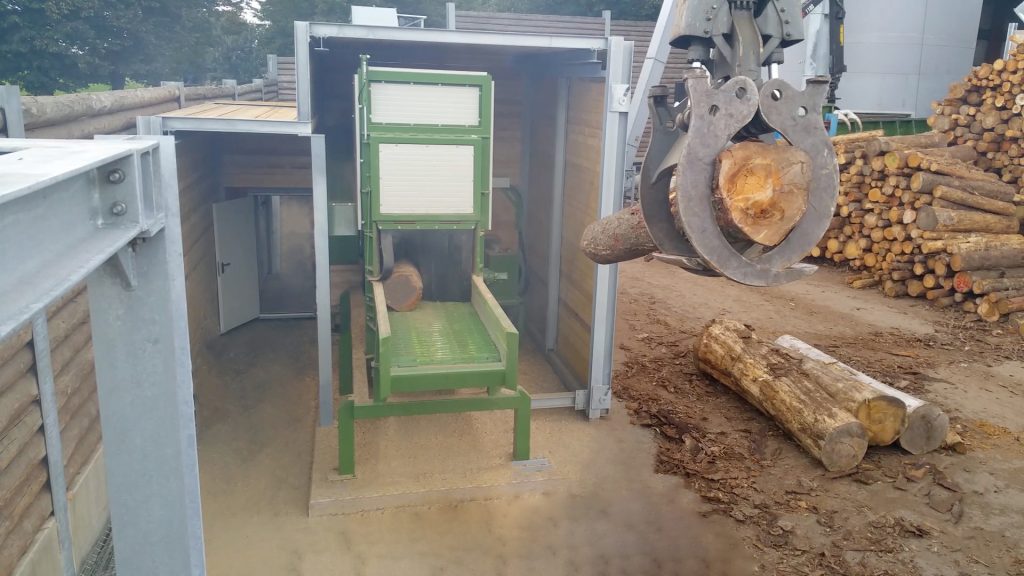

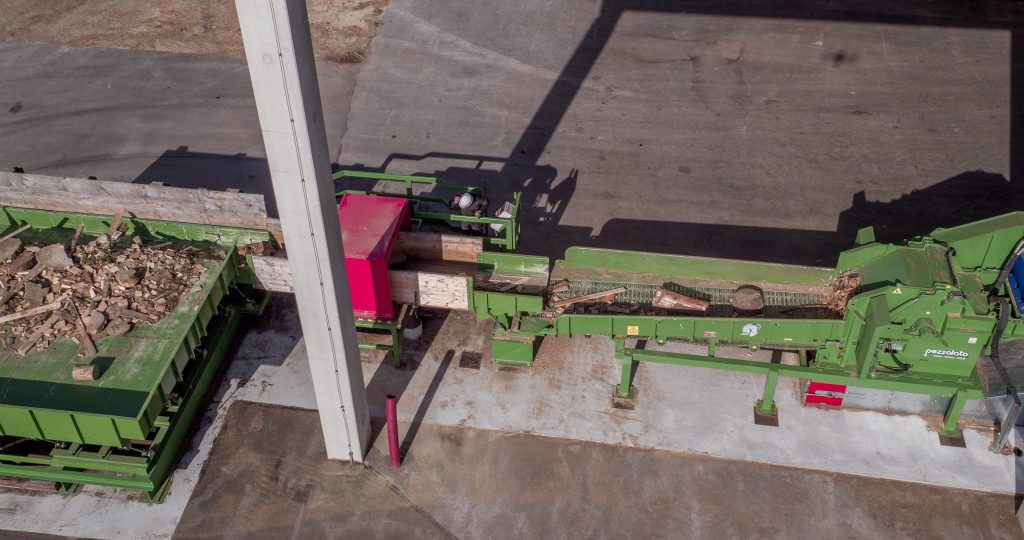

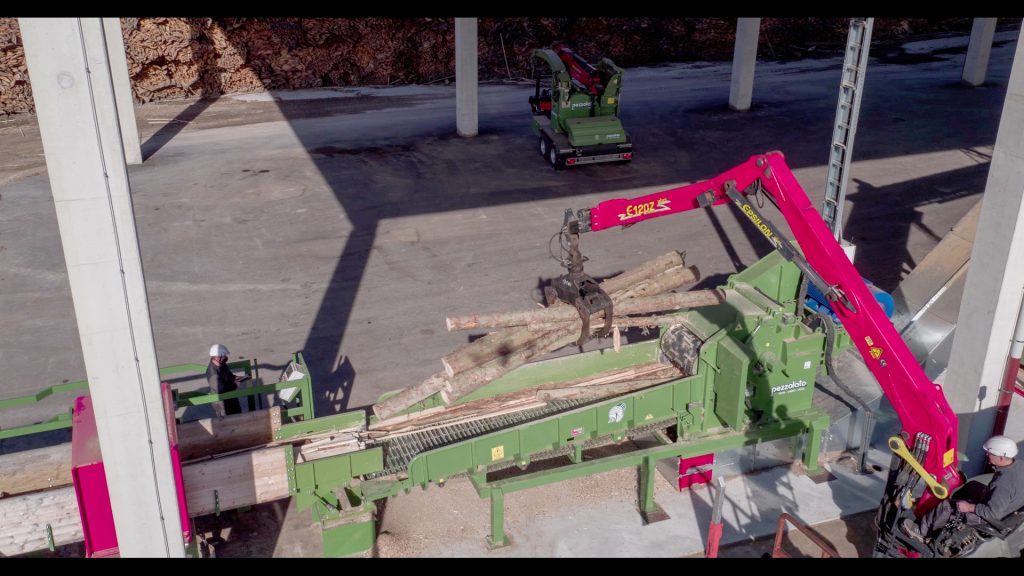

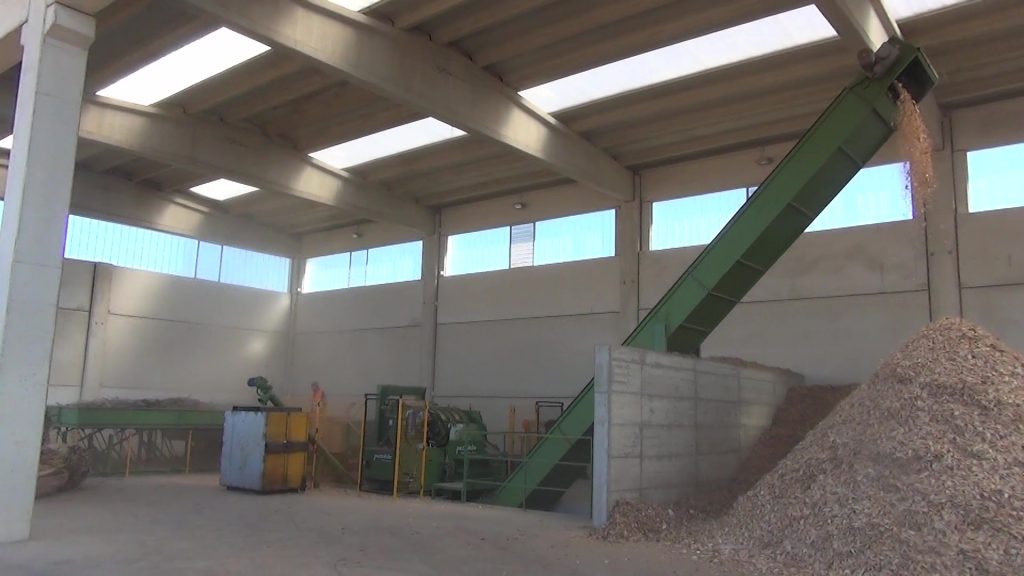

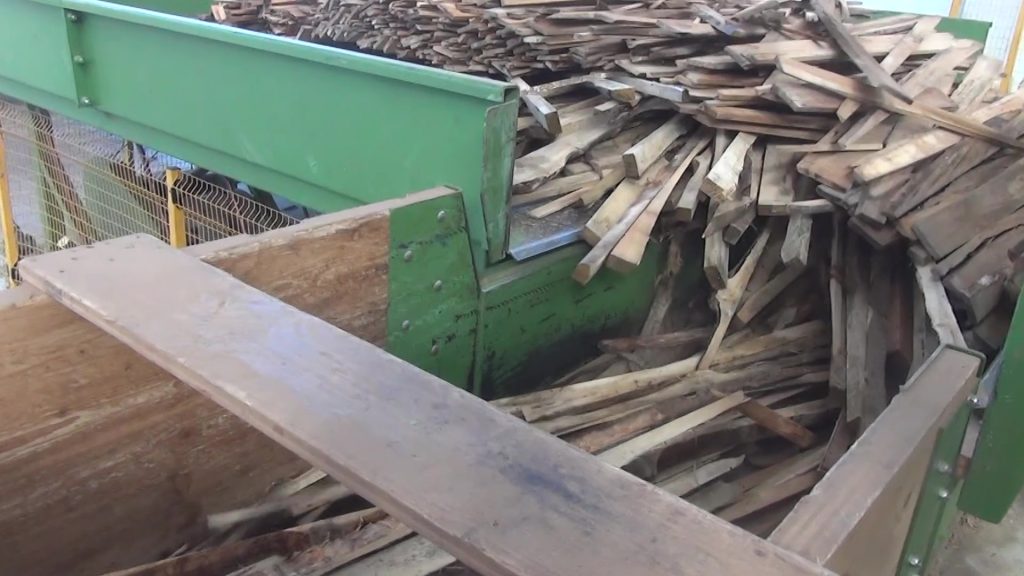

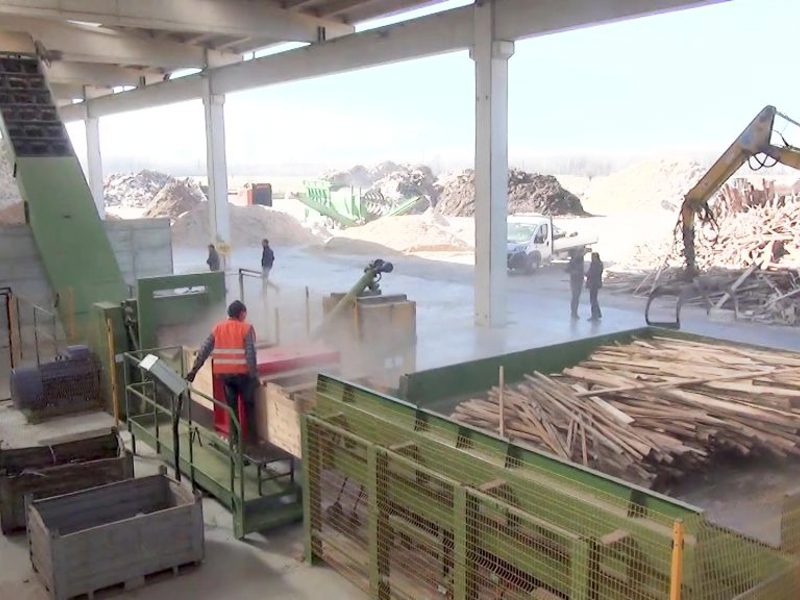

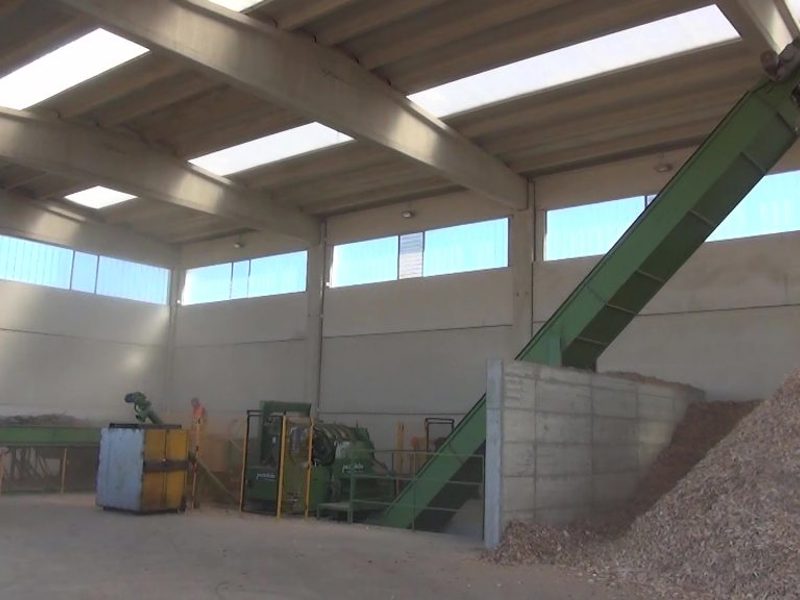

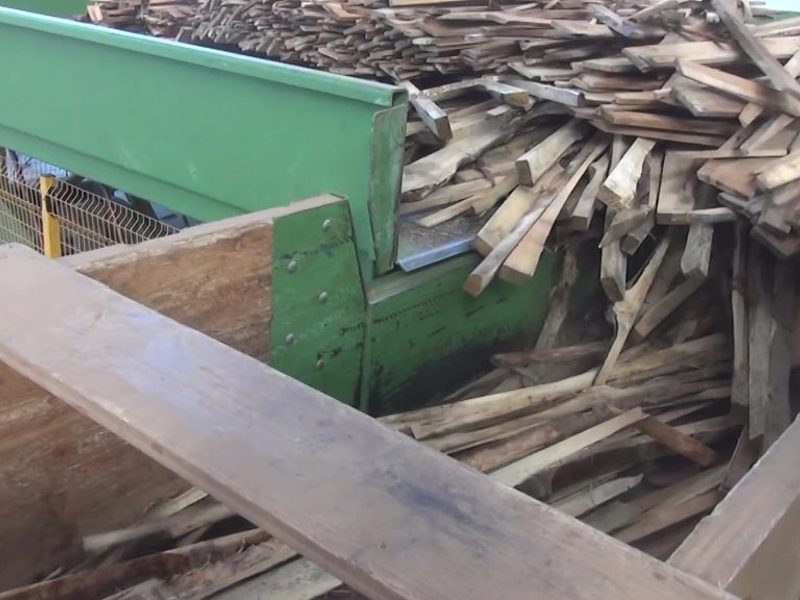

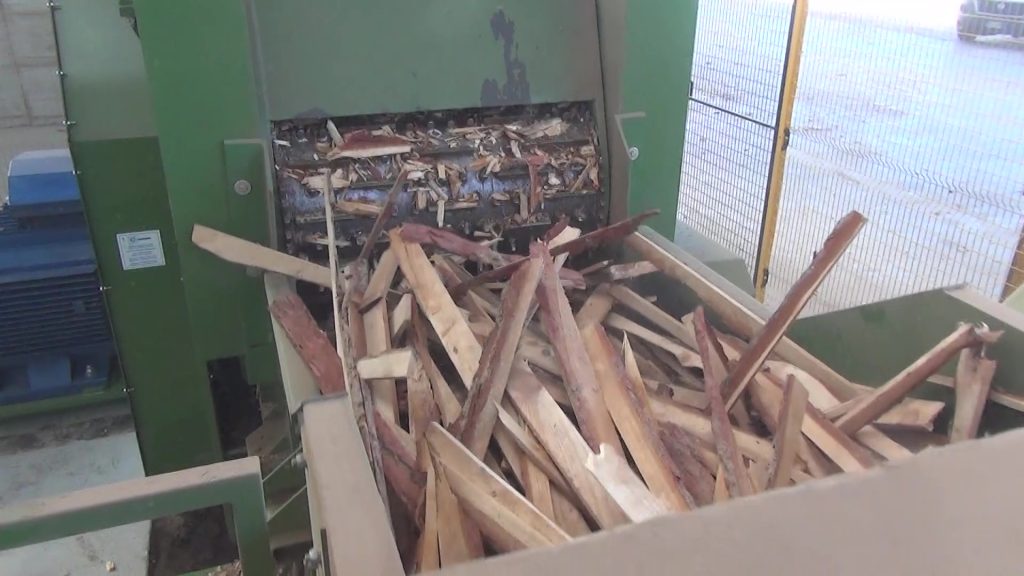

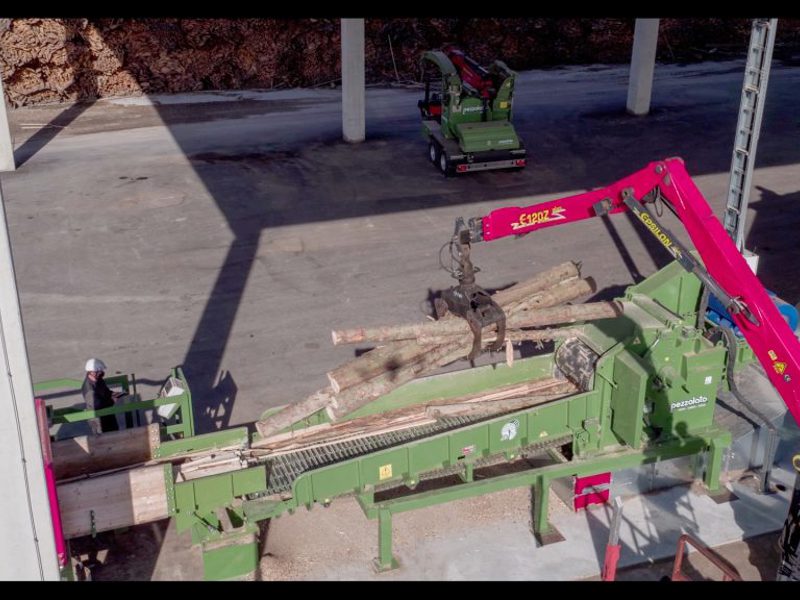

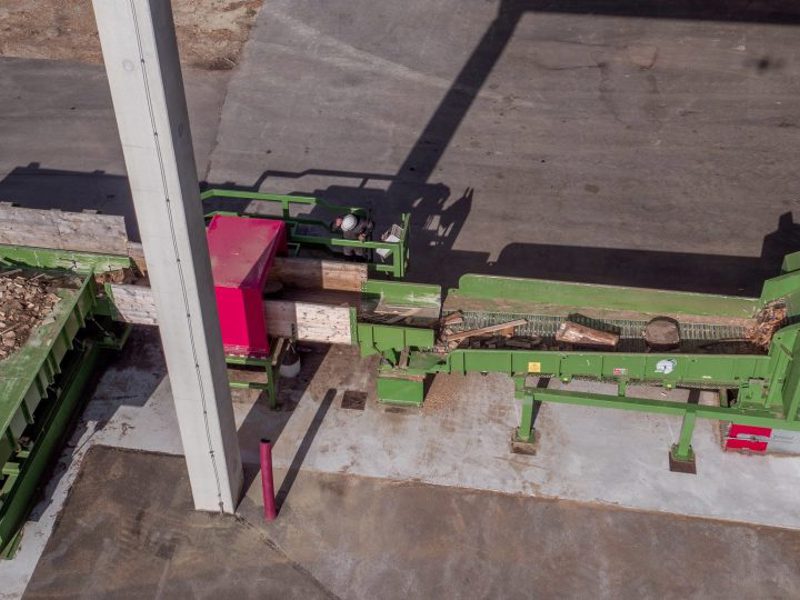

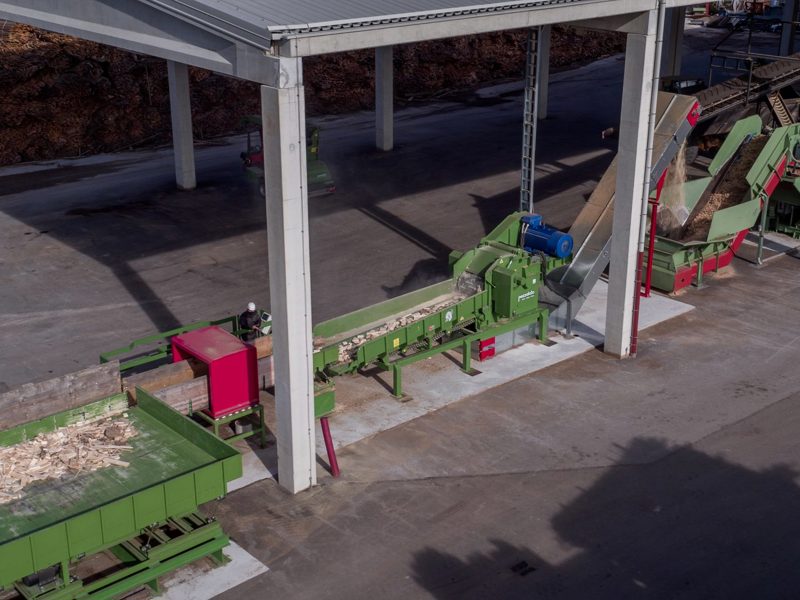

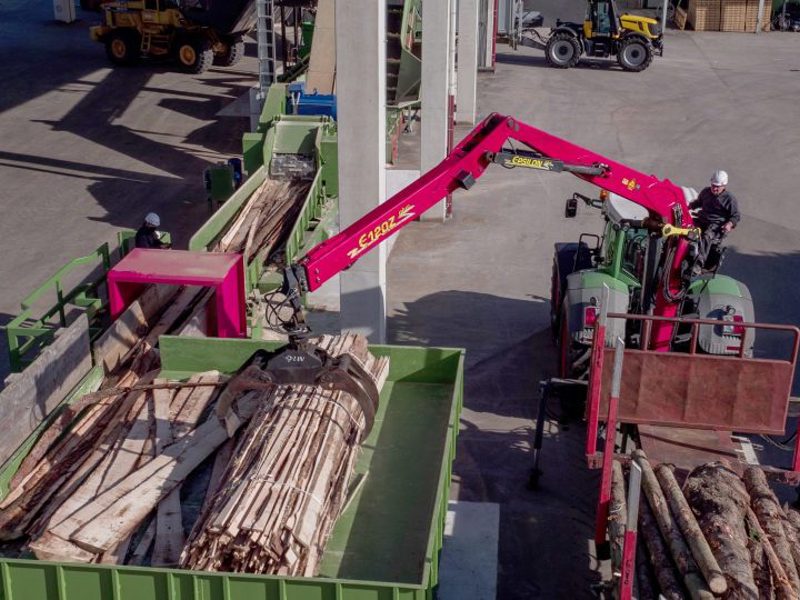

Mainly used in: biomass power plants, pellet-briquettes plants, saw mills and yards for chipping. It is ideal to chip saw mills waste and small diameter logs. The feeding is given by the use of rubber bands, vibrating channels and tables, chain conveyors.

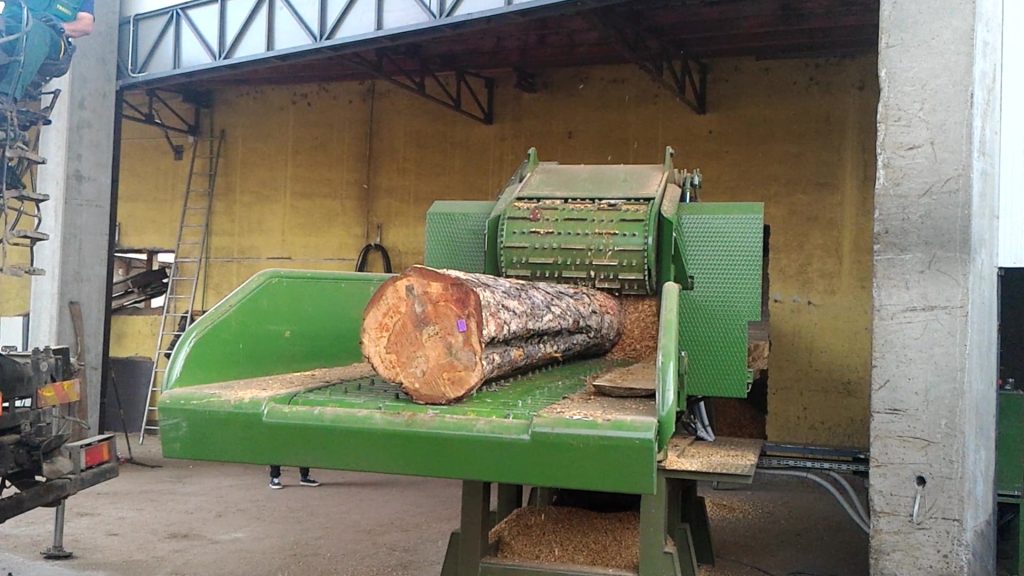

The maximum chipping diameter logs is 600 mm (23.62”),  for feeding without operator, maximum diameter logs: 450 mm (17.72”).

Powered by electric motor of 200 kW.

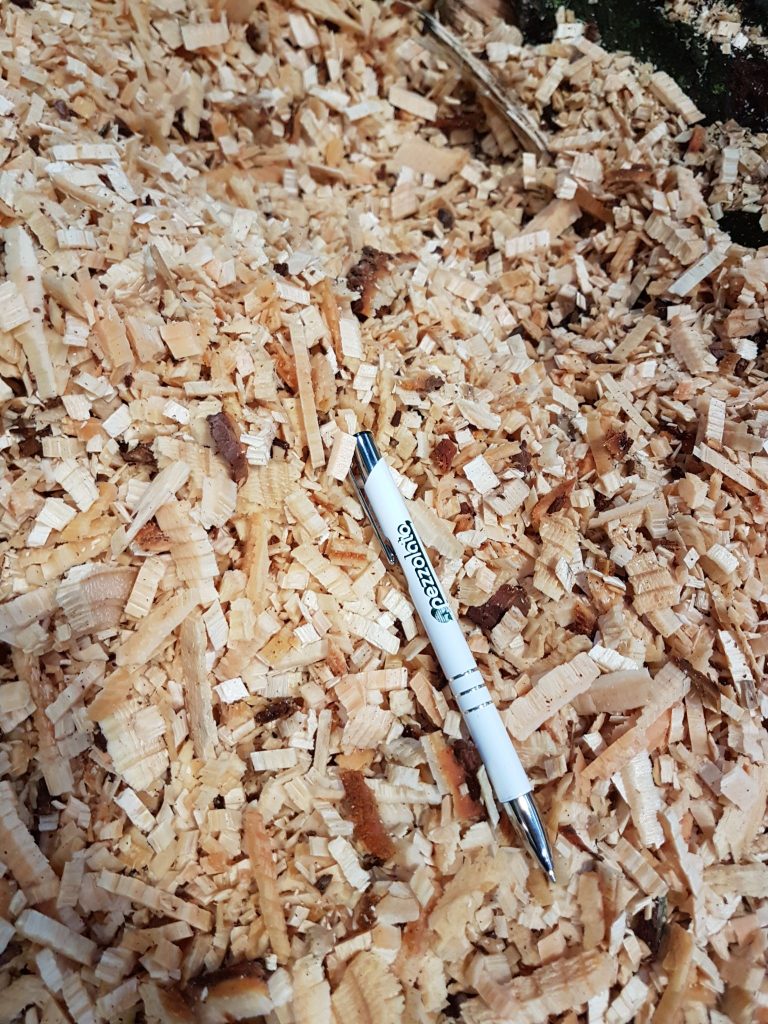

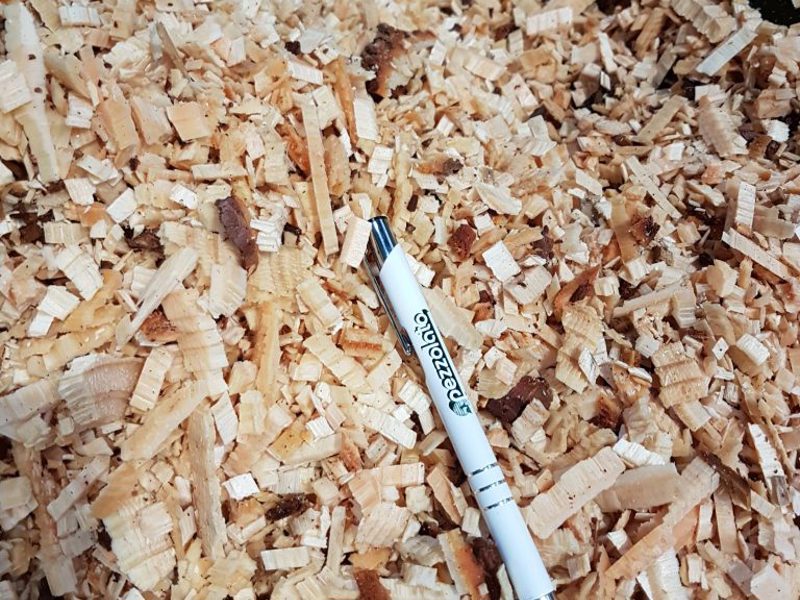

Thanks to the closed drum and the three blades, in standard configuration, they produce high quality chips, whatever wood is cut, considerably reducing fuel consumption.

The sharp cut through the blades and the drum’s inertia reduce the machine’s efforts and stress, thus confirming the well-known solidity of Pezzolato wood chippers.

The wear parts of all machines are simple to replace in short maintenance times and cheap.

The electronic controller suggests any ordinary and extraordinary maintenance operations to be performed according to the manufacturer’s maintenance plan.

Chipping dimeter and declared production are variable according to the available power, wood type and chips size.

Electric motor power



Maximum inlet passage

1000 x 600 mm / 3' 3.37'' x 23.62''




Hourly throughput

180 ÷ 200


Drum diameter

1000 mm / 3' 3.37''


Drum width

1000 mm / 3' 3.37''


Upper rollers


Lower roller
