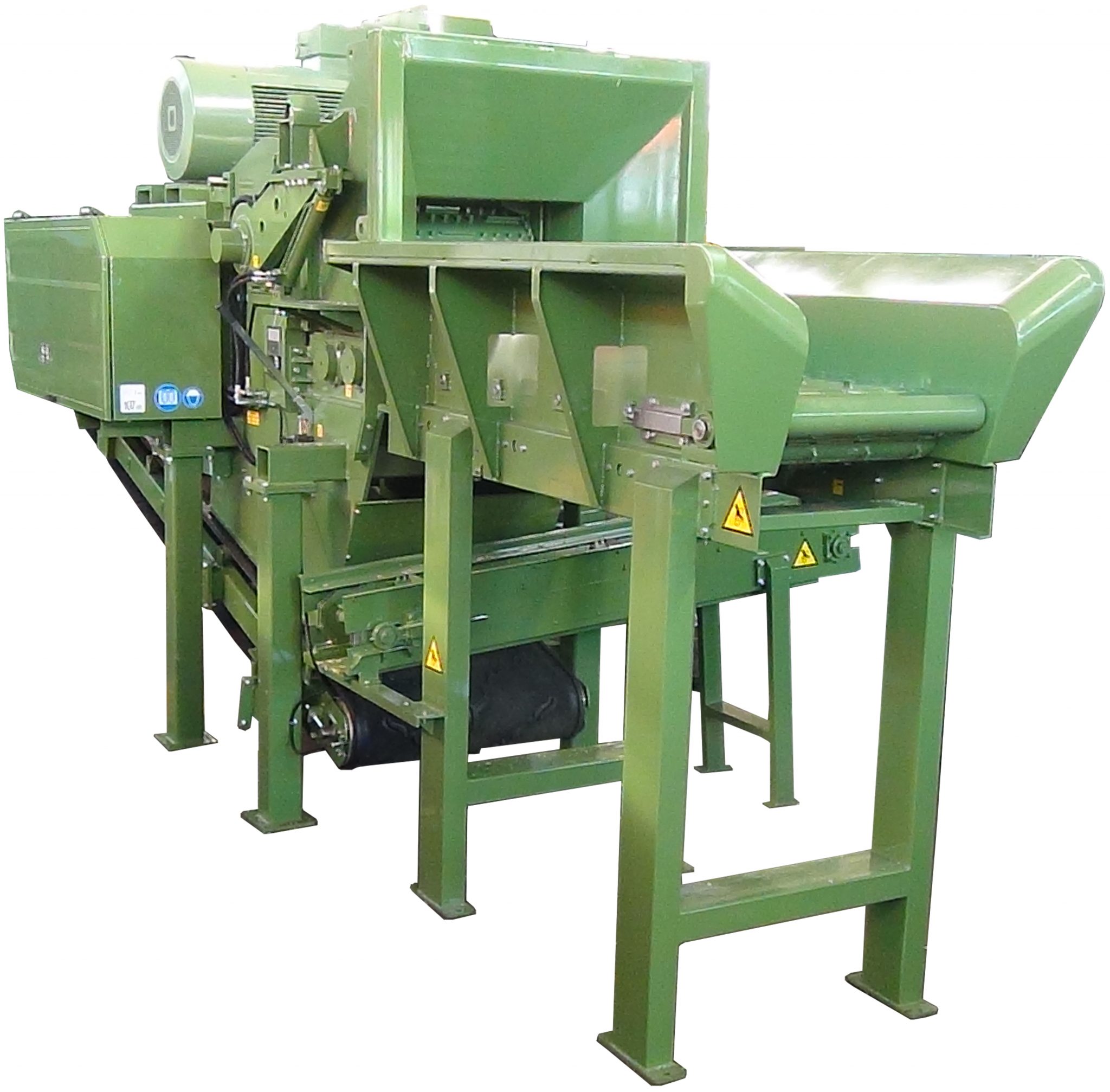

Pezzolato PTH 800/820E

PTH 800/820 E is one of the medium power machines within Pezzolato drum chippers, whose drum diameter measures 820 mm (32.28”). Its feeding mouth is 750 mm (29.53”) wide.

Able to produce up to 100 m³ chips per hour, it guarantees high throughput.

Mainly used in: biomass power plants, pellet-briquettes plants, saw mills and yards for chipping. It is ideal to chip saw mills waste and small diameter logs. The feeding is given by the use of rubber bands, vibrating channels and tables, chain conveyors. Powered by electric motor of 160 kW (215 hp).

Maximum chipping diameter logs is 500 mm (19.69”), for feeding without operator, maximum diameter logs is 350 mm (13.78”).

Thanks to the closed drum, it produces high quality chips, whatever wood is cut, considerably reducing fuel consumption.

The sharp cut through the blades and the drum’s inertia reduce the machine’s efforts and stress, thus confirming the well-known solidity of Pezzolato wood chippers.

The wear parts of all machines are simple to replace in short maintenance times and cheap.

The electronic controller suggests any ordinary and extraordinary maintenance operations to be performed according to the manufacturer’s maintenance plan.

Chipping dimeter and declared production are variable according to the available power, wood type and chips size.

Electric motor power



Maximum inlet passage

750 x 500 mm / 29.53'' x 19.69''




Hourly throughput

80 ÷ 100


Drum diameter

820 mm / 32.28''


Drum width

750 mm / 29.53''


Upper rollers


Lower roller
