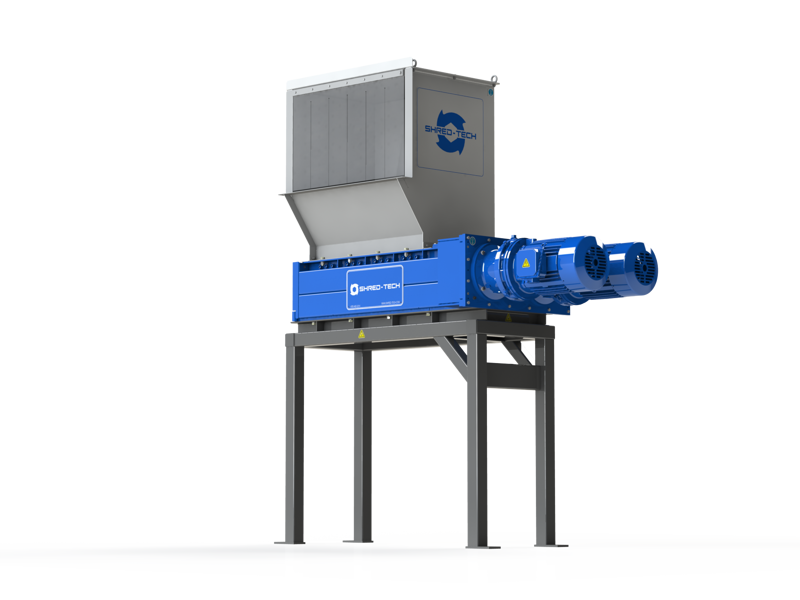

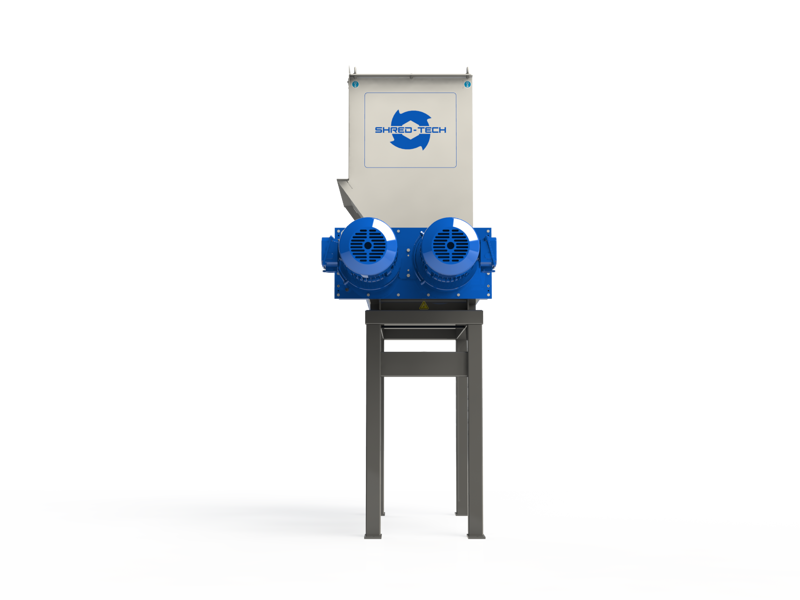

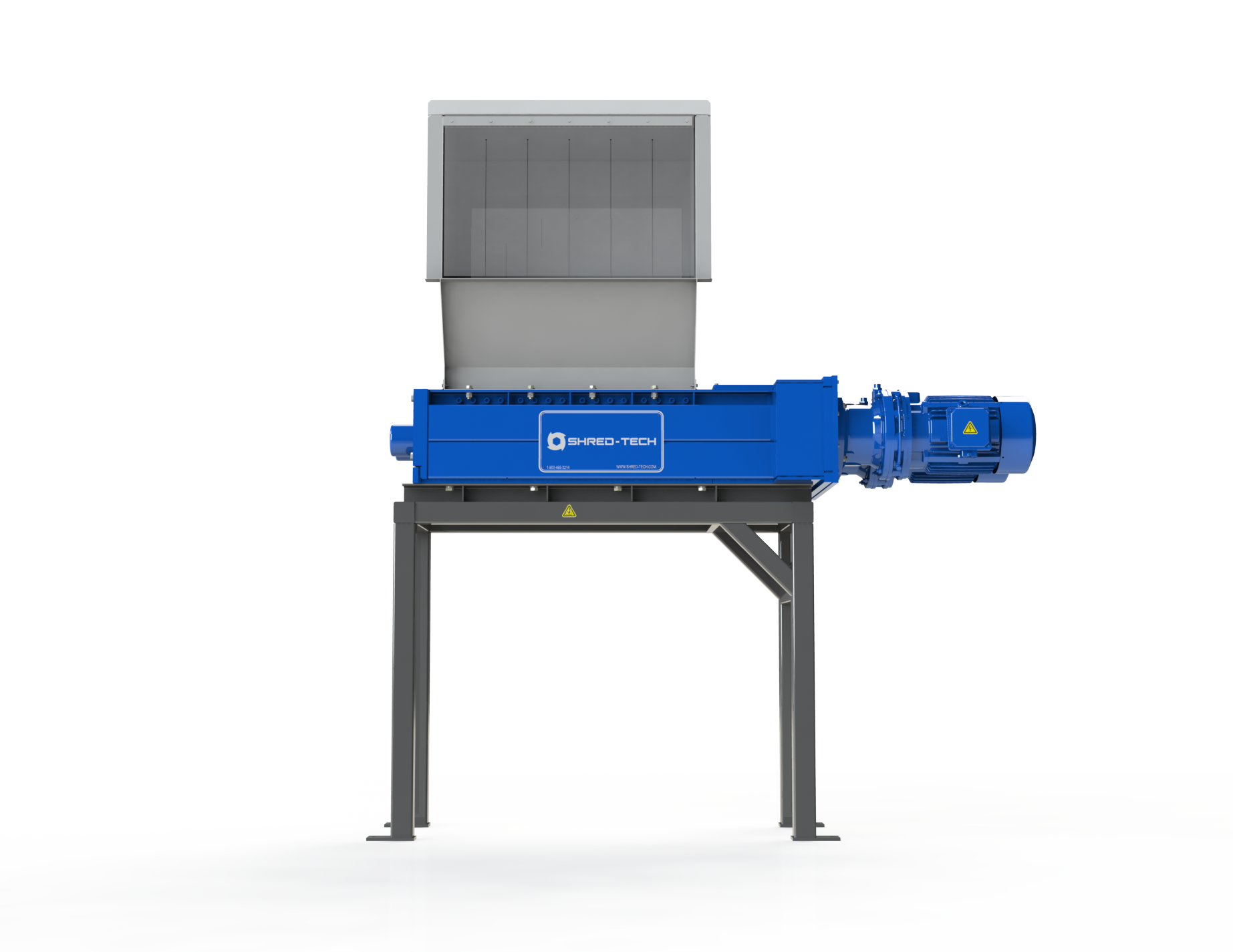

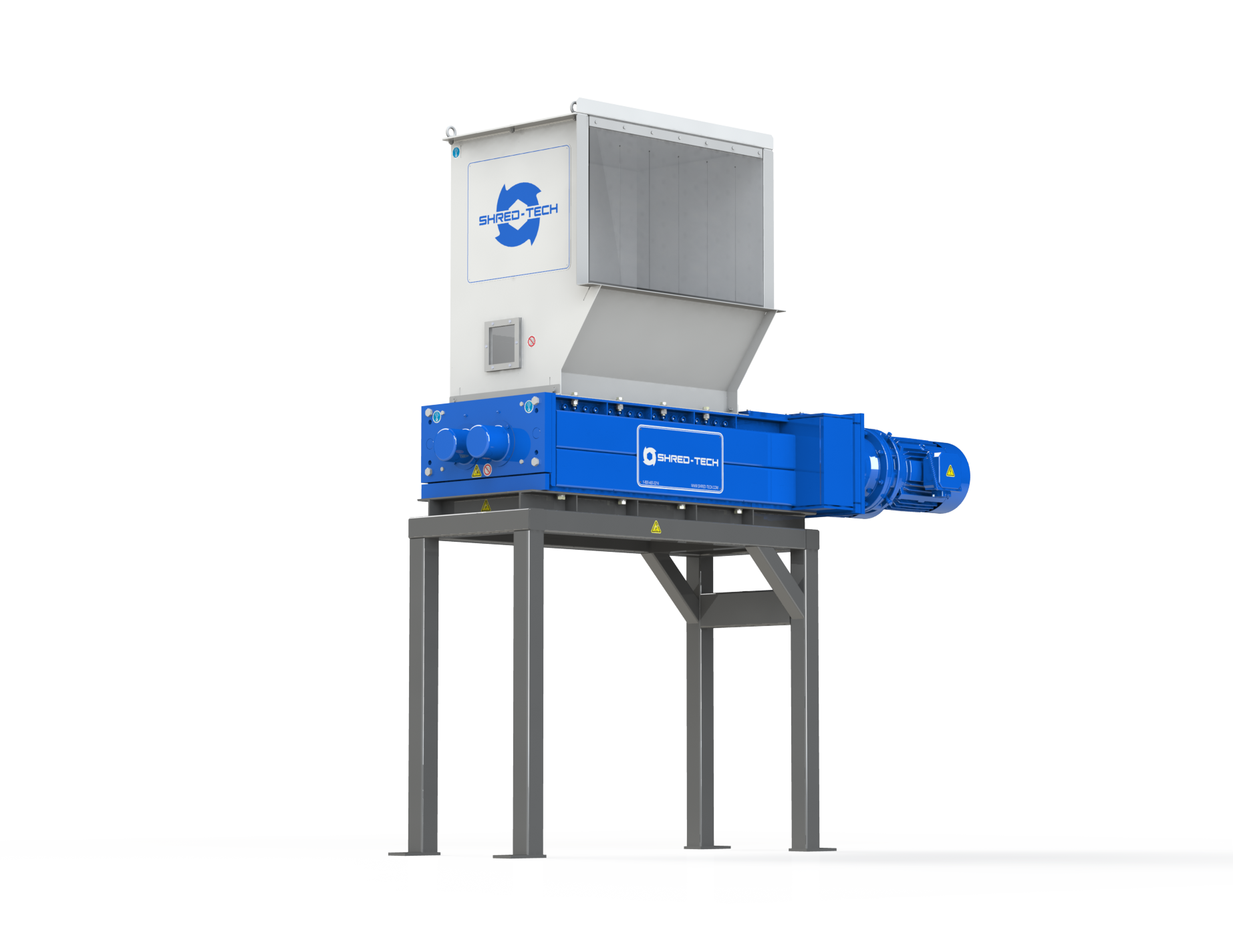

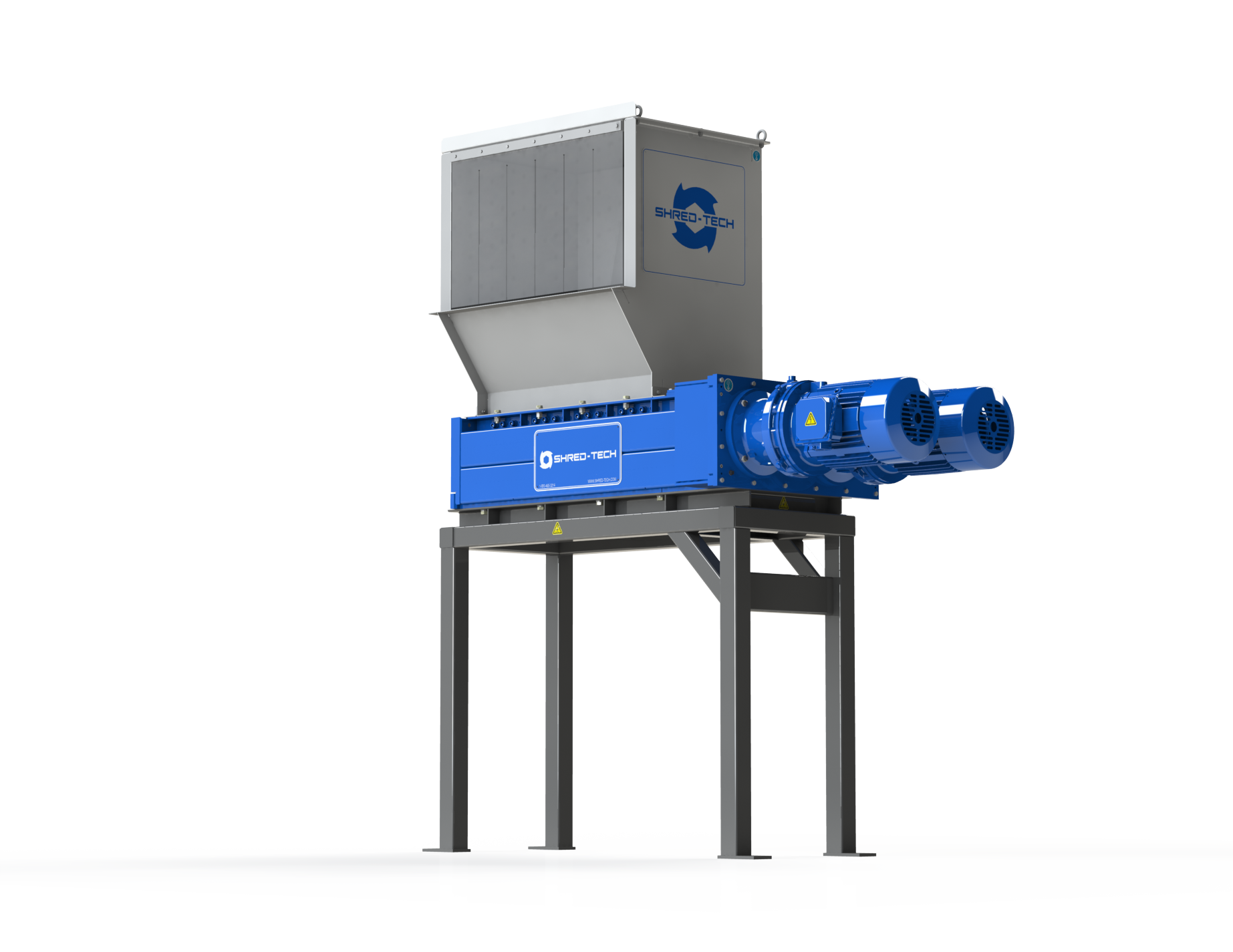

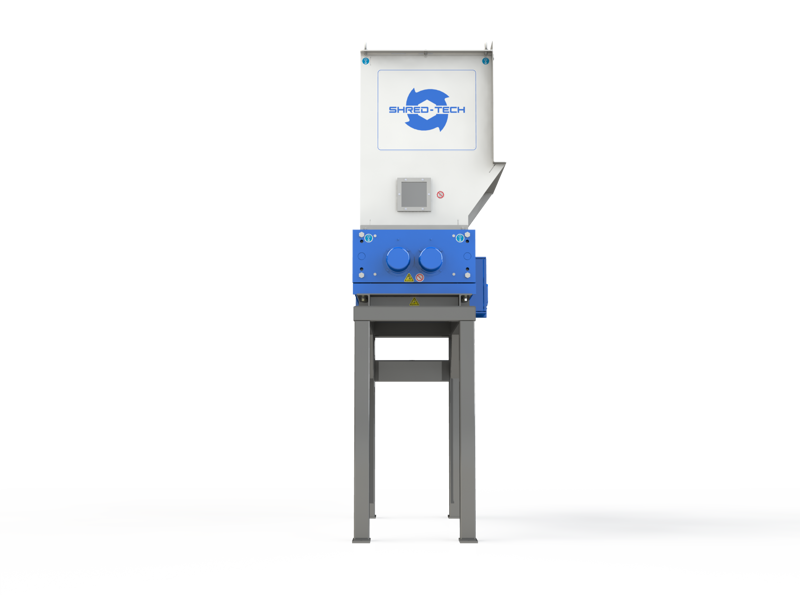

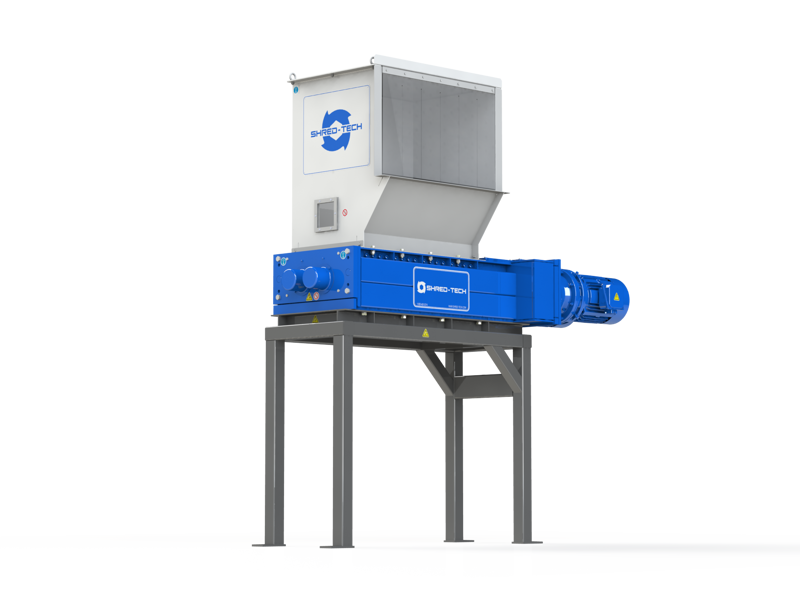

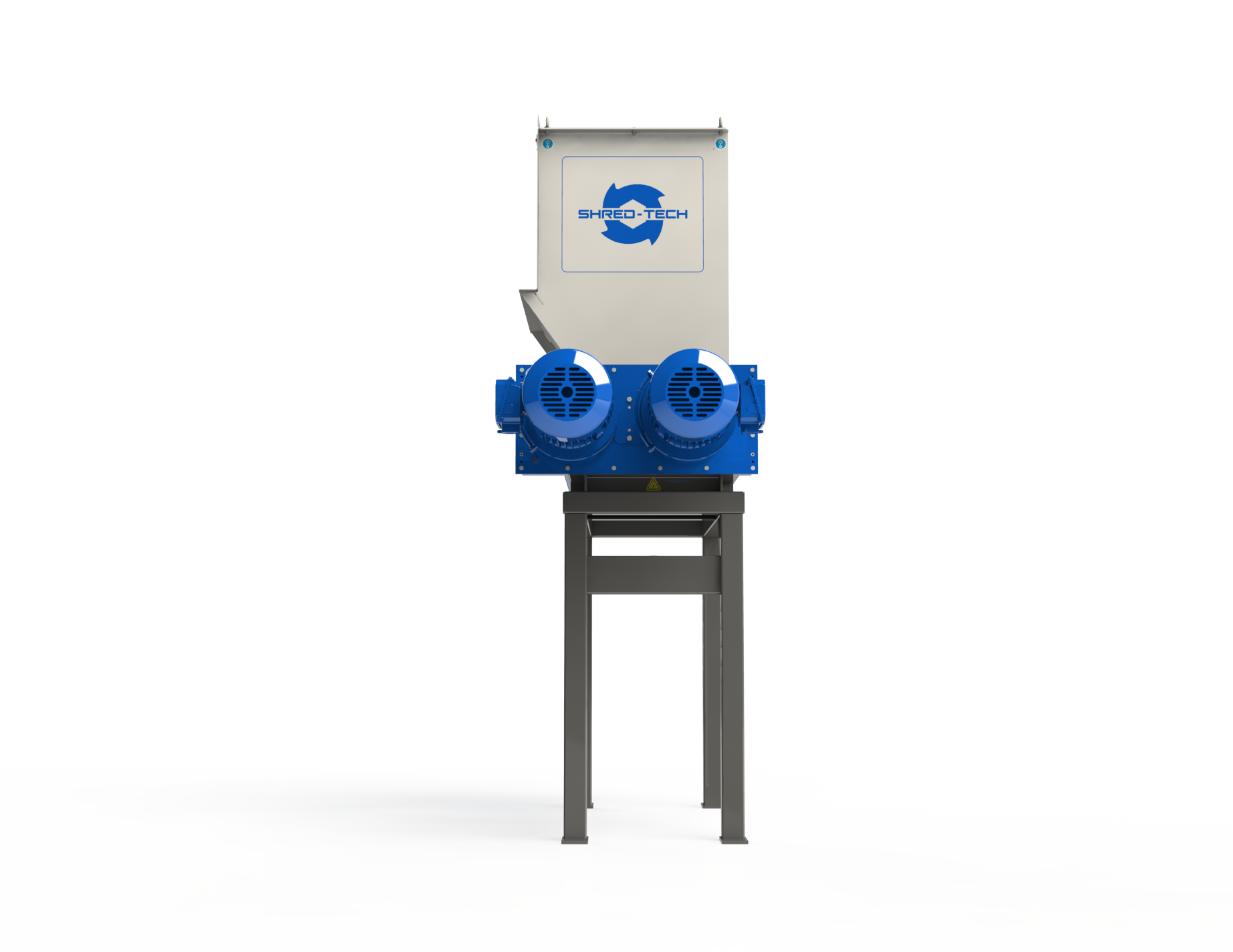

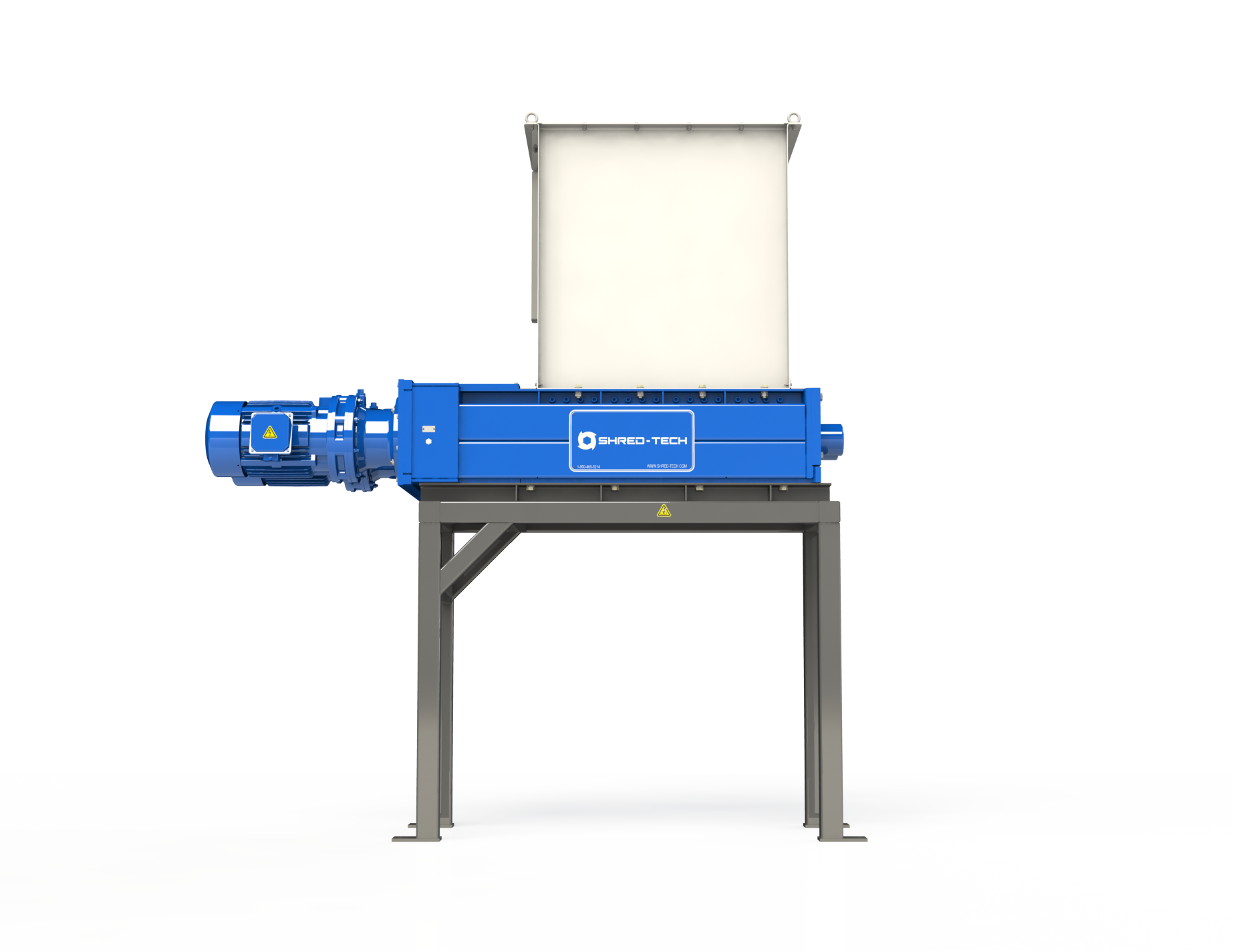

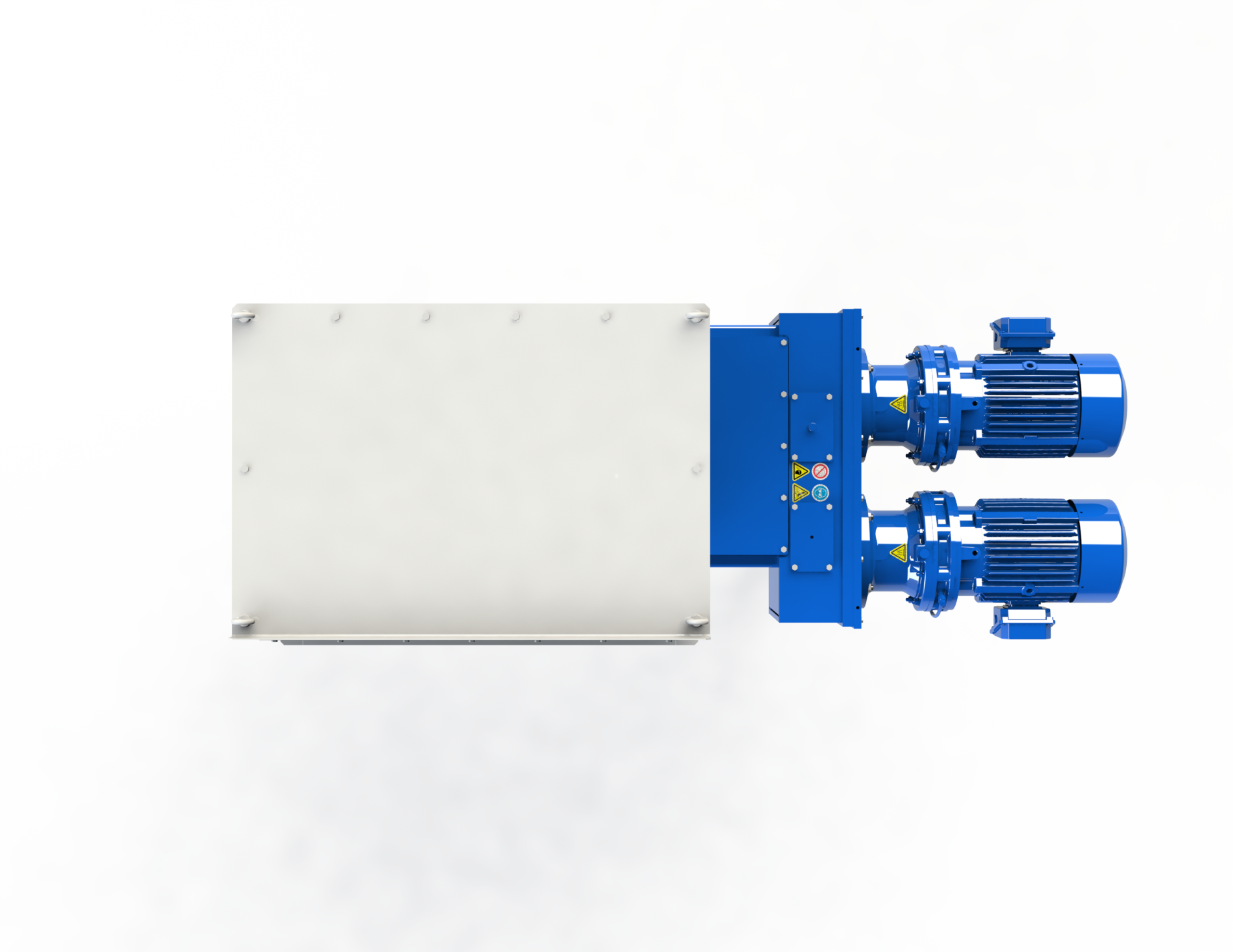

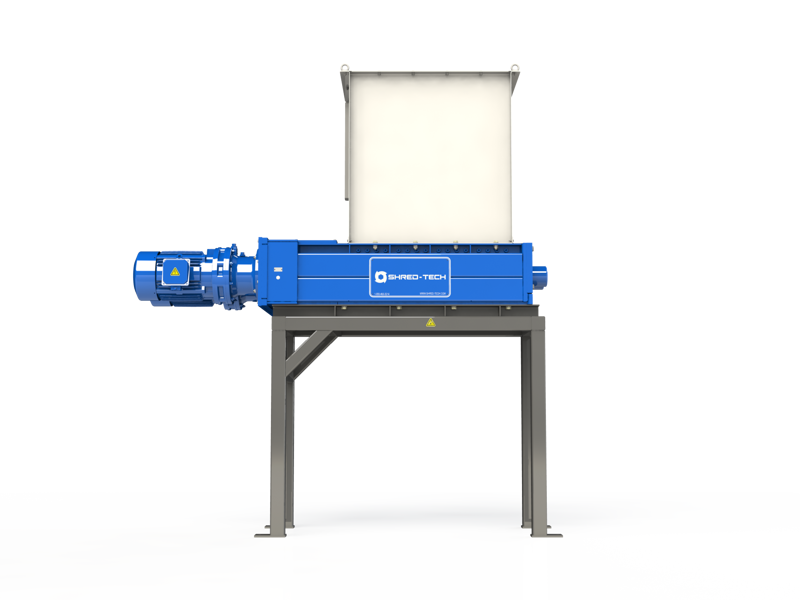

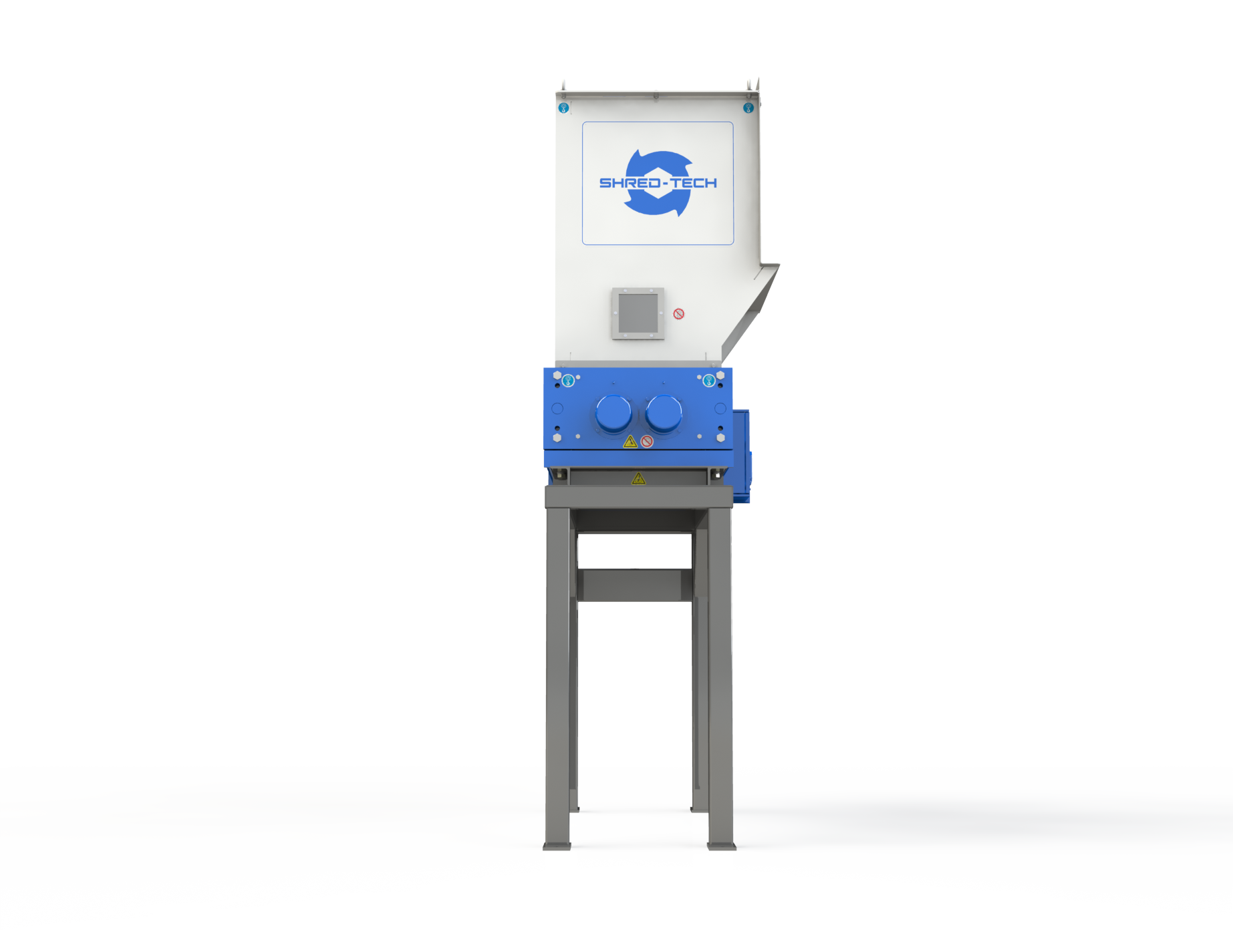

Shred-Tech ST-50

High performance and versatility are exactly what you can count on once you start utilizing the shredding power of the Shred-Tech® ST-50 Industrial Shredder. This solid and reliable shredder machine features a 25” x 40” shredding chamber, making it more than capable of tearing through bulky materials such as plastic parts, wood pallets, hazardous waste, electronic waste, and many more items. Your shredding company can greatly benefit from the durability and long serviceability of this industrial shredder. Designed for optimal shredding performance, the shredder features medium-duty throughput of between one to three tons per hour, which allows you to shred a higher volume of materials faster.

Our expert engineers have ensured that the ST-50 Industrial Shredder can effectively keep up with the increasing demands of the shredding industry. Not only will your company experience improved efficiencies, but you will also experience a reduced footprint for more opportunities for your business to diversify. For easier maintenance, Shred-Tech® has incorporated a number of refinements that also improve the overall durability of the machine, including an increase in shaft thickness, knife diameter, and spacer thickness in order to provide superior strength and higher service factors. The bulkhead walls and labyrinth barriers are located on each end of the cutting chamber for excellent bearing and seal protection. Bearing and seal replacement is easily done without the need of gearbox disassembly.

Standard Features for the ST-50

Shred-Tech®’s high-quality ST-50 Industrial Shredder comes complete with a variety of standard features that all work together to maximize the shredding performance of this industrial shredder. It is available with a wide range of gear reduced drive ratios fitted with single or dual 20 HP, 25 HP, or 30 HP electric motors that keep the machine functioning at optimal capacity. In addition to removable sectional cleaning fingers and a lightweight chamber plate, this shredder also features heavy-duty cutting knives, incredibly durable hex shafts, and a smart control panel.

Optional Extras

In order to fully optimize the serviceability and versatility of the ST-50 Industrial Shredder, we recommend you select from the following optional accessories we have available. Our engineers have created these accessories to provide unrelenting support to the rest of the shredder machine to take it beyond its base capabilities. Each accessory complements the industrial shredder for optimal usage, including the hopper, in-feed conveyor, out-feed conveyor, and stand. To learn more about how Shred-Tech® can provide you with even more optional accessories to create your ideal shredding solution, contact The Shred-Tech team today, which is on standby 24/7!

If you want to experience smoother high-volume material shredding with high-quality workmanship from Shred-Tech®, then we offer the hopper as an option for the ST-50. This extra heavy-duty hopper is designed to handle the job with efficient ease as it is wide enough to accept bulky products while remaining durable enough to withstand collisions and abrasions with rougher materials. Built to provide you with improved versatility and workflow, the hopper can be modified to meet your specifications and be perfectly suited to your applications.

For easier material management, we recommend that you choose to include either the in-feed conveyor, out-feed conveyor, or both. These conveyors are designed to automatically carry the materials to and from the shredder machine for superior efficiency and ease of loading and unloading. The in-feed conveyor helps with the loading process, keeping workers a safe distance away from the shredder as it rips through the materials. The out-feed conveyor then carries the shredded remains away from the shredder and can drop them into a bin or reservoir for collection, ensuring that the workflow stays moving as smoothly as possible.

For maximum support, we recommend that you install the stand to your ST-50 Industrial Shredder. This high-quality stand is engineered to provide high stability as it has the strength to support the entire shredder machine with ease. This helps get the shredder off the ground to create more clearance for the use of other equipment in your available facility space. In fact, downstream equipment, such as an out-feed conveyor, can be utilized to increase convenience and efficiency as shredded materials fall out of the shredder via gravity.

Technical Specification

  • Throughput: 1-3t/hr
  • Size of Material (LxW): 21" x 40"
  • Shred Size/Fraction Size: Strips (Inconsistent)
  • Drive: Electric
  • Number of Motors: 1 or 2
  • Knife Thickness: 5/8", 7/8", 1 3/16", 1 5/8"
  • Number of Knives: 64, 48, 32, 24
  • Knife Diameter: 10"
  • Hex Size: 3 3/8"
  • Distance Between Shafts: 7 1/2"
  • Cutting Chamber (LxW): 40" x 21"
  • Discharge Height: 40"
  • Hopper Height: 44"
  • Application: Wood
  • Application: Plastic
  • Application: Metal
  • Application: E-Waste
  • Application: Medical Waste
  • Application: Textile & Carpet
  • Application: Aluminium
  • Application: General Waste
  • Application: Computers
  • Application: Batteries
  • Application: Alkaline Batteries
  • Application: Nickel Batteries
  • Application: Lead Batteries
  • Application: EV Batteries
  • Application: Lithium-Ion Batteries
  • Shredder Horsepower: 40-50 HP
